Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Partially drain the cooling system. Refer to Draining and Filling Cooling System .
Position the J 38185 to the clamps in order to remove the outlet radiator hose and outlet heater hose from the thermostat housing.

Fig 1: Identifying J 38185
Courtesy of GENERAL MOTORS CORP.
Remove the thermostat housing bolts.
Remove the thermostat housing/thermostat from the cylinder head.

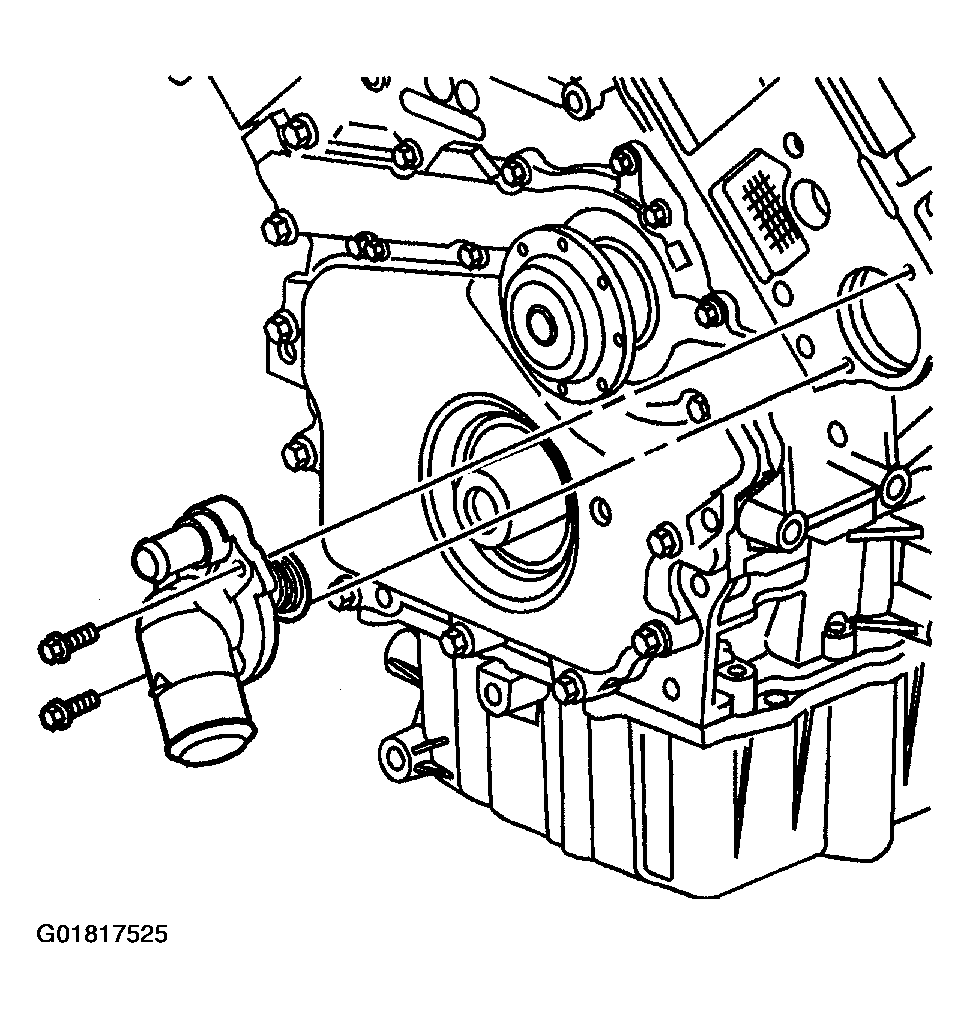

Fig 2: Removing Thermostat Housing
Courtesy of GENERAL MOTORS CORP.
