Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the J 38185  to the clamp in order to connect the surge tank outlet hose (2) to the heater pipe (3).
  2. Position the J 38185  to the clamp in order to connect the surge tank outlet hose (2) to the surge tank (1).
  3. Fill the cooling system. Refer to Draining and Filling Cooling System .

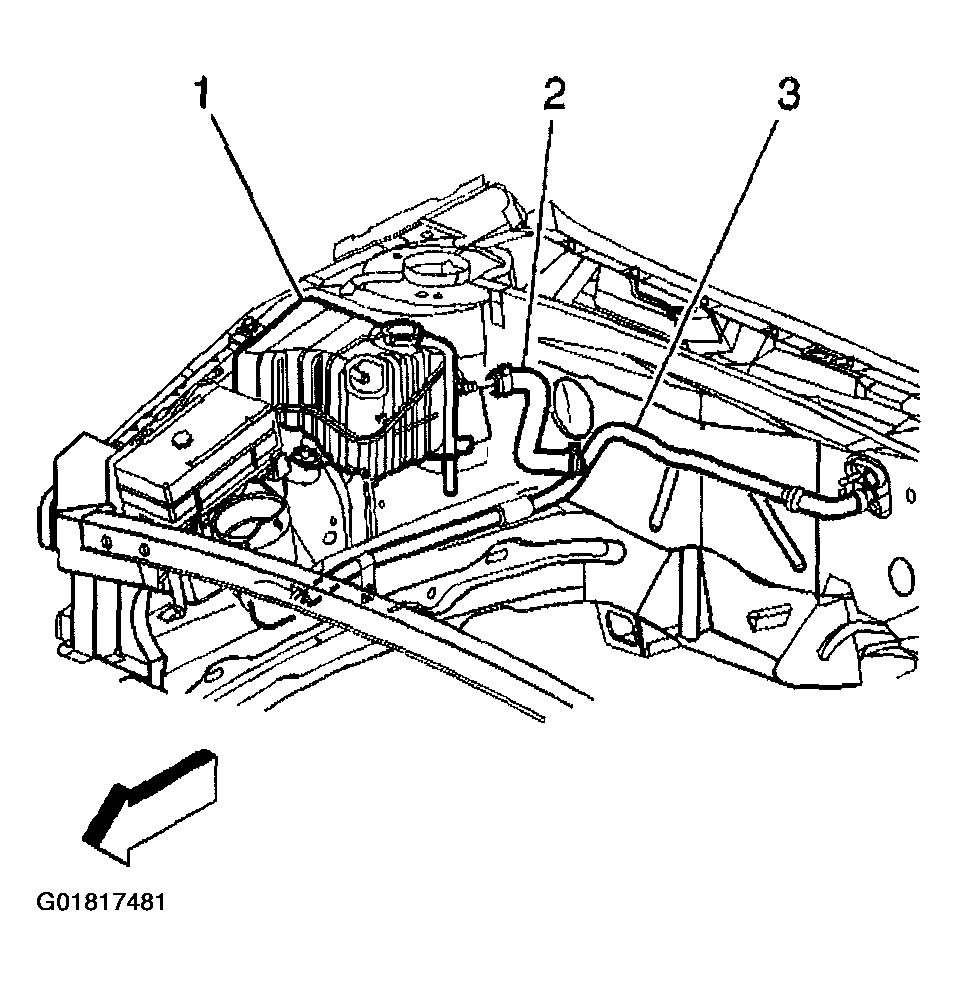

    Fig 1: Installing Surge Tank Outlet Hose
    G01817481Courtesy of GENERAL MOTORS CORP.
