Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the surge tank outlet hose (1) over the studs at the cowl panel.
  2. Install the 2 push nuts (2) attaching the surge tank outlet hose (1) to the cowl panel.

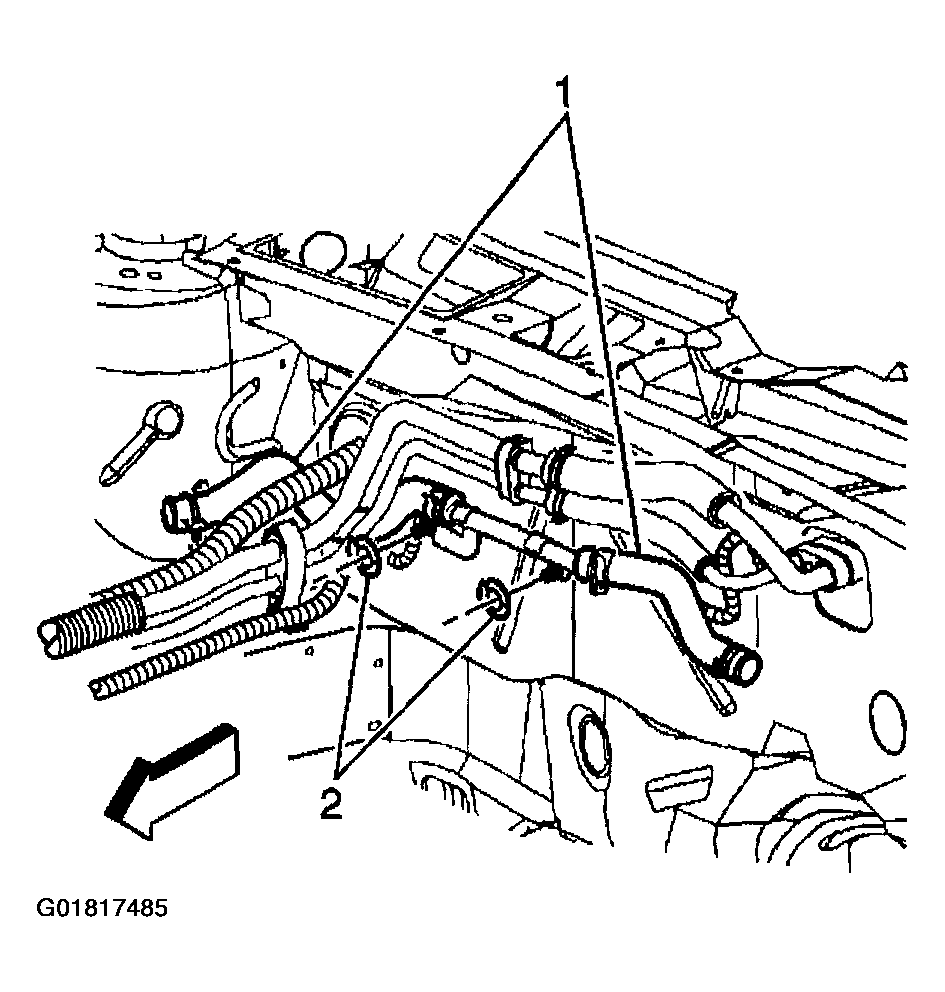

    Fig 1: Installing Surge Tank Outlet Hose
    G01817485Courtesy of GENERAL MOTORS CORP.
  3. Position the J 38185  (3) to the clamp in order to connect the surge tank outlet hose (1) to the heater pipe (2).

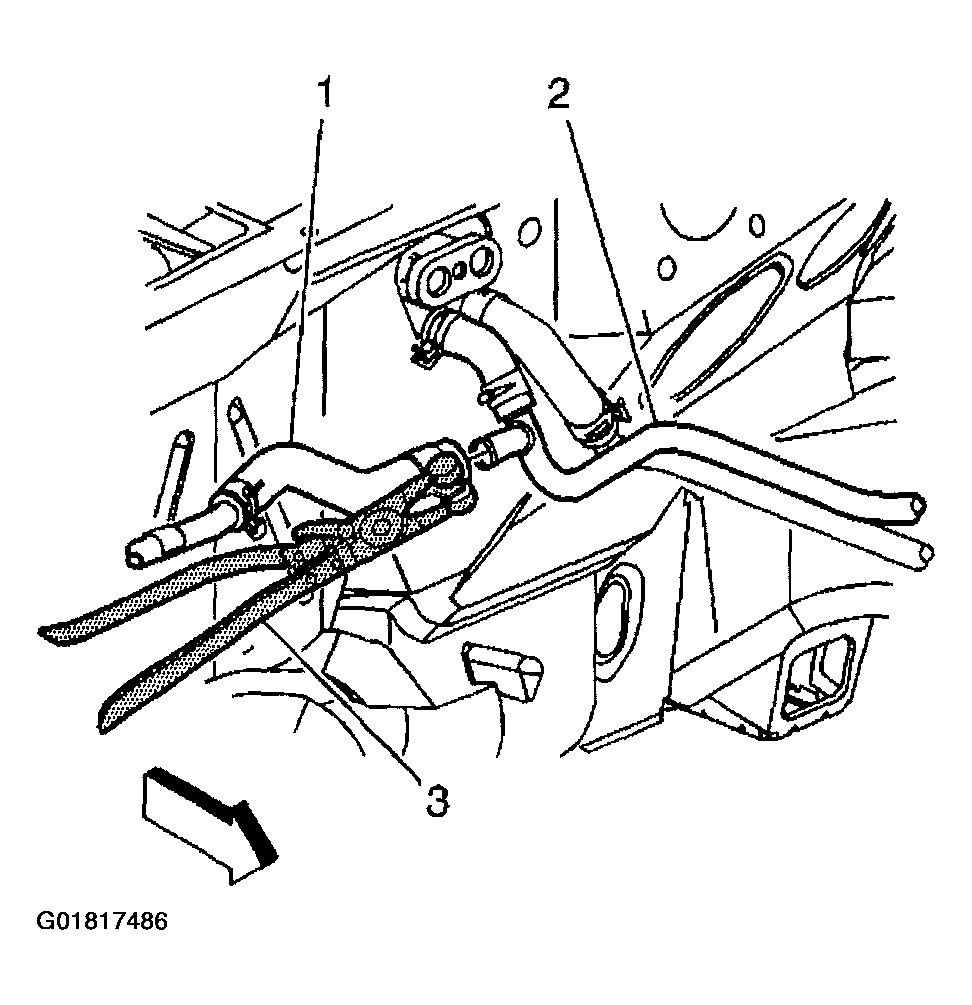

    Fig 2: Identifying J 38185
    G01817486Courtesy of GENERAL MOTORS CORP.
  4. Position the J 37097-A  (3) to the clamp in order to connect the surge tank outlet hose (2) to the surge tank (1).
  5. Fill the cooling system. Refer to Draining and Filling Cooling System .

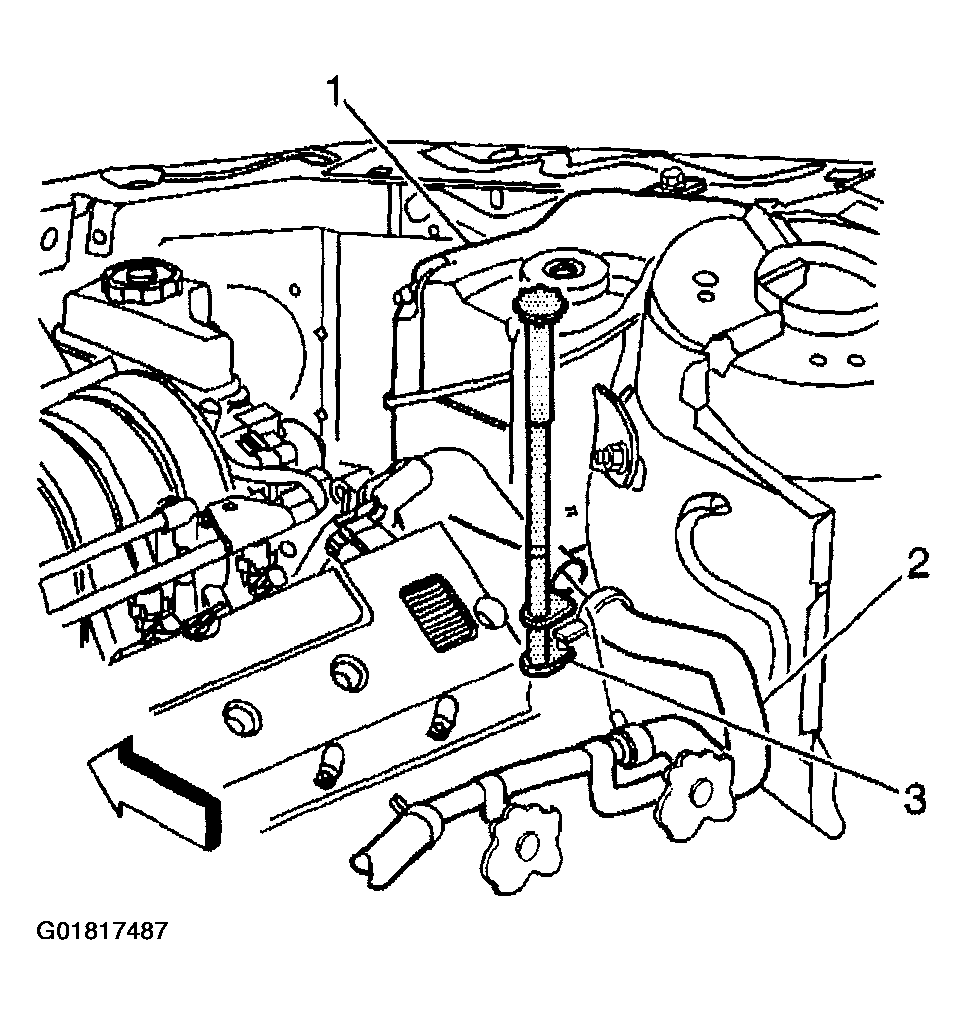

    Fig 3: Identifying J 37097-A
    G01817487Courtesy of GENERAL MOTORS CORP.
