Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Disconnect the surge tank inlet hose from the surge tank.

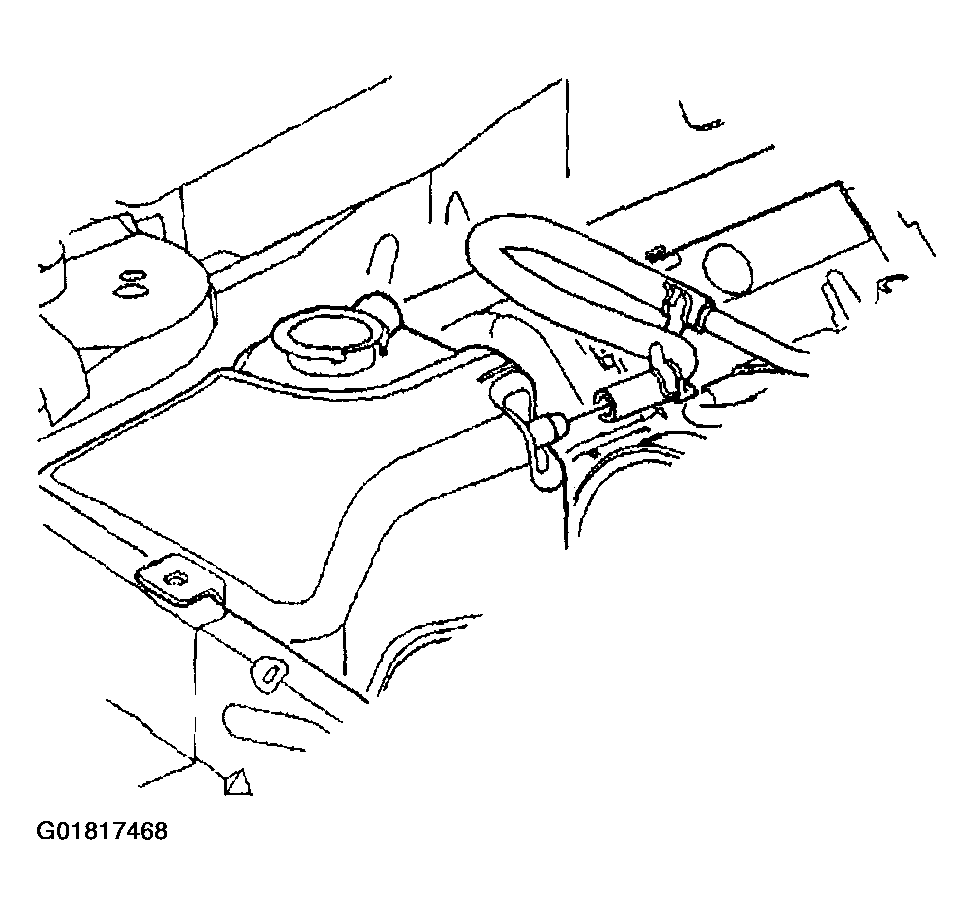

    3. Fig 1: Disconnecting Surge Tank Inlet Hose
    G01817468Courtesy of GENERAL MOTORS CORP.
  3. Remove the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT .
  4. Disconnect the surge tank inlet hose from the engine.
  5. Remove the bolt attaching the pipe assembly to the engine.
  6. Remove the surge tank inlet pipe assembly.

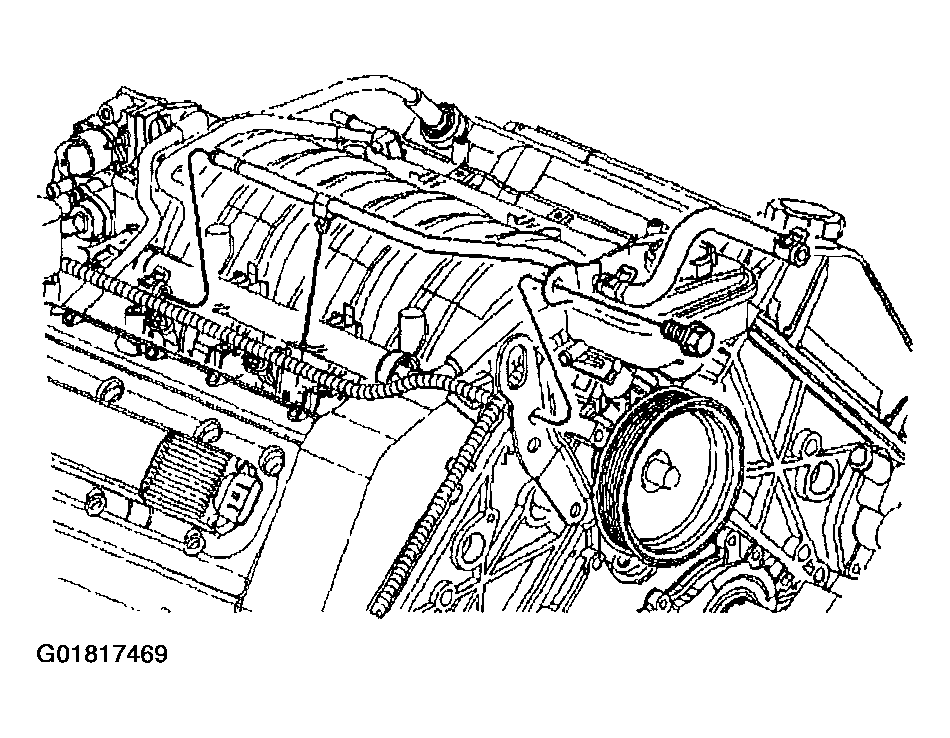

    Fig 2: Removing Surge Tank Inlet Pipe Assembly
    G01817469Courtesy of GENERAL MOTORS CORP.
