Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the surge tank inlet pipe assembly to the engine.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the bolt attaching the pipe assembly to the engine.

    Tighten

    Tighten the surge tank inlet pipe bolt to 9 N.m (80 in lbs).

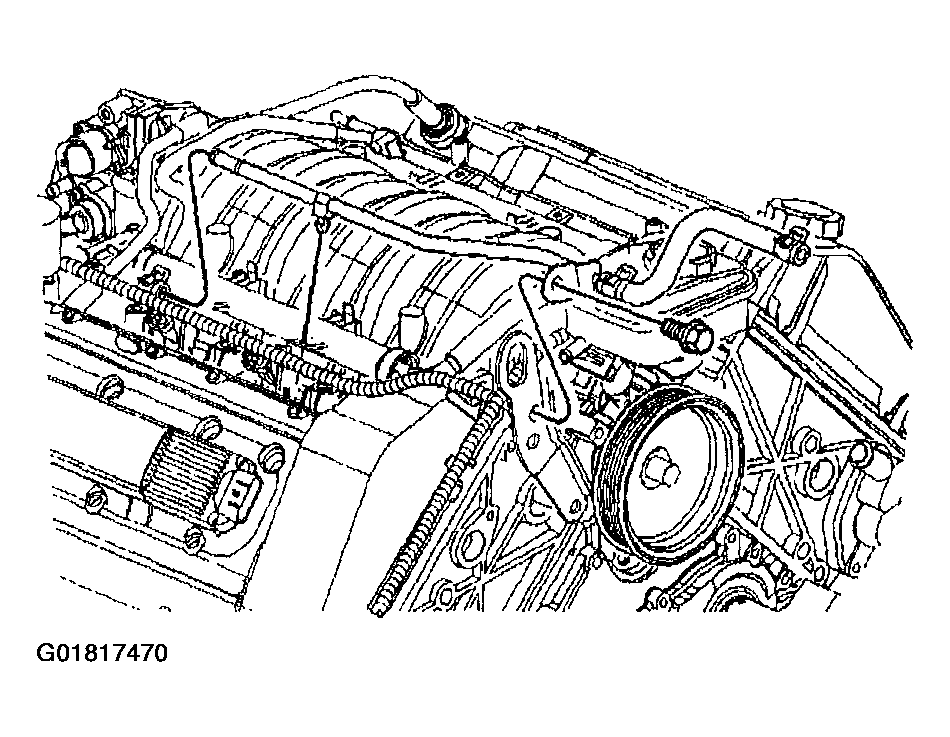

    Fig 1: Installing Surge Tank Inlet Pipe Assembly
    G01817470Courtesy of GENERAL MOTORS CORP.
  3. Connect the surge tank inlet hose to the surge tank.
  4. Install the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT .
  5. Fill the cooling system. Refer to Draining and Filling Cooling System .

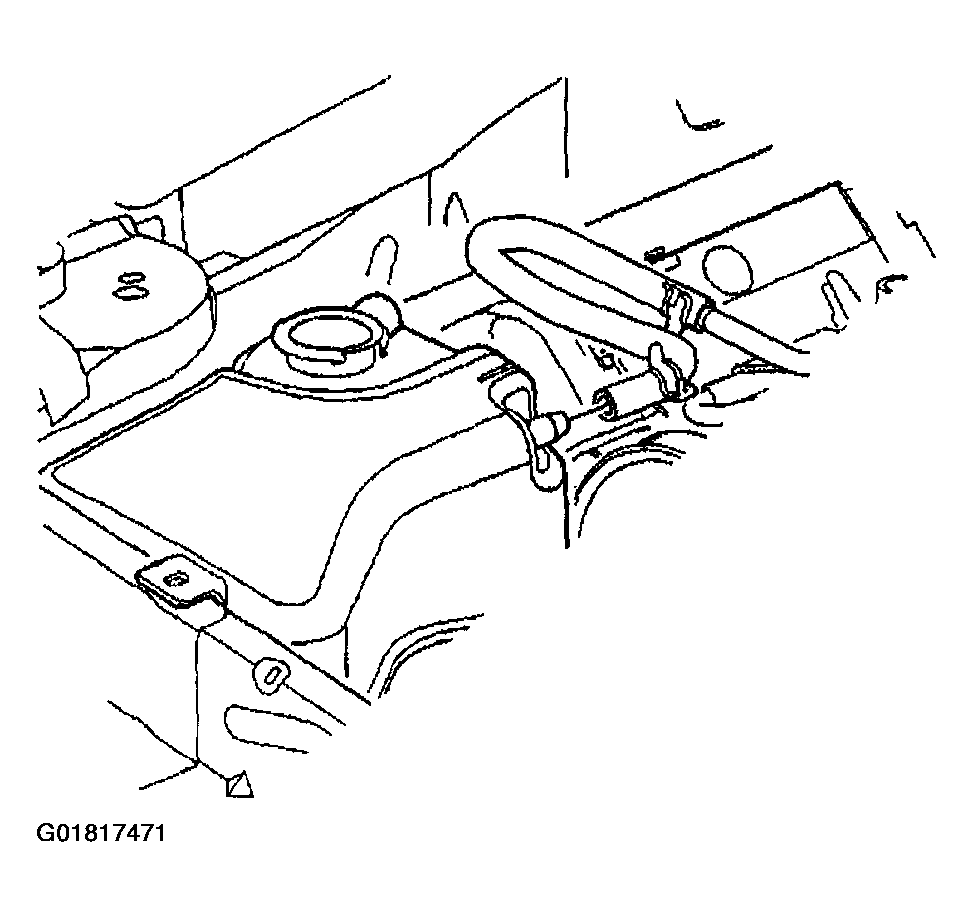

    Fig 2: Connecting Surge Tank Inlet Hose
    G01817471Courtesy of GENERAL MOTORS CORP.
