Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT .
Partially drain the Cooling system. Refer to Draining and Filling Cooling System .
Disconnect the surge tank inlet hose from the surge tank.

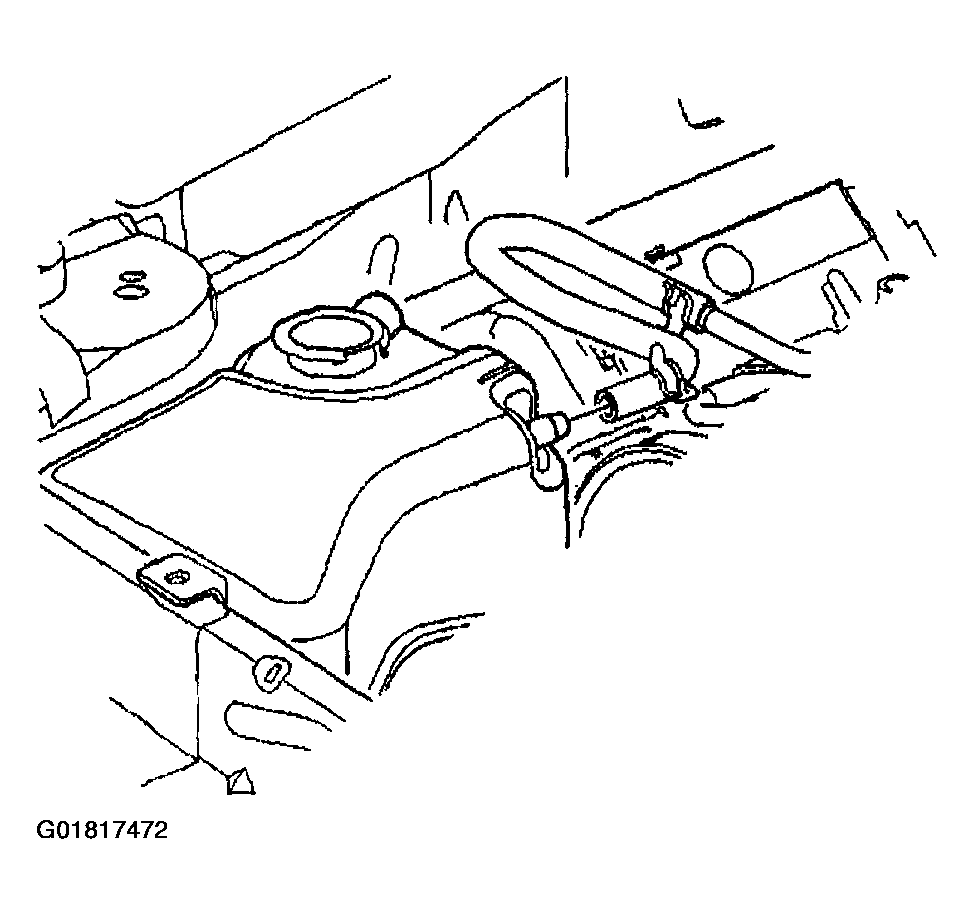

Fig 1: Disconnecting Surge Tank Inlet Hose From Surge Tank
Courtesy of GENERAL MOTORS CORP.
Remove the PCV fresh air tube (1).

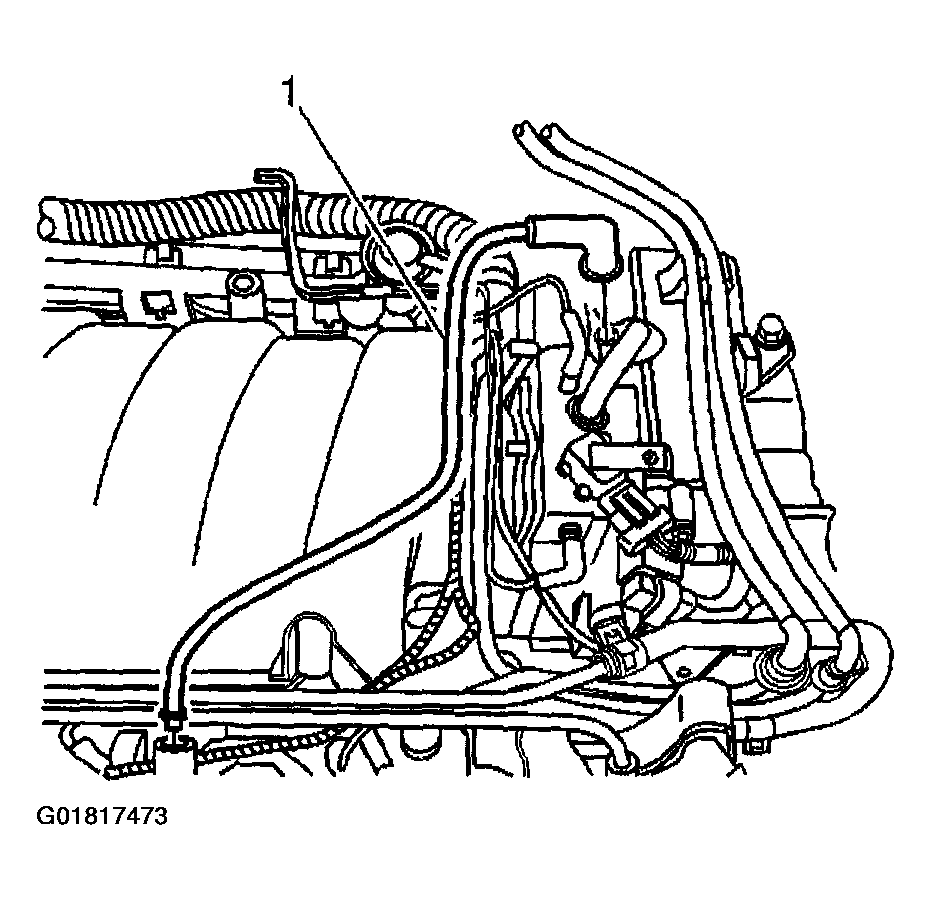

Fig 2: Removing PCV Fresh Air Tube
Courtesy of GENERAL MOTORS CORP.
Disconnect the surge tank inlet hose from the engine.

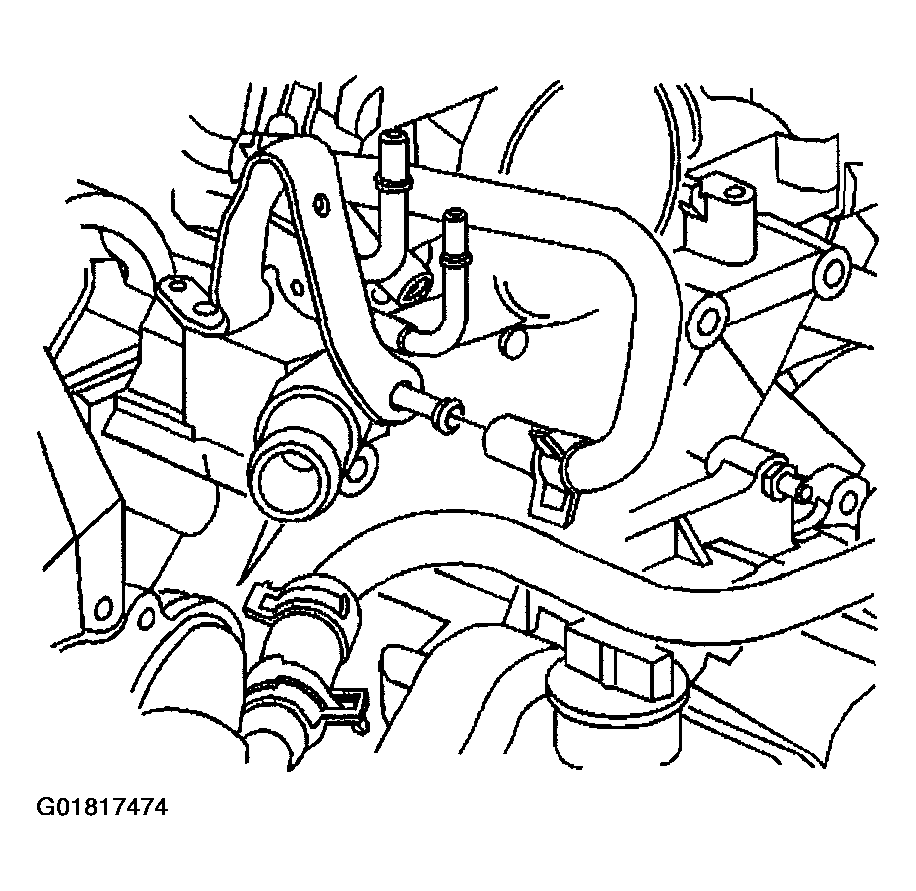

Fig 3: Disconnecting Surge Tank Inlet Hose From Engine
Courtesy of GENERAL MOTORS CORP.
Remove the 2 push nuts attaching the pipe to the engine.
Remove the surge tank inlet hose/pipe assembly from the vehicle.

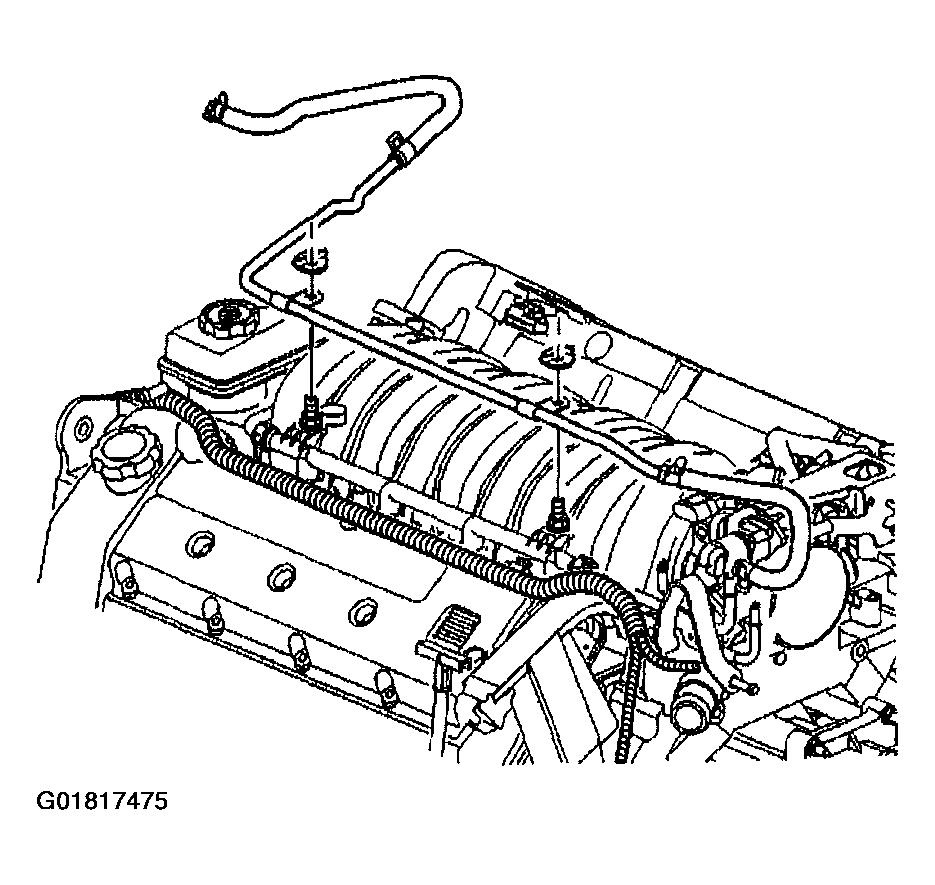

Fig 4: Removing Surge Tank Inlet Hose/Pipe Assembly
Courtesy of GENERAL MOTORS CORP.
