Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Install the surge tank inlet hose/pipe assembly to the vehicle.
Install the 2 push nuts attaching the pipe to the engine.

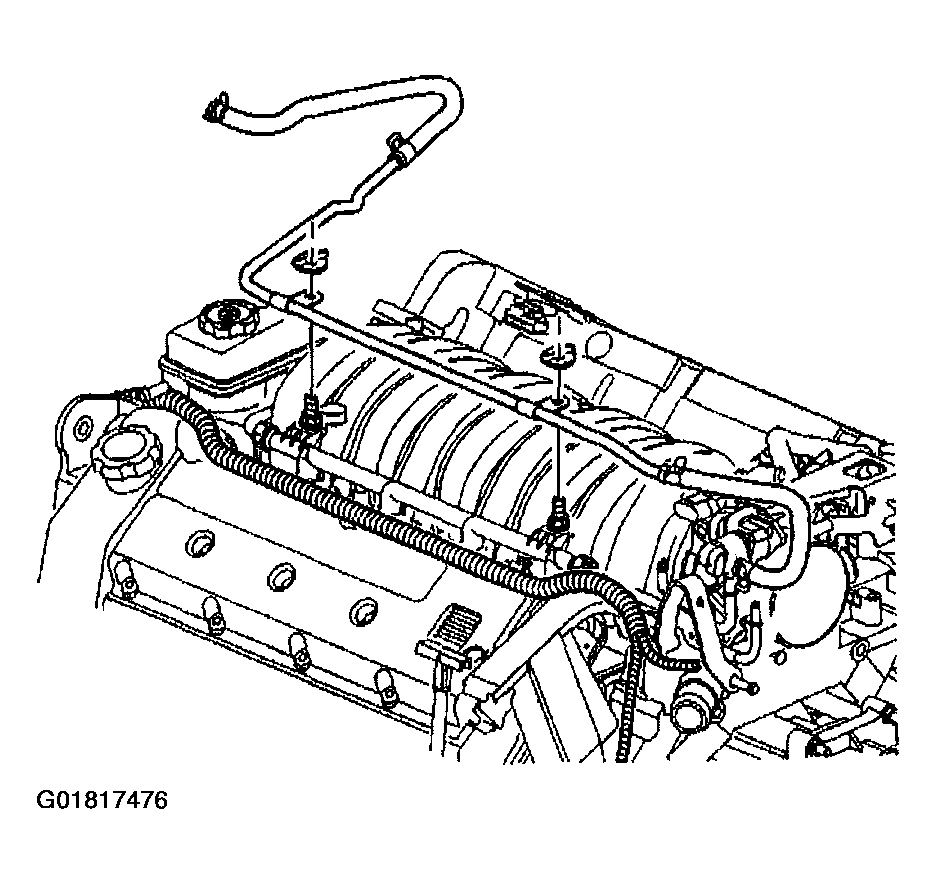

Fig 1: Installing Surge Tank Inlet Hose/Pipe Assembly
Courtesy of GENERAL MOTORS CORP.
Connect the surge tank inlet hose to the engine.

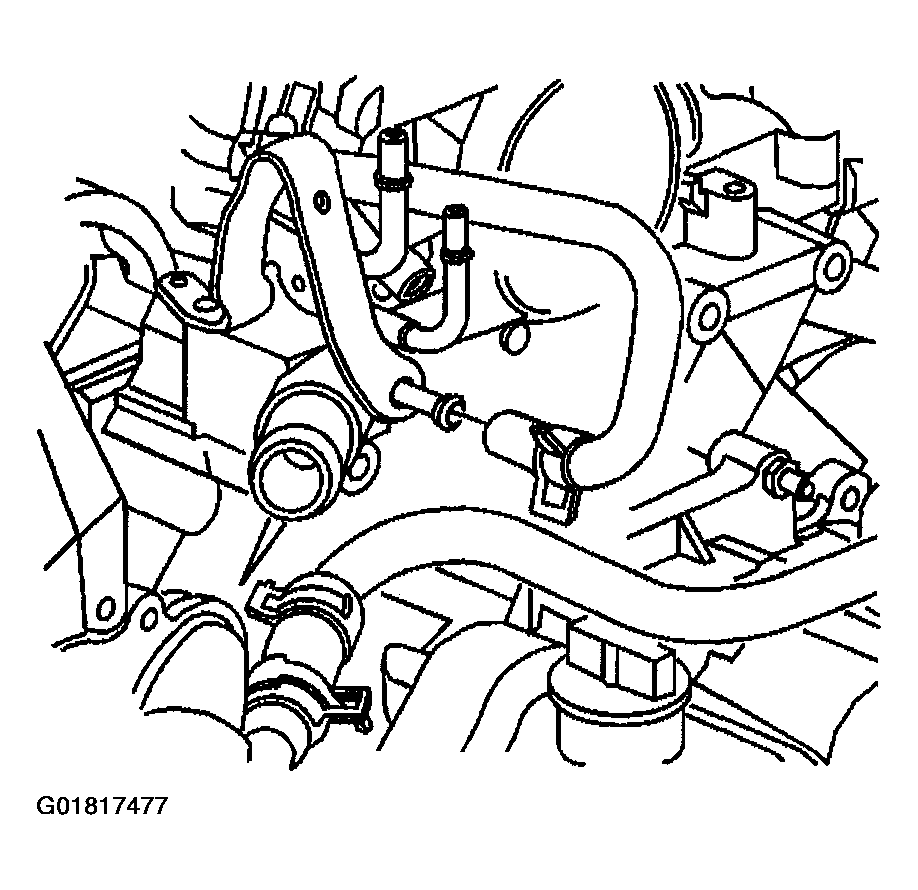

Fig 2: Connecting Surge Tank Inlet Hose To Engine
Courtesy of GENERAL MOTORS CORP.
Install the PCV fresh air tube (1).

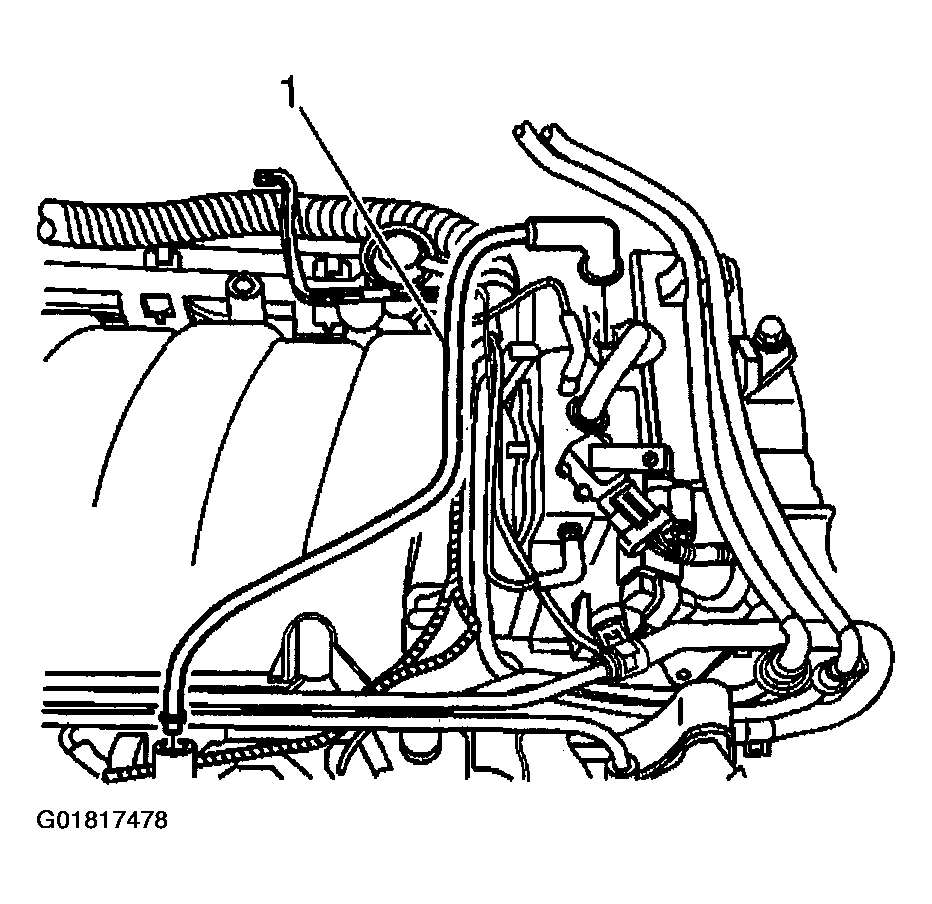

Fig 3: Installing PCV Fresh Air Tube
Courtesy of GENERAL MOTORS CORP.
Connect the surge tank inlet hose to the surge tank.

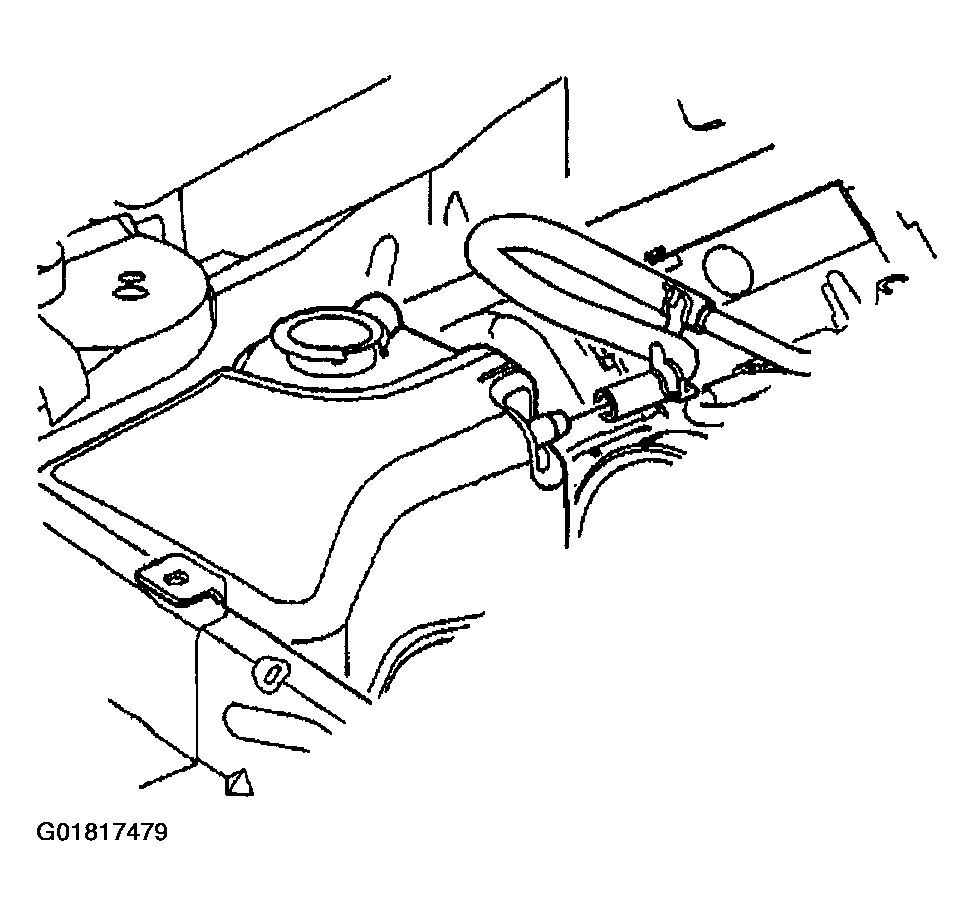

Fig 4: Connecting Surge Tank Inlet Hose To Surge Tank

Courtesy of GENERAL MOTORS CORP.

Fill the cooling system. Refer to Draining and Filling Cooling System .
Install the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT
