Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Connect the radiator hose to the radiator.
Using the J 38185 to reposition the clamp.

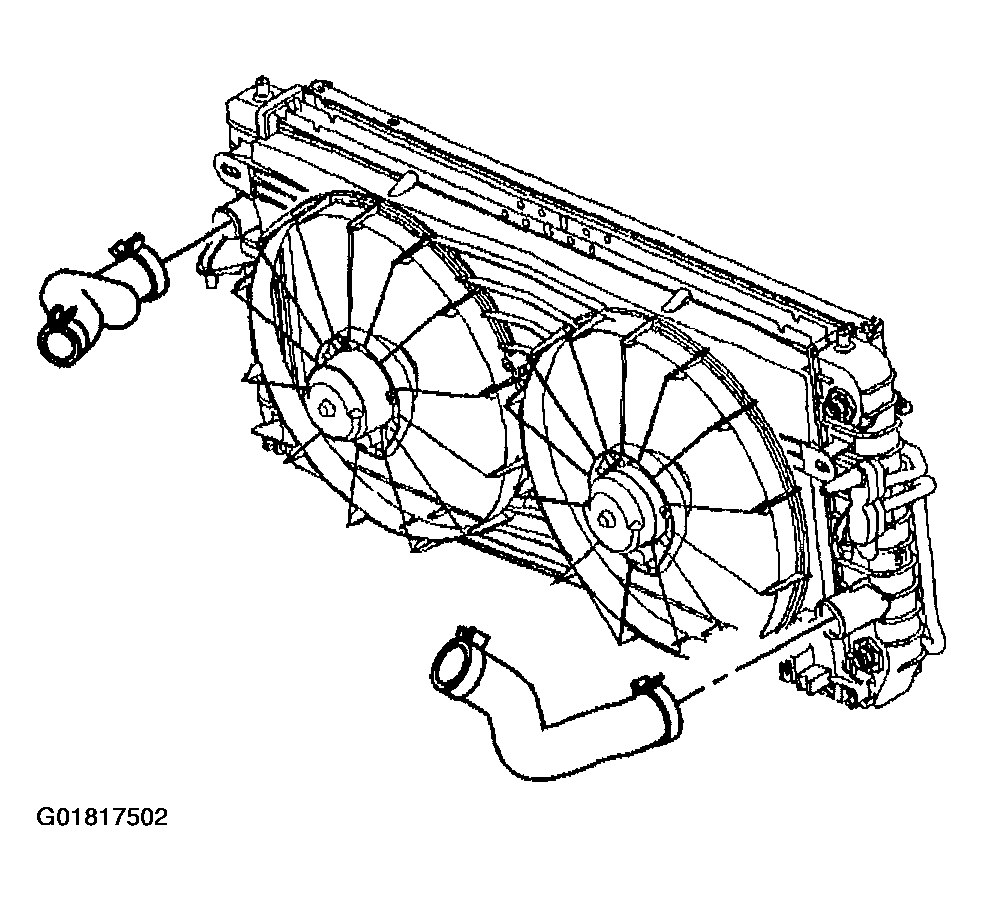

Fig 1: Installing Outlet Radiator Hose
Courtesy of GENERAL MOTORS CORP.
Connect the outlet radiator hose (1) to the thermostat housing.
Using the J 38185 reposition the clamp.
Fill the cooling system. Refer to Draining and Filling Cooling System .

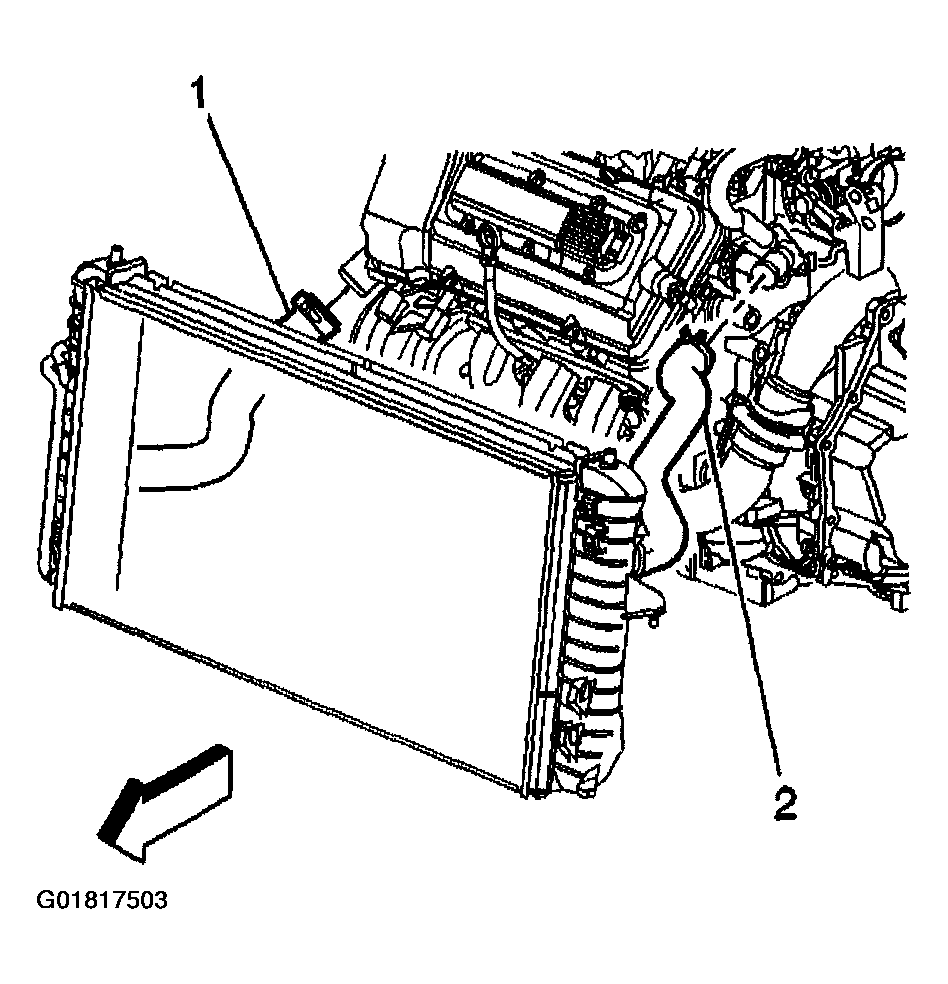

Fig 2: Locating Outlet Radiator Hose
Courtesy of GENERAL MOTORS CORP.
