Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly. .
  2. Drain the cooling system. Refer to Draining and Filling Cooling System . .
  3. Using the J 37097-A  loosen and move the outlet radiator hose clamp (1) at the radiator.
  4. Remove the outlet radiator hose from the radiator.

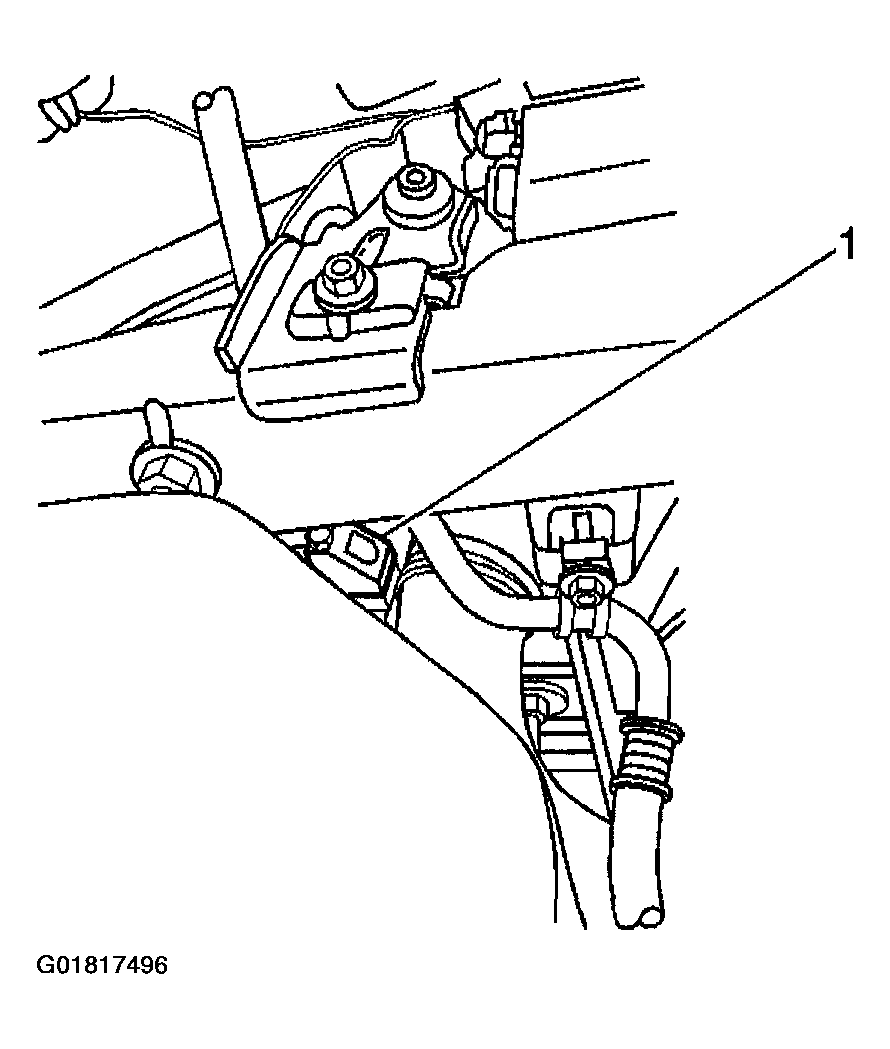

    Fig 1: Locating Outlet Radiator Hose Clamp
    G01817496Courtesy of GENERAL MOTORS CORP.
  5. Using the J 38185  loosen and move the outlet radiator hose clamp at the engine.
  6. Remove the outlet radiator hose from the engine.

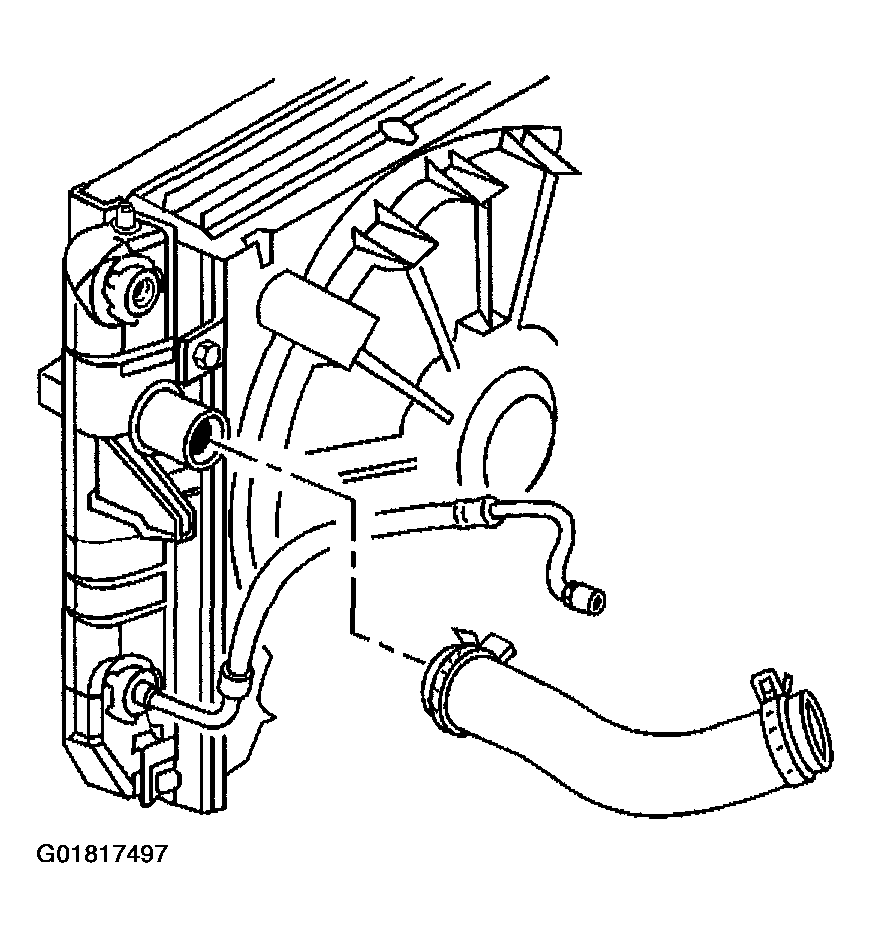

    Fig 2: Removing Outlet Radiator Hose
    G01817497Courtesy of GENERAL MOTORS CORP.
