Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the outlet radiator hose to the engine.
  2. Using the J 37097-A  reposition the outlet radiator hose clamp.

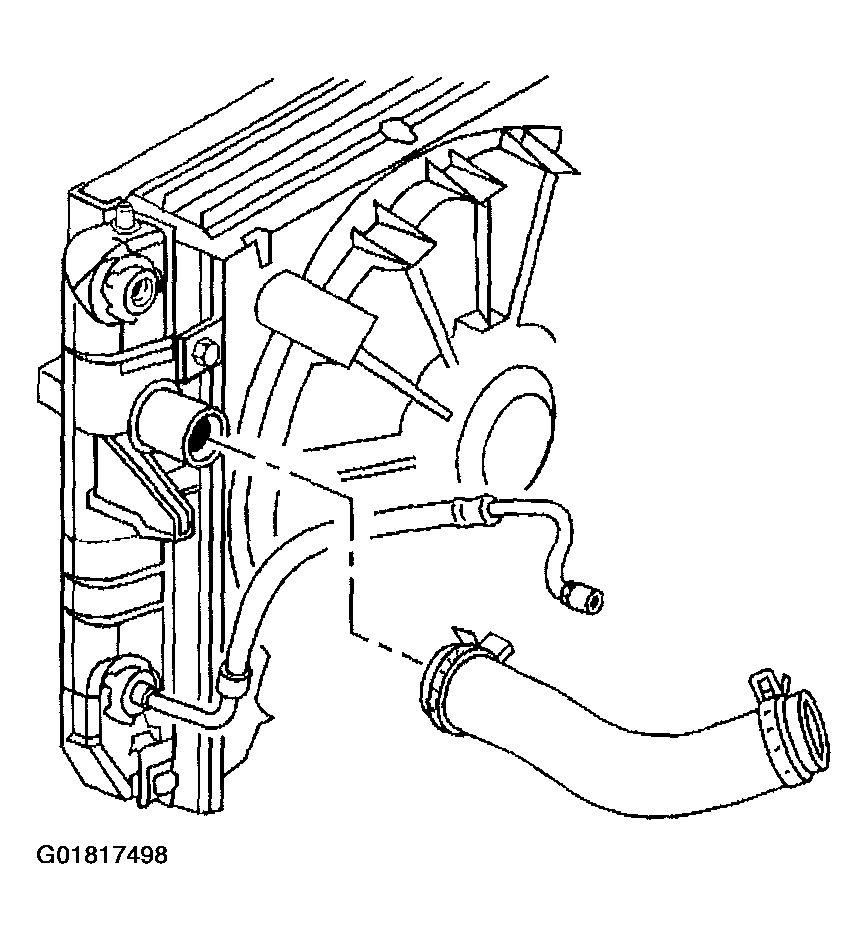

    Fig 1: Installing Outlet Radiator Hose
    G01817498Courtesy of GENERAL MOTORS CORP.
  3. Install the outlet radiator hose to the radiator.
  4. Using the J 37097-A  reposition the outlet radiator hose clamp (1).
  5. Install the air cleaner assembly.
  6. Fill the cooling system. Refer to Draining and Filling Cooling System .

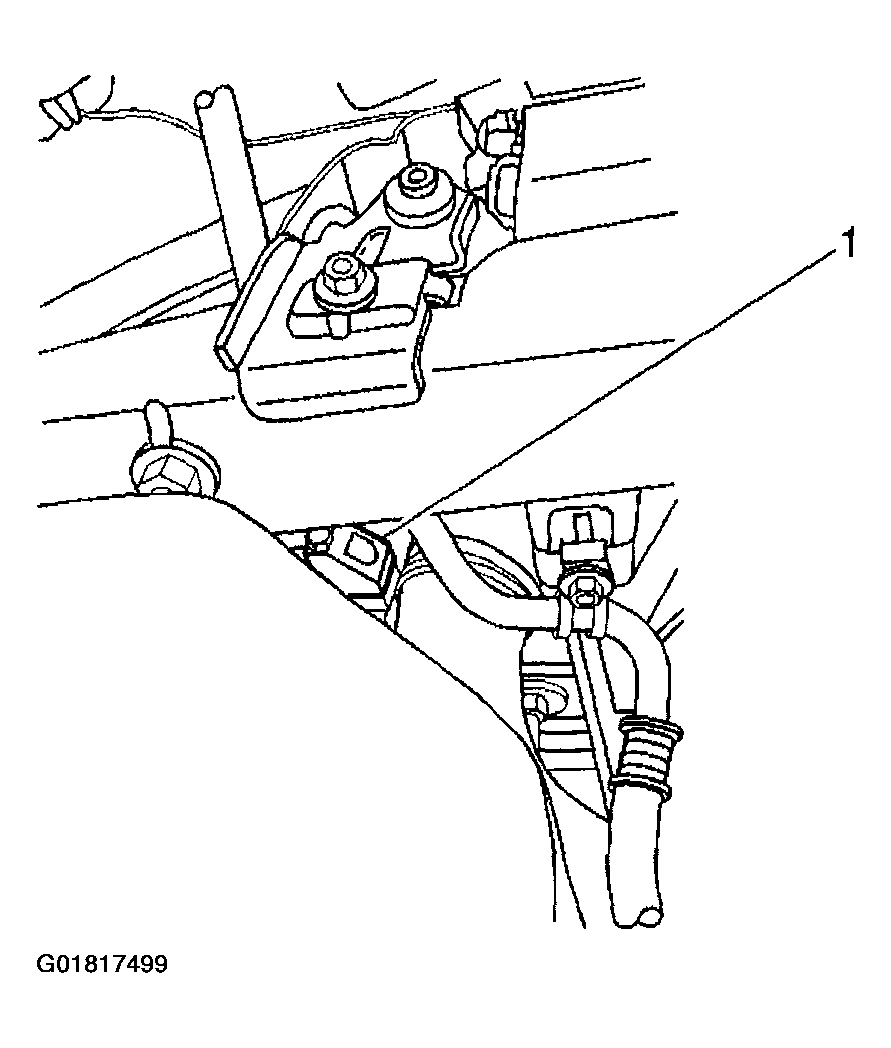

    Fig 2: Locating Outlet Radiator Hose Clamp
    G01817499Courtesy of GENERAL MOTORS CORP.
