Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to Draining and Filling Cooling System .
Position the J 38185 to the clamp in order to remove the inlet radiator hose (2).
Disconnect the hose.

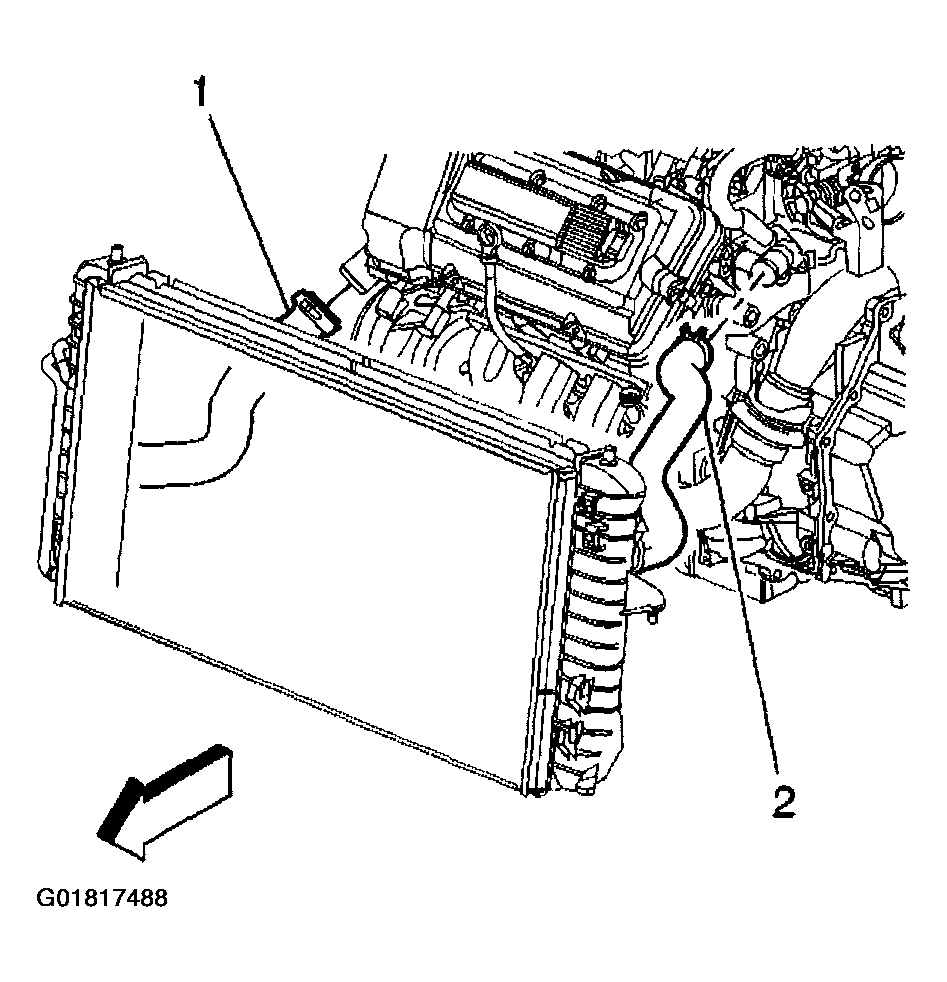

Fig 1: Disconnecting Inlet Radiator Hose
Courtesy of GENERAL MOTORS CORP.
Position the J 38185 to the clamp in order to remove the inlet radiator hose.
Disconnect the hose.
Remove the radiator hose.

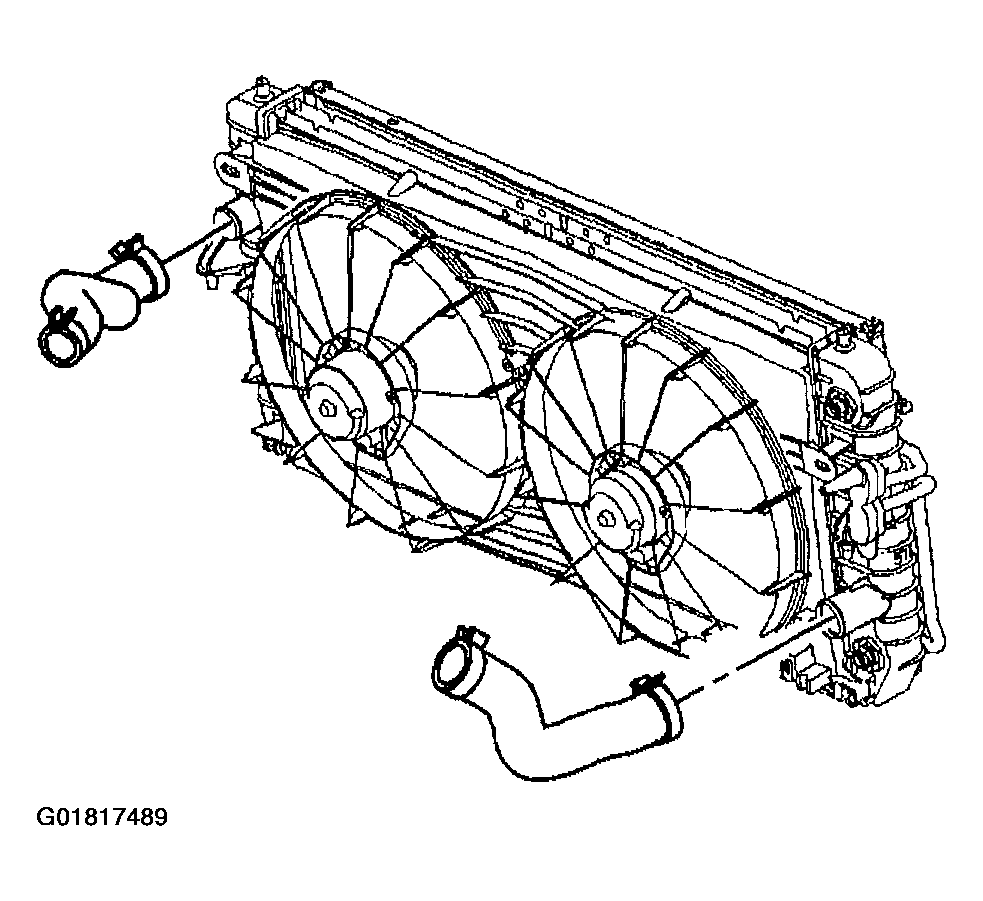

Fig 2: Removing Radiator Hose
Courtesy of GENERAL MOTORS CORP.
