Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator hose.
  2. Connect the radiator hose.
  3. Using the J 38185  reposition the clamp.

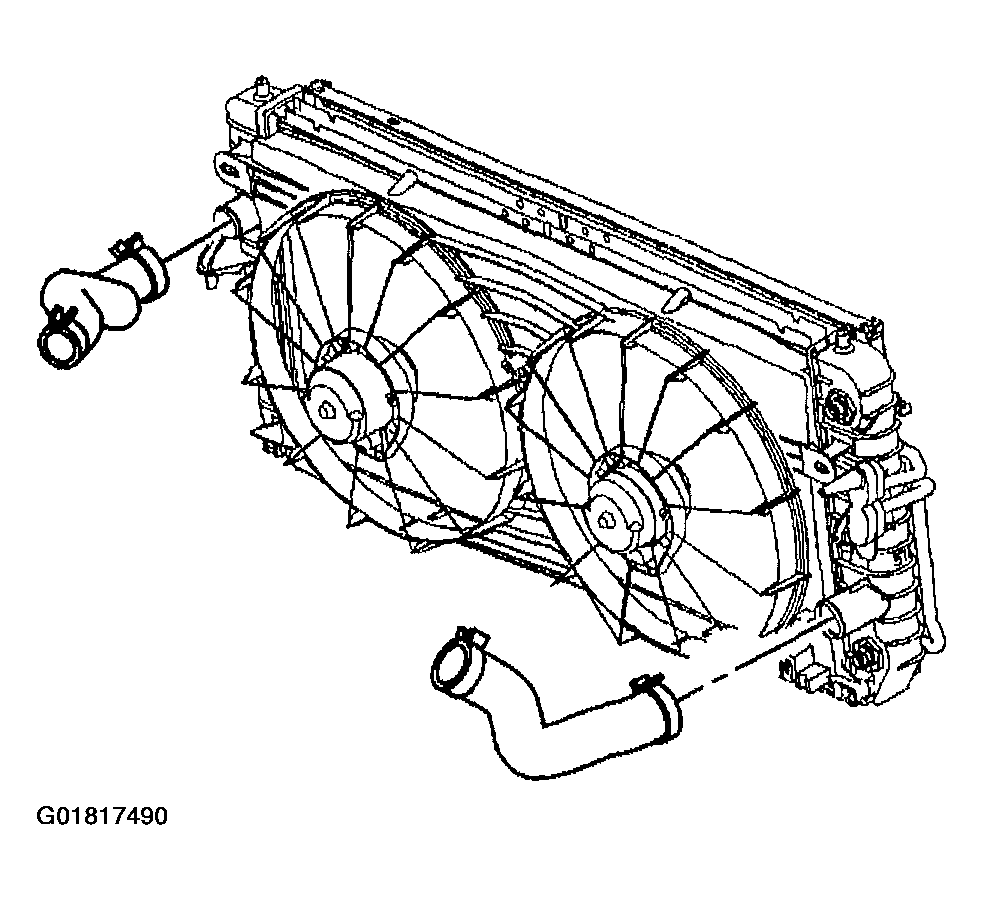

    Fig 1: Installing Radiator Hose
    G01817490Courtesy of GENERAL MOTORS CORP.
  4. Connect the radiator hose.
  5. Using the J 38185  reposition the clamp.
  6. Fill the cooling system. Refer to Draining and Filling Cooling System .

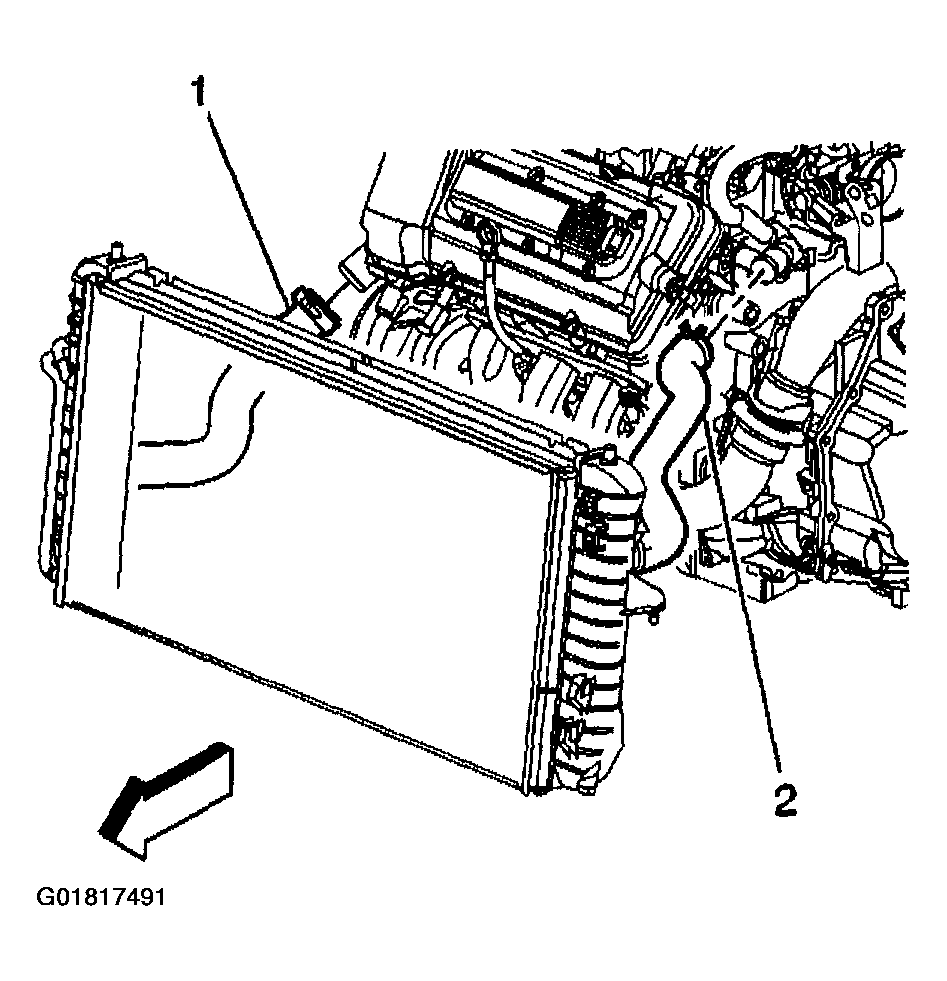

    Fig 2: Connecting Inlet Radiator Hose
    G01817491Courtesy of GENERAL MOTORS CORP.
