Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Install the inlet radiator hose to the engine.
Using the J 38185 reposition the clamp at the engine.
Position the hose and fasten to the clamp (1) at the upper radiator support.

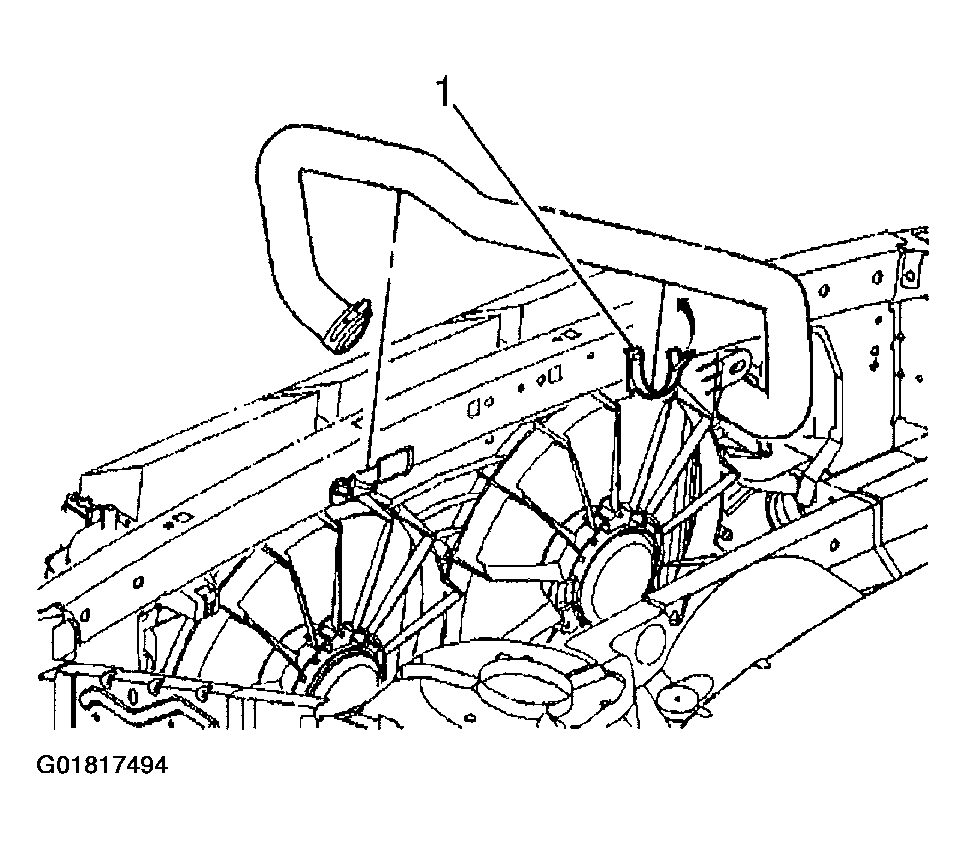

Fig 1: Installing Inlet Radiator Hose
Courtesy of GENERAL MOTORS CORP.
Install the inlet radiator hose to the radiator.
Using the J 38185 reposition the hose clamp (1) at the radiator.
Fill the cooling system. Refer to Draining and Filling Cooling System .

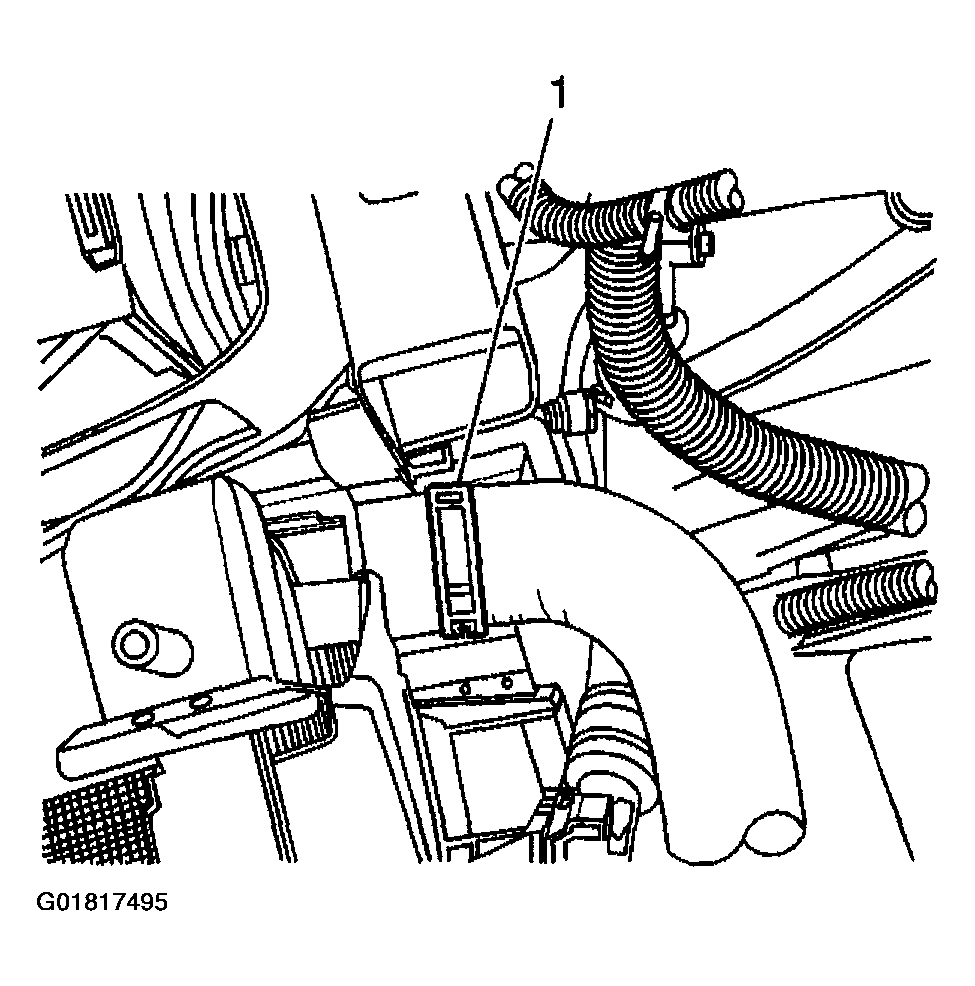

Fig 2: Locating Radiator Hose Clamp
Courtesy of GENERAL MOTORS CORP.
