Removal Procedure
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle.
- Disconnect the electrical connector at the engine coolant heater.

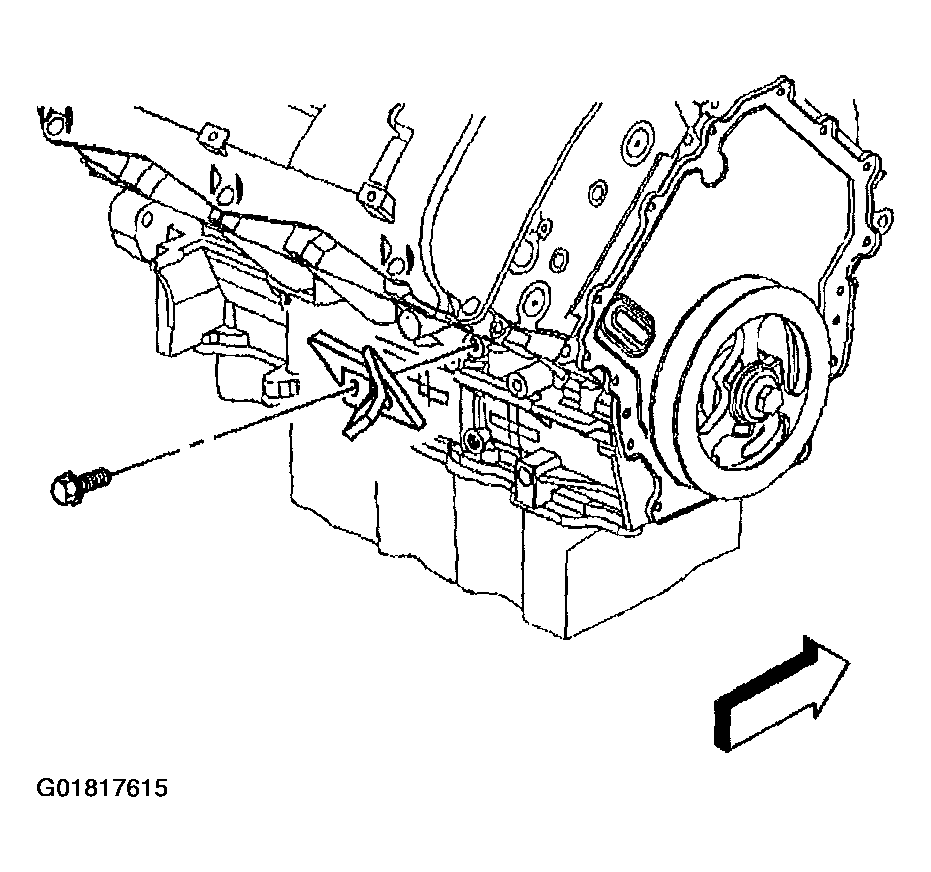

- Remove the engine coolant heater bolt.
- Remove the right engine coolant heater.
Courtesy of GENERAL MOTORS CORP.
