Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the threaded hole in the engine block with the hole labeled "R" (1) on the right engine coolant heater.
    Fig 1: Aligning Right Engine Coolant Heater
    G01817616Courtesy of GENERAL MOTORS CORP.
  2. Install the right engine coolant heater.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the engine coolant heater bolt.

    Tighten

    Tighten the engine coolant heater bolt to 10 N.m (89 in lbs).

  4. Connect the electrical connector to the engine coolant heater.

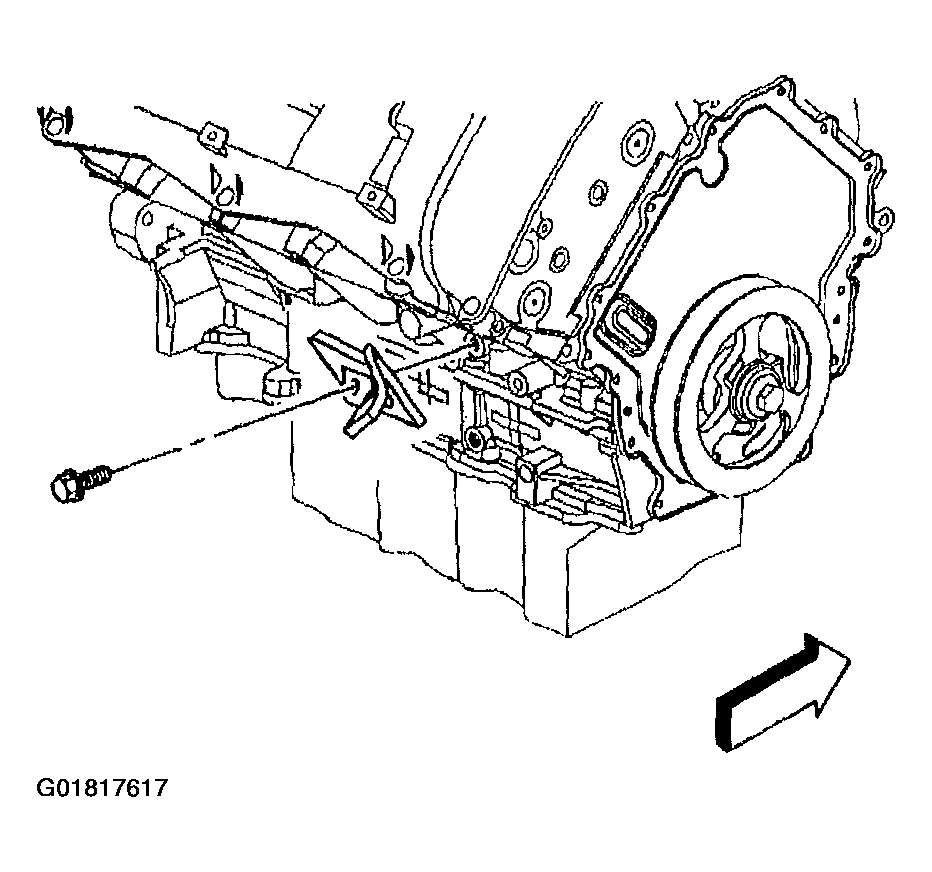

    5. Fig 2: Installing Right Engine Coolant Heater
    G01817617Courtesy of GENERAL MOTORS CORP.
  5. Lower the vehicle.
