Conditions for Clearing the MIL/DTC

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The DTC clears as a current status when the voltage falls below 16.2 volts for 30 seconds with the engine running.

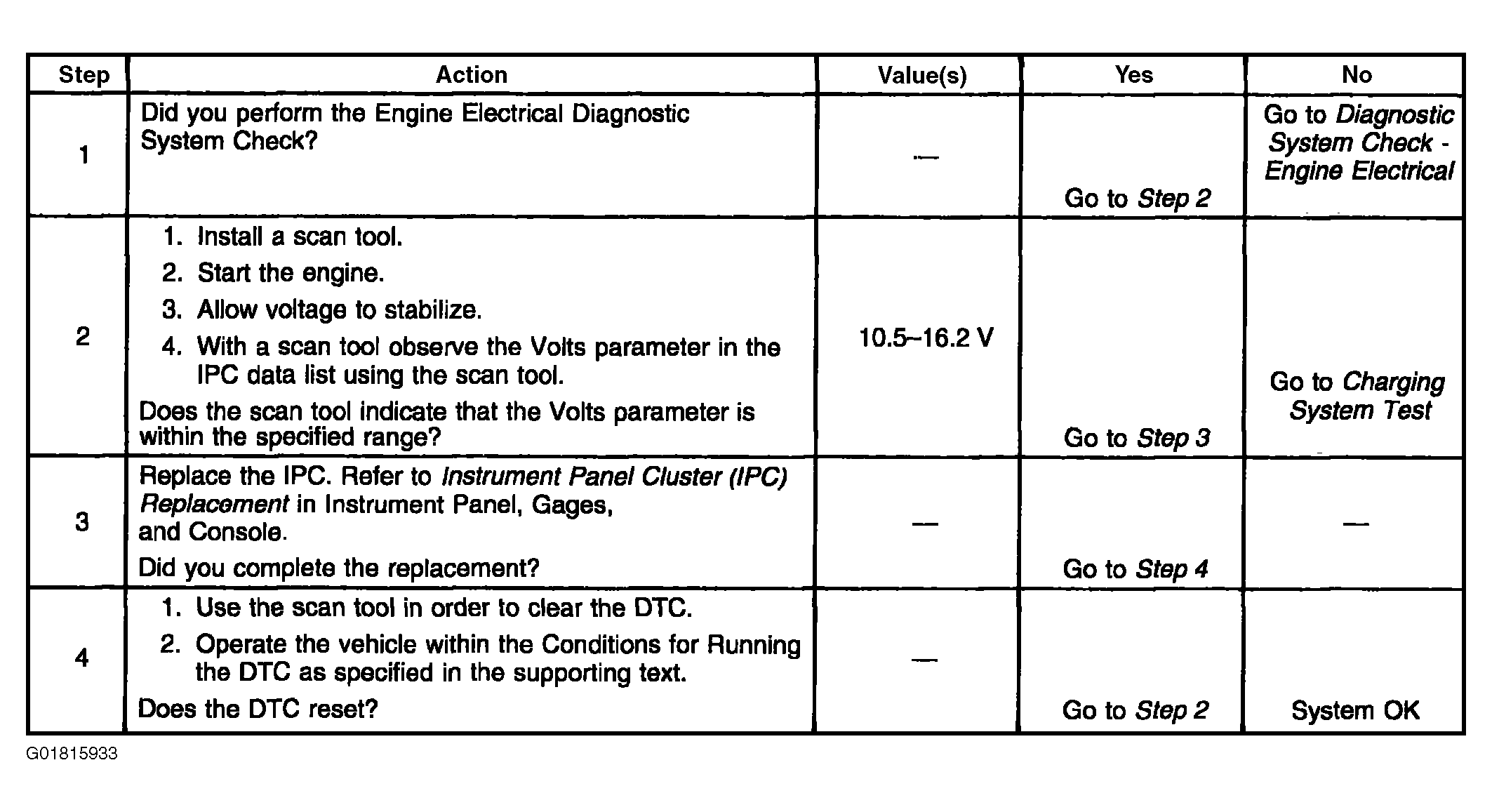

Fig 1: DTC B1514
G01815933Courtesy of GENERAL MOTORS CORP.
