Load Shed System Description and Operation: Load-Shed

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

This vehicle uses the following load-shed actions (Fig 1).

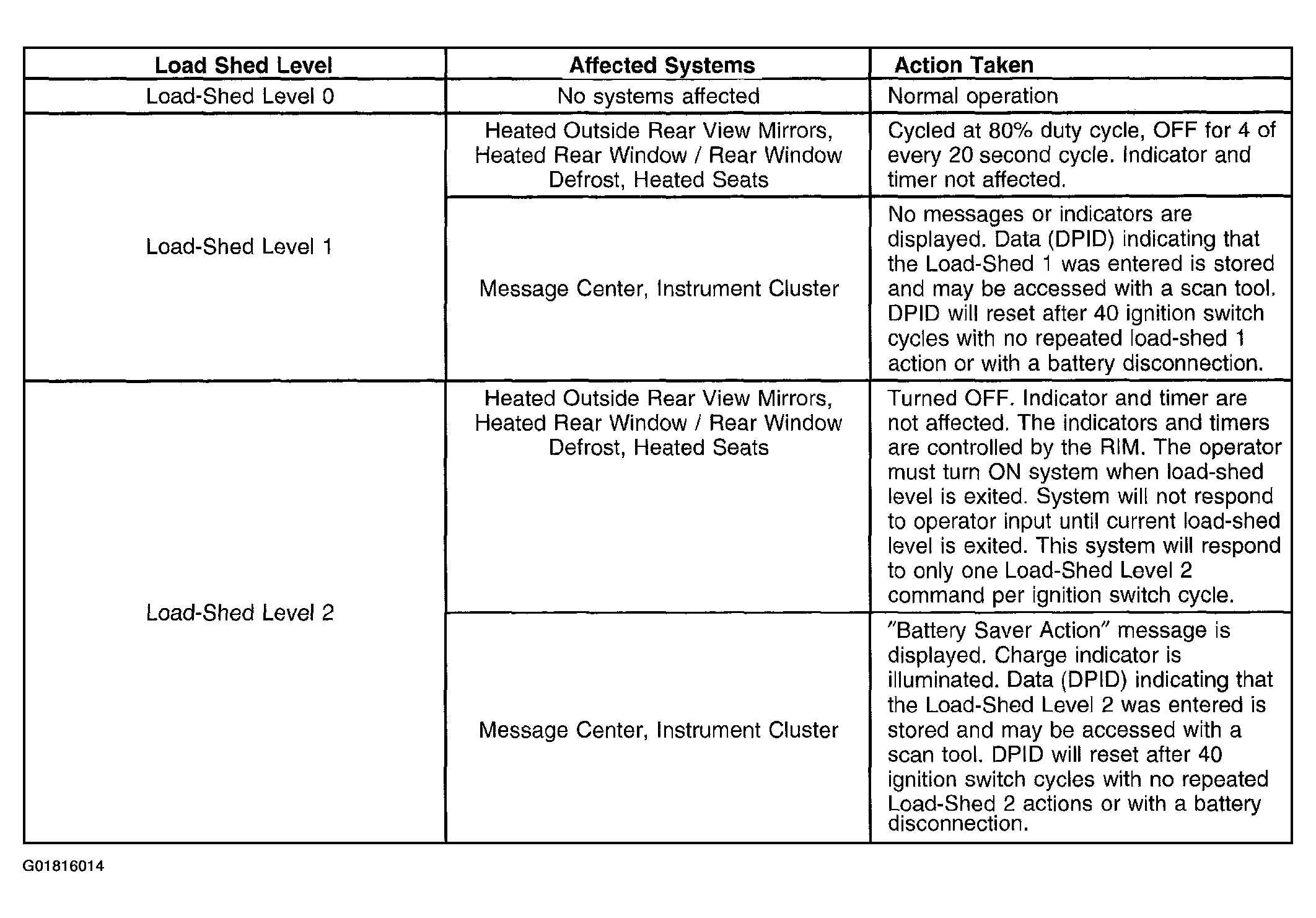

Fig 1: Identifying Load-Shed Levels

Courtesy of GENERAL MOTORS CORP.
