Transaxle Oil Cooler: Installation

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

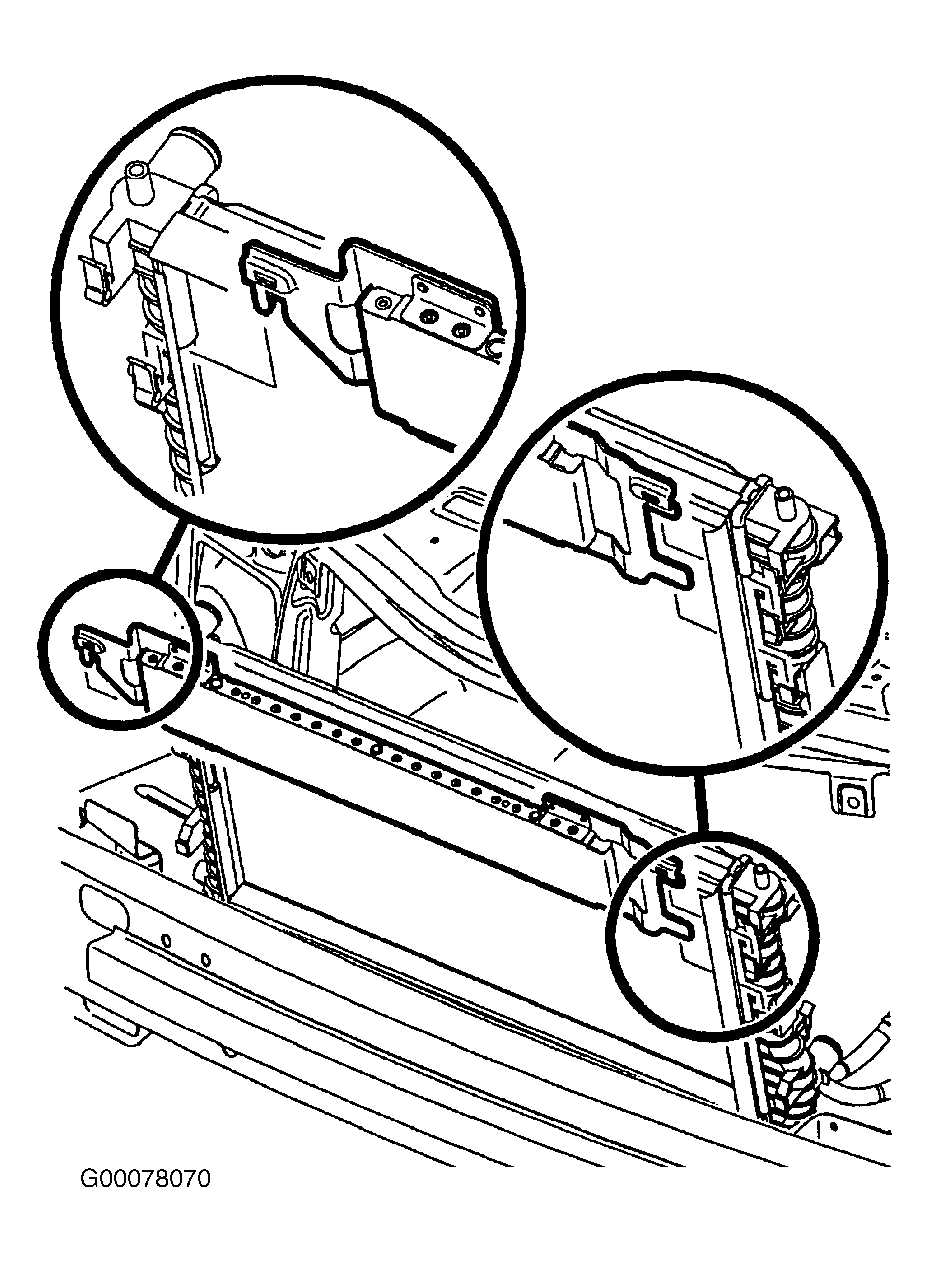

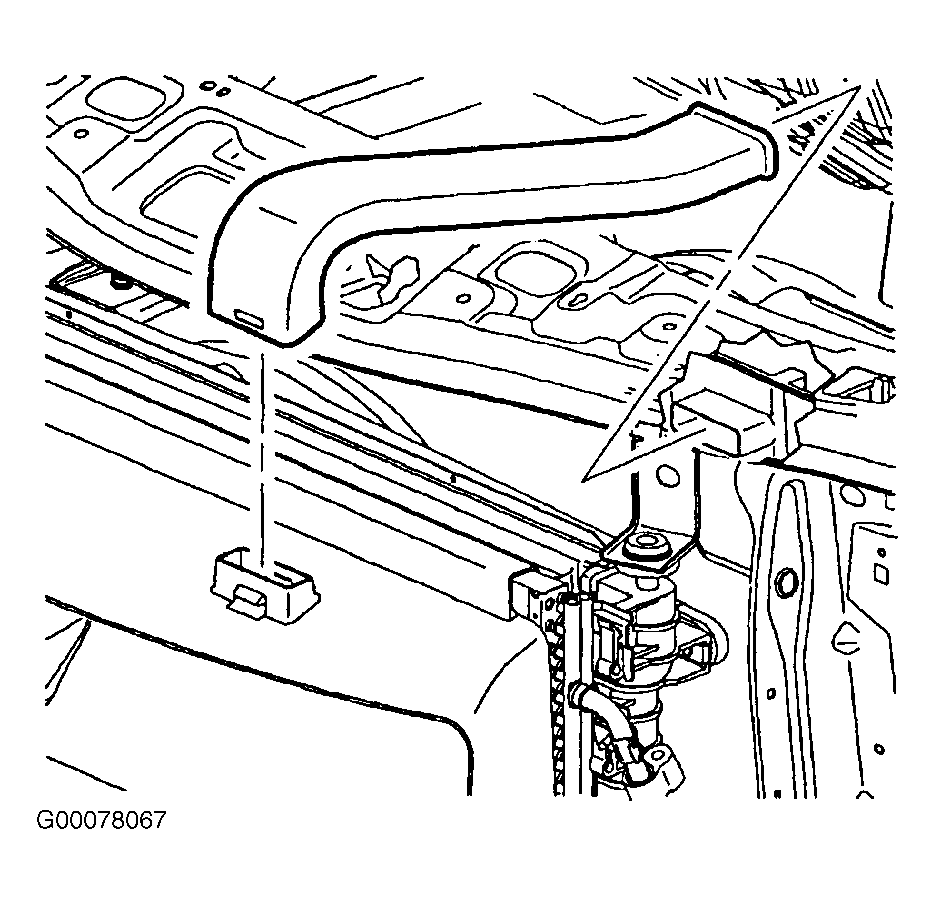

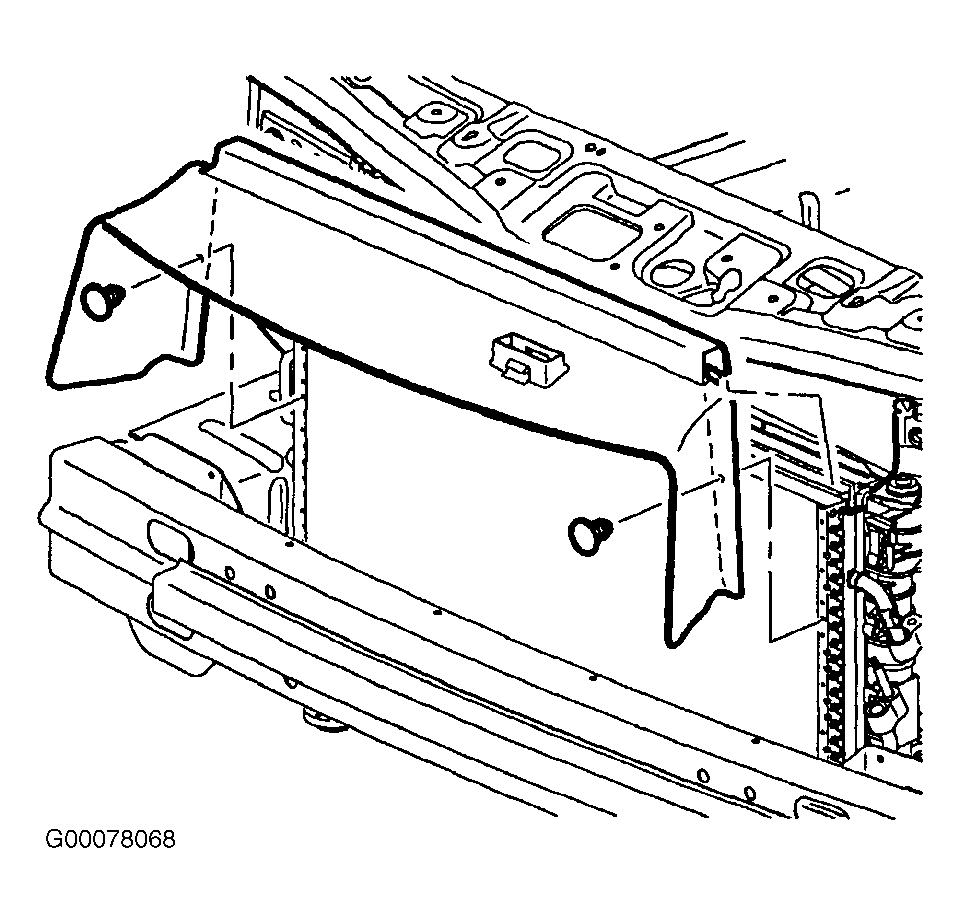

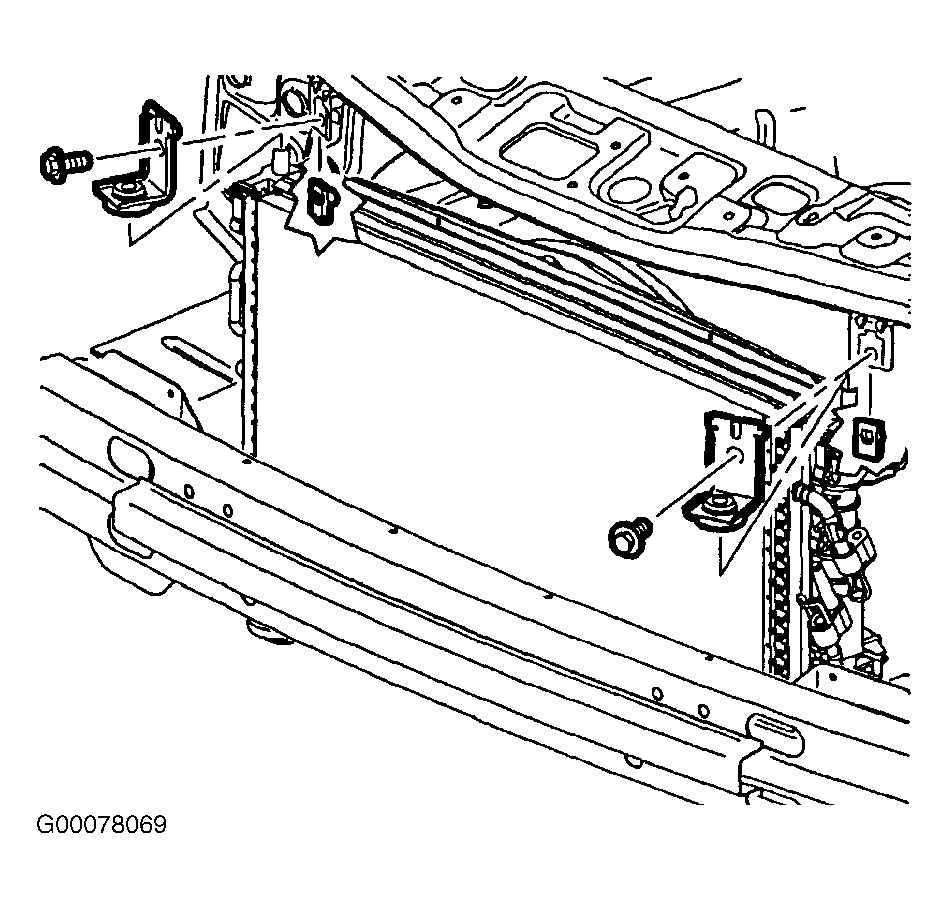

  1. Clip transaxle oil cooler to radiator. See Figure . Clip condenser to radiator. Install upper CRFM bracket assemblies. See Figure . Install condenser splash shield. See Figure . Install battery box inlet air duct. See Figure . Install oil cooler line-to-radiator bracket bolt. Connect transaxle oil cooler lines to radiator.
  2. Install front fascia. See FRONT FASCIA  . Check transmission fluid level. See CHECKING FLUID LEVELS  under LUBRICATION. If necessary, fill transaxle to proper level.
