Transaxle Oil Cooler Line Seals: Installation

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a new transaxle cooler line seal in case bore. Remove nub from Cooler Line Seal Installer (J-41239). Install nub of cooler line seal installer on transaxle cooler line seal. See Fig 1 . Tap in a new transaxle cooler line seal into case bore. Install transaxle oil cooler line assembly to transaxle.
  2. Install transaxle oil cooler line assembly nut and tighten to specification. See TORQUE SPECIFICATIONS  . Lower vehicle. Add fluid to transaxle. See CHECKING FLUID LEVELS  under LUBRICATION. Start engine and check for leaks.

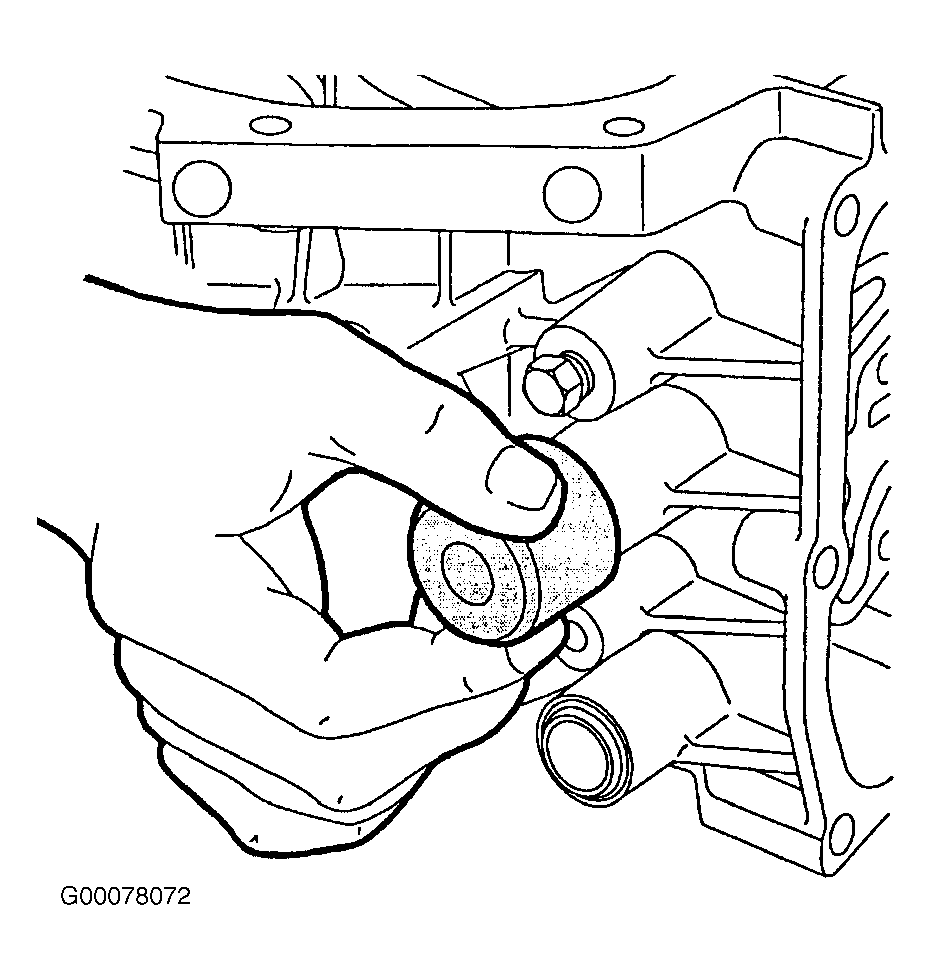

Fig 1: Installing Transaxle Cooler Line Seal
G00078072Courtesy of GENERAL MOTORS CORP.
