Input Speed Sensor: Installation

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

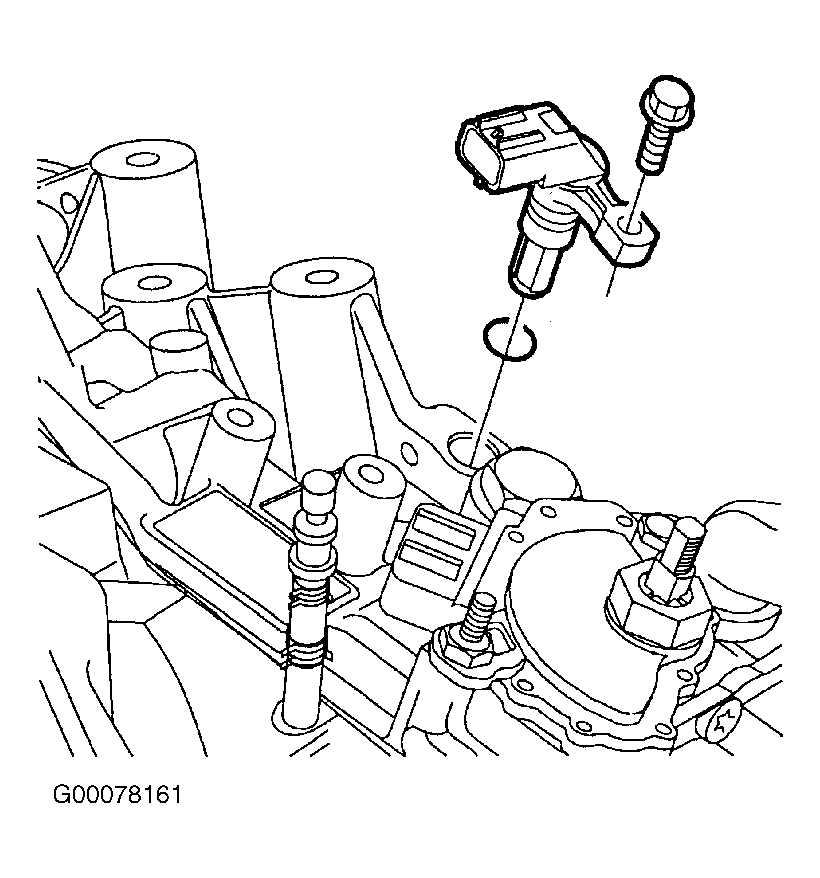

  1. Apply transmission fluid to new O-ring. Install new O-ring onto input speed sensor. Install input speed sensor onto transaxle. See Figure . Connect wiring harness to input speed sensor. Install new input speed sensor bolt and tighten to specification. See TORQUE SPECIFICATIONS  .

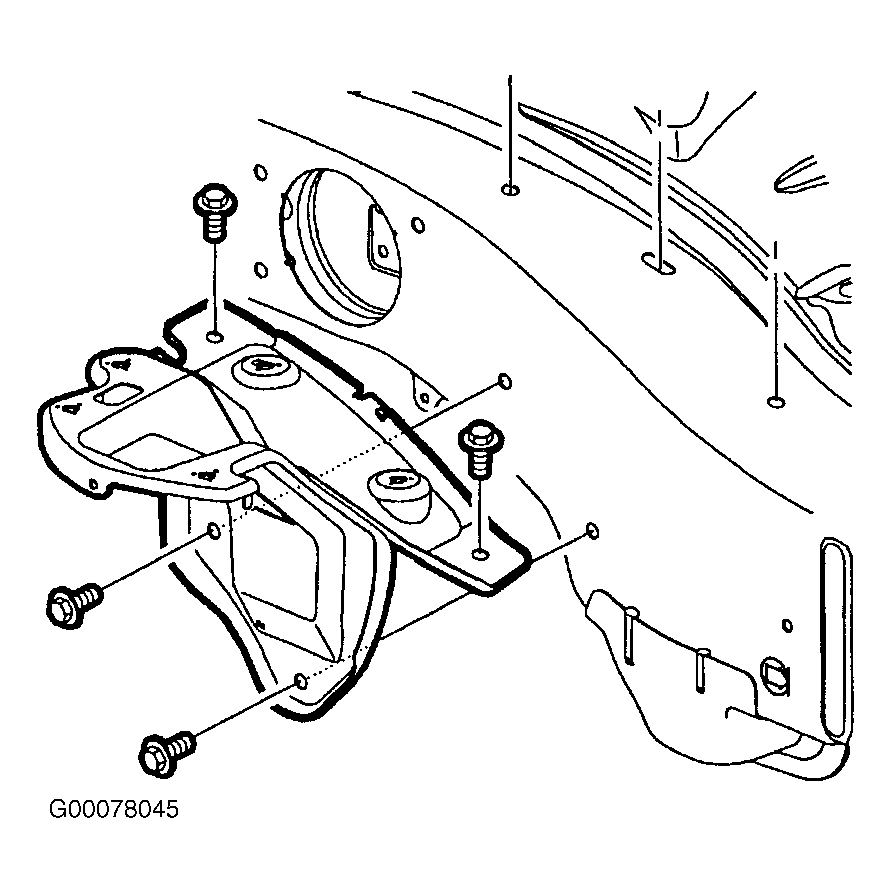

  2. Install battery tray bracket and tighten bolts to specification. See Figure . See TORQUE SPECIFICATIONS  . Install battery cooling box. See BATTERY COOLING BOX  .
  3. Insert battery and tighten battery hold-down screw to specification. Connect positive battery cable to battery and tighten screws to specification. See TORQUE SPECIFICATIONS  .
  4. Connect negative battery cable to battery and tighten screws to specification. Install battery cooling box cover and tighten screws to specification. See TORQUE SPECIFICATIONS  . Reprogram radio stations.
