Front Fascia: Installation

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

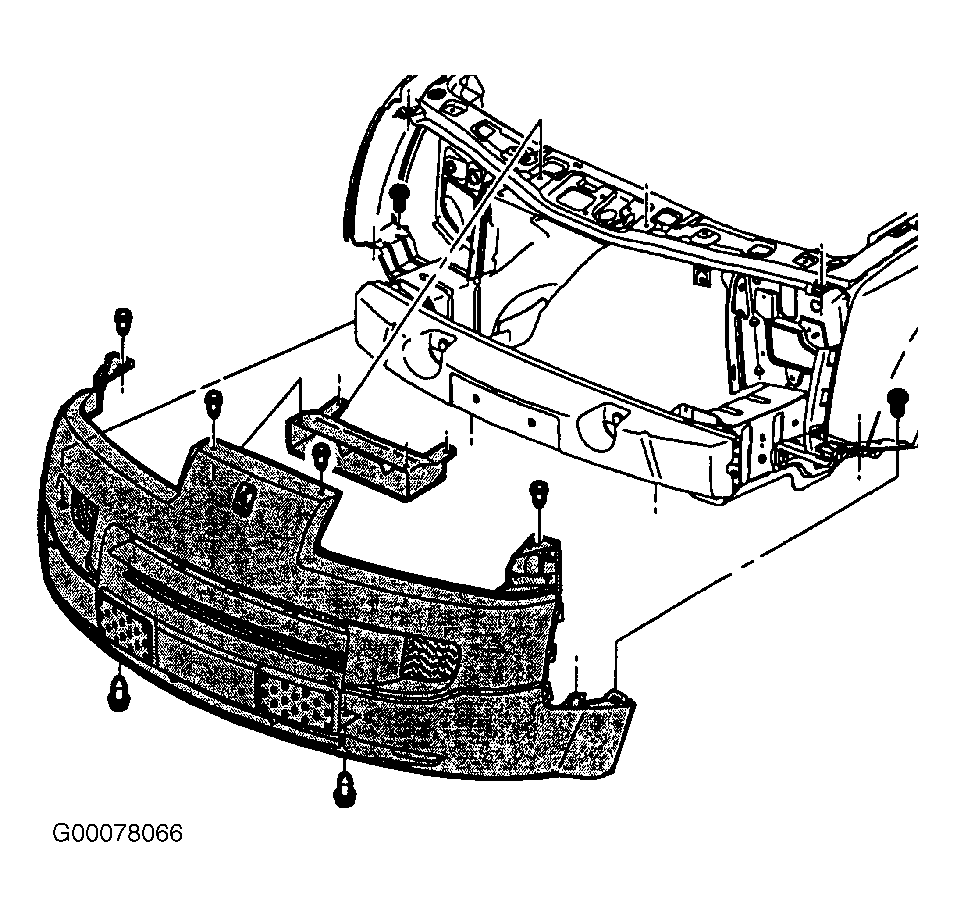

  1. Install fascia-to-fascia support pushpins. See Figure . Install fascia tabs to front fenders. Install fasica-to-body pushpins.
  2. Install front fascia-to-lower front fender bracket bolt and tighten to specification. See TORQUE SPECIFICATIONS  .
  3. Install Wheelhouse liner-to-fascia pushpins. Connect foglight harness connectors (if equipped). Install headlight bulb sockets.
  4. Carefully lower headlight into position, making sure headlight housing bracket lower arm fits into bracket located on vehicle structure.
  5. Install headlight bracket-to-structure bolt and tighten to specification. See TORQUE SPECIFICATIONS  .
  6. Connect sidemarker bulb socket. Install sidemarker to fascia, making sure lower sidemarker housing tabs are engaging fascia.
  7. Install sidemarker-to-body pushpin fastener. Install front fascia-to-structure bolt and tighten to specification. See TORQUE SPECIFICATIONS  . See Figure . Install front air deflector-to-cradle postpone. See Figure .
