Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a NEW exhaust manifold gasket over the cylinder head studs.
  2. Position the right exhaust manifold to the right cylinder head.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the right exhaust manifold nuts.

    Tighten

    Tighten the exhaust manifold nuts to 25 N.m (18 ft lbs).

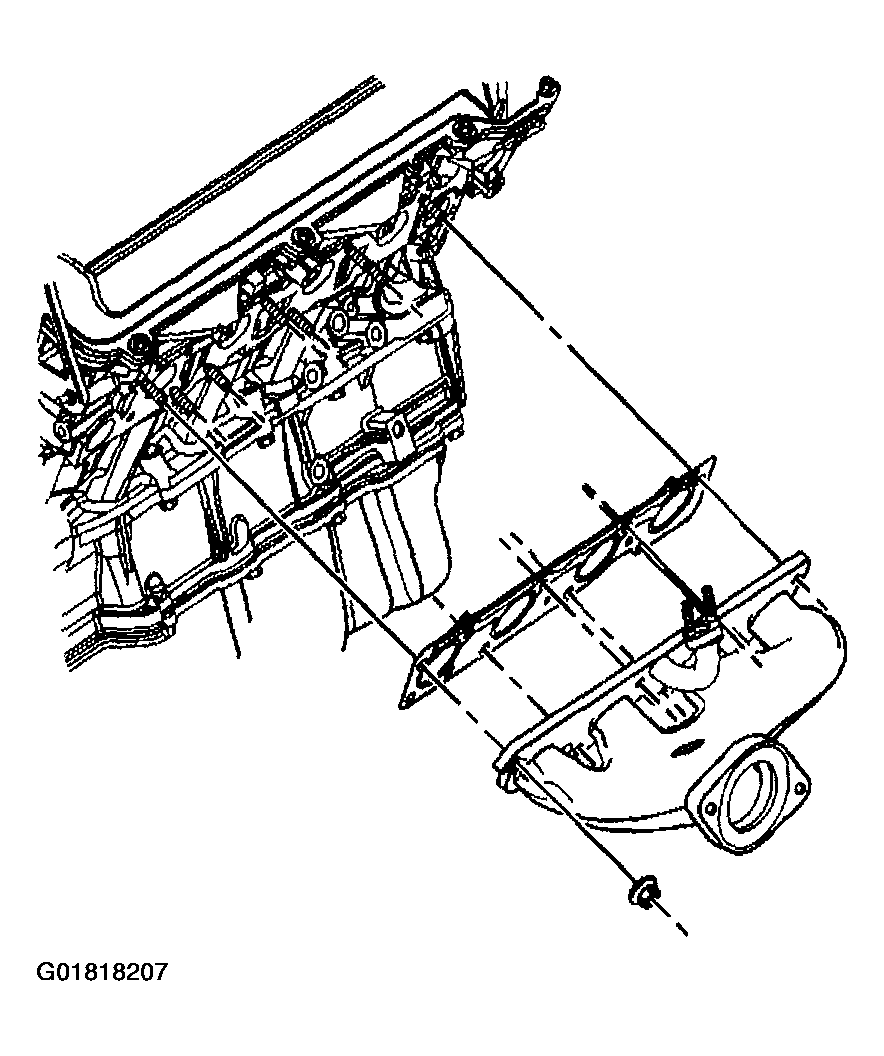

    4. Fig 1: Installing Exhaust Manifold & Gasket
    G01818207Courtesy of GENERAL MOTORS CORP.
  4. Install the heated oxygen sensor. Refer to UPSTREAM HEATED OXYGEN SENSOR .
  5. Raise the engine cradle into position.
  6. Install the four rearward engine frame-to-body bolts.

    Tighten

    Tighten the engine frame bolts to 191 N.m (141 ft lbs).

  7. Remove the screw jack.

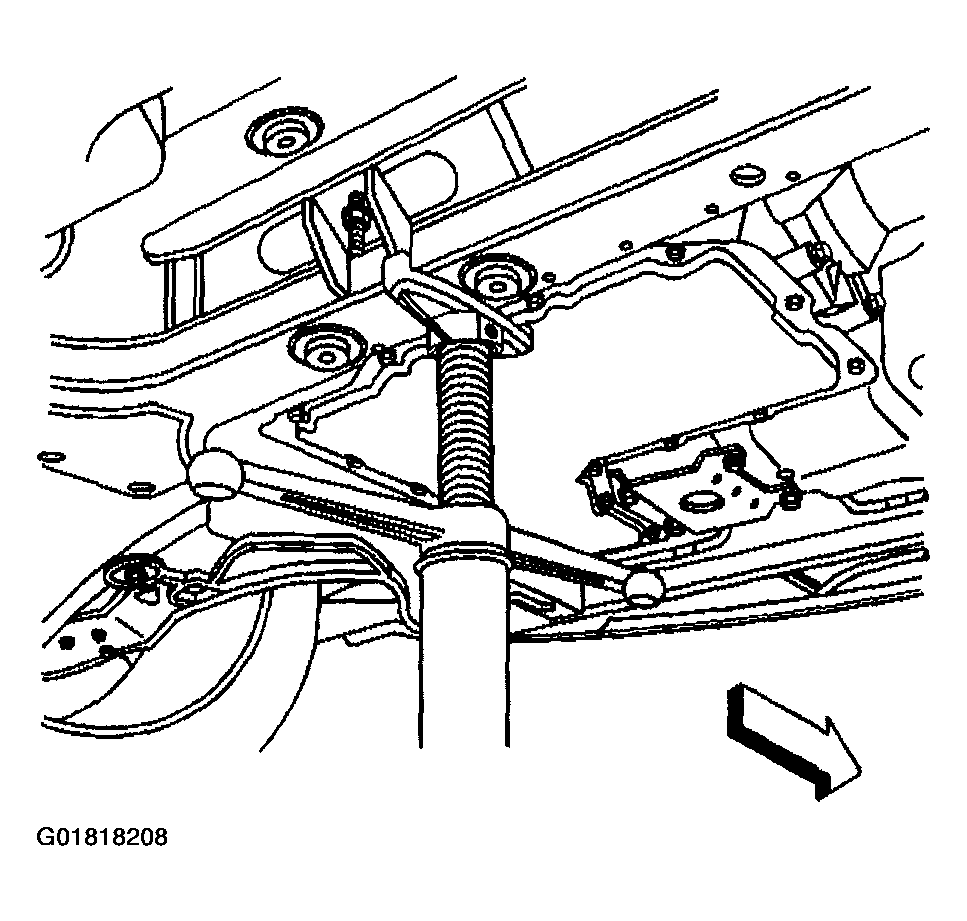

    Fig 2: Identifying Screw Jack
    G01818208Courtesy of GENERAL MOTORS CORP.
  8. Install the nut securing the left transaxle mount to the left transaxle mount bracket.

    Tighten

    Tighten the transaxle mount nut to 80 N.m (59 ft lbs).

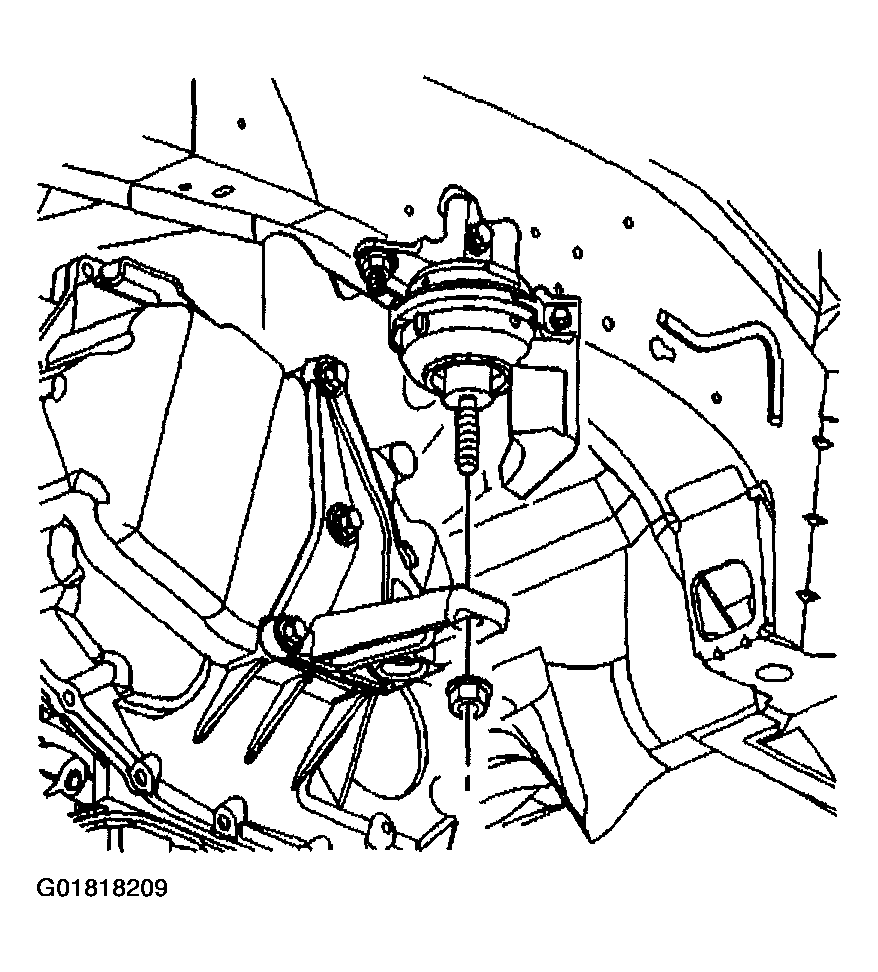

    Fig 3: Installing Left Transaxle Mount Bracket Nut
    G01818209Courtesy of GENERAL MOTORS CORP.
  9. Install the nut securing the right engine mount to the right engine mount bracket.

    Tighten

    Tighten the engine mount nut to 80 N.m (59 ft lbs).

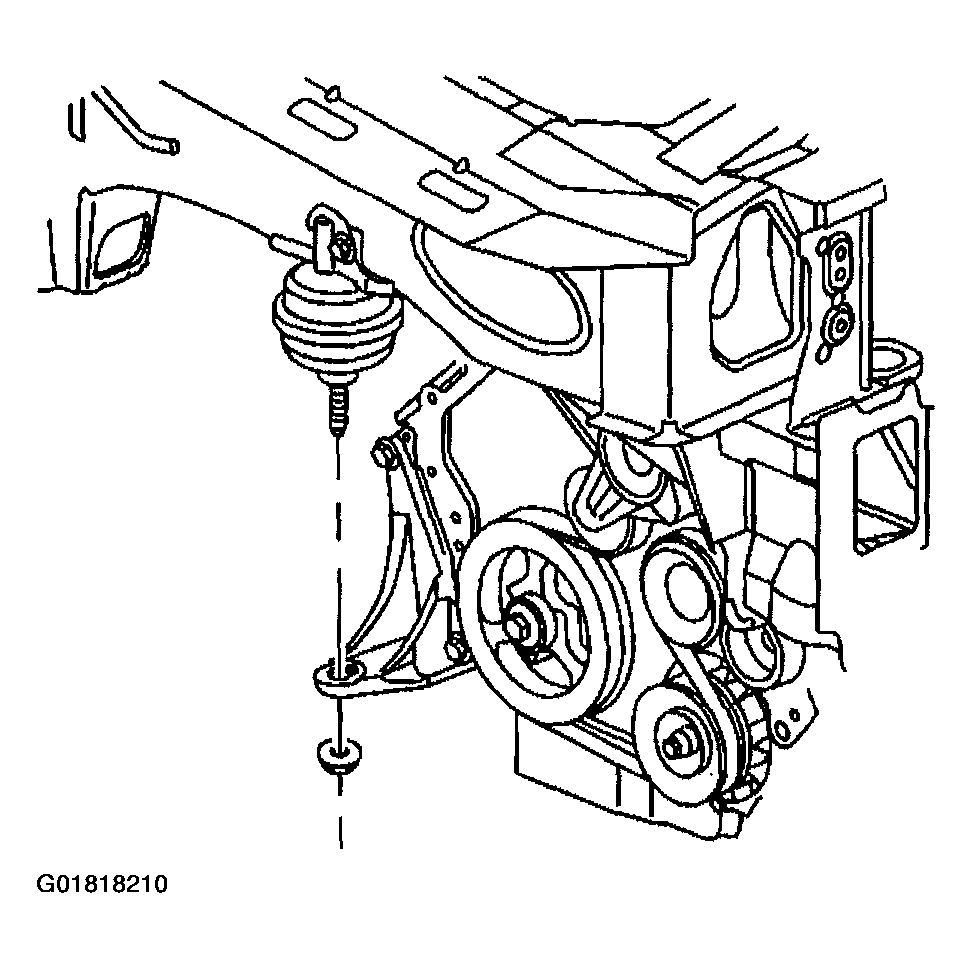

    Fig 4: Installing Right Engine Mount Bracket Nut
    G01818210Courtesy of GENERAL MOTORS CORP.
    CAUTION: When installing the intermediate shaft make sure that the shaft is seated prior to pinch bolt installation. If the pinch bolt is inserted into the coupling before shaft installation, the two mating shafts may disengage. Disengagement of the two mating shafts will cause loss of steering control which could result in personal injury.
  10. Connect the intermediate shaft to the steering gear.
  11. Install the intermediate shaft pinch bolt.

    Tighten

    Tighten the intermediate shaft pinch bolt to 45 N.m (33 ft lbs).

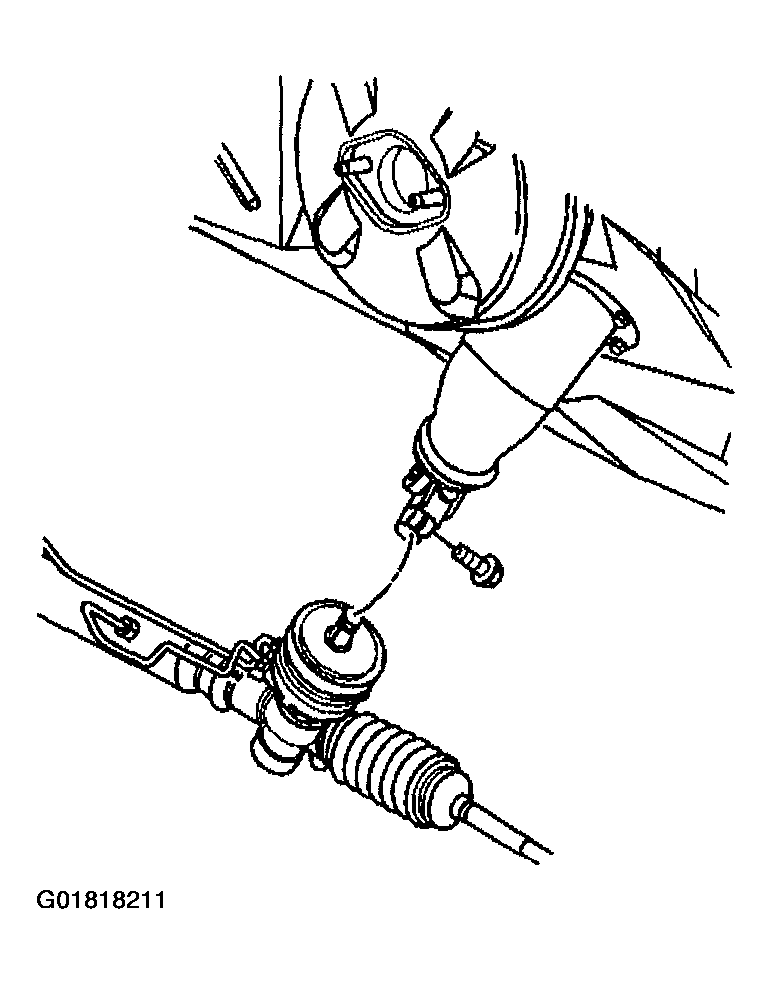

    Fig 5: Connecting Intermediate Shaft To Steering Gear
    G01818211Courtesy of GENERAL MOTORS CORP.
  12. Position the vehicle speed sensor heat shield (1) to the studs on transaxle.
  13. Install the retaining nuts (2, 3) securing the vehicle speed sensor heat shield to the transaxle.

    Tighten

    Tighten the vehicle speed sensor heat shield nuts to 50 N.m (37 ft lbs).

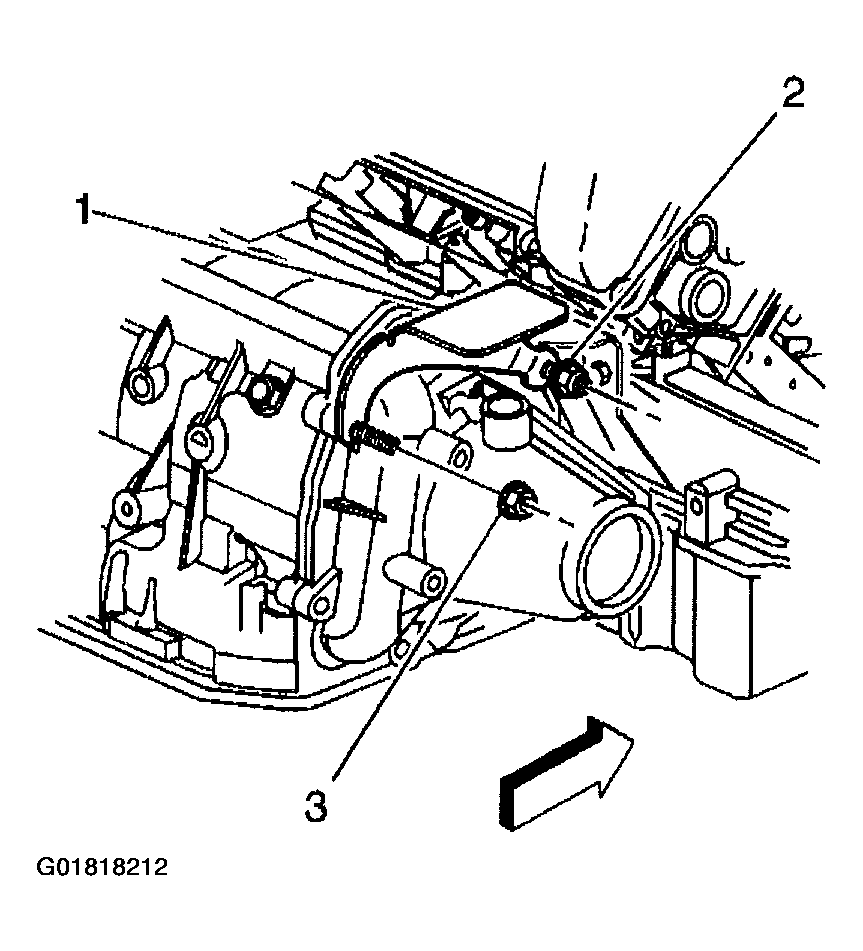

    Fig 6: Installing Vehicle Speed Sensor Heat Shield
    G01818212Courtesy of GENERAL MOTORS CORP.
  14. Position the power steering gear heat shield to the power steering gear.
  15. Install the two bolts securing the heat shield.

    Tighten

    Tighten the power steering gear heat shield bolts to 9 N.m (79 in lbs).

  16. Connect the post heated oxygen sensor wiring harness retainer to the heat shield.

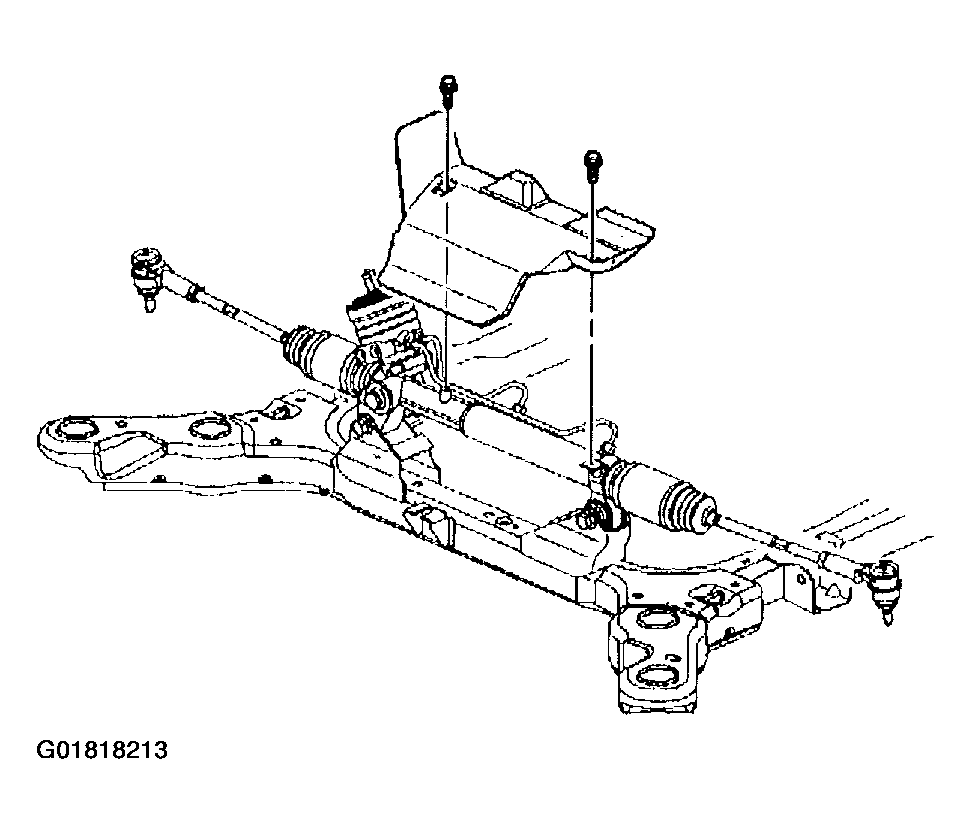

    Fig 7: Installing Power Steering Gear Heat Shield
    G01818213Courtesy of GENERAL MOTORS CORP.
  17. Install the new gasket to the secondary AIR tube (1).
  18. Install the two nuts (2) attaching the secondary AIR tube (1) to the exhaust manifold (3).

    Tighten

    Tighten the secondary AIR tube nuts to 12 N.m (106 in lbs).

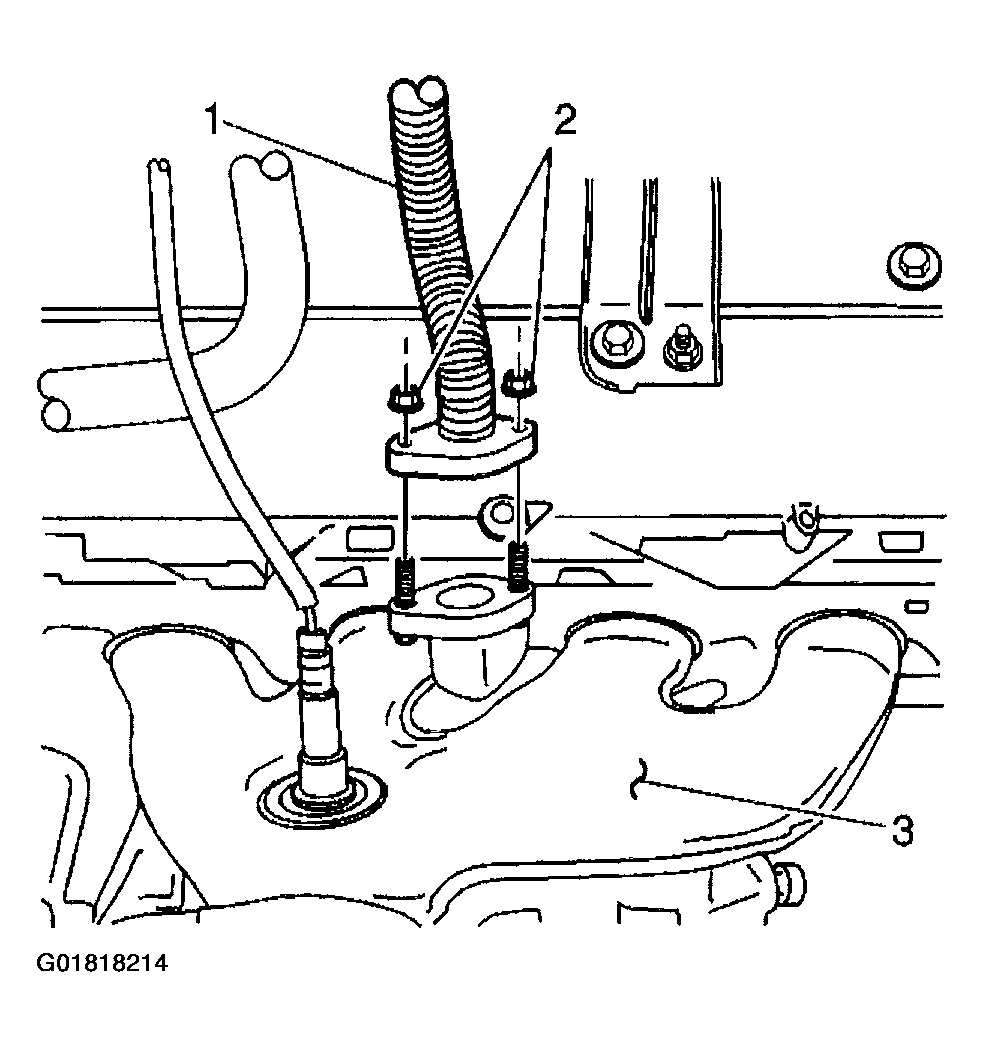

    19. Fig 8: Installing Secondary AIR Tube Gasket To Exhaust Manifold
    G01818214Courtesy of GENERAL MOTORS CORP.
  19. Install the rear exhaust manifold pipe. Refer to Exhaust Manifold Pipe Replacement - Rear (L47) .
  20. Lower the vehicle.
  21. Remove the J 42640  from the steering column.

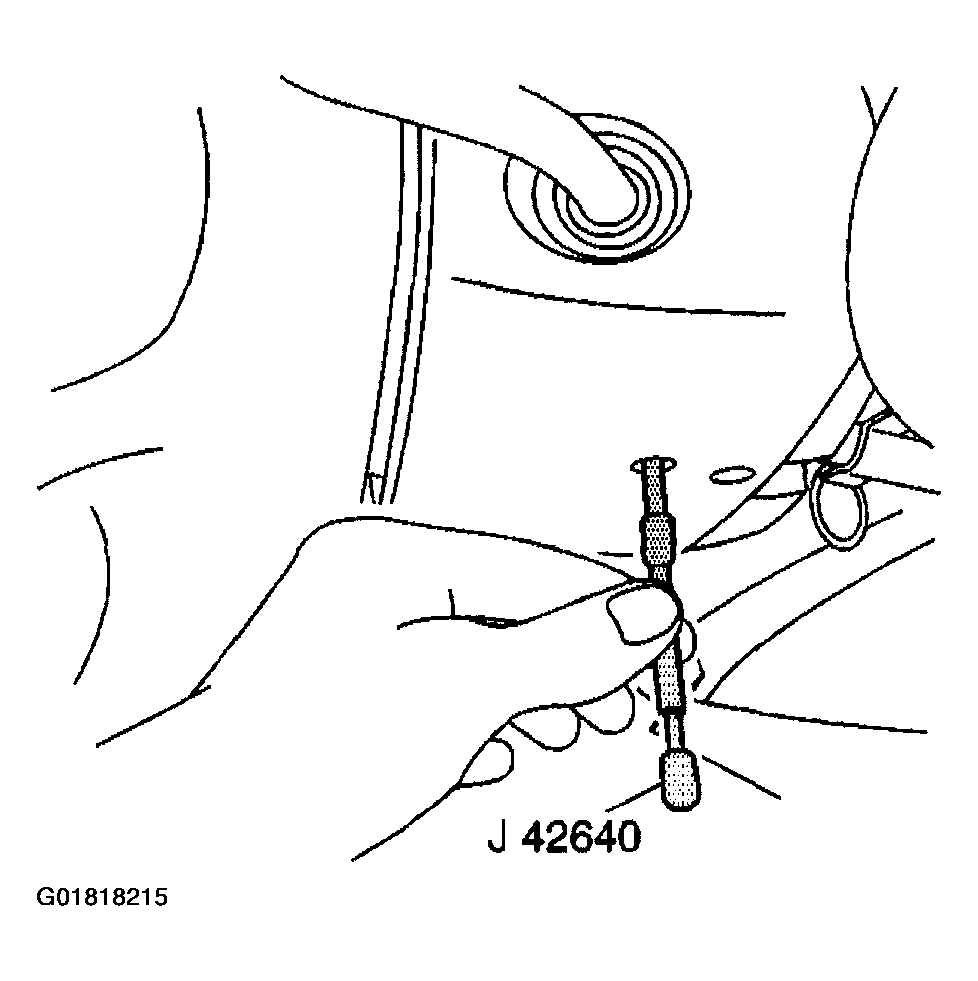

    22. Fig 9: Unlocking Steering Column
    G01818215Courtesy of GENERAL MOTORS CORP.
  22. Connect the heated oxygen sensor at the sensor pigtail.
