Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolts attaching the exhaust manifold heat shield to the left exhaust manifold.
  2. Remove the exhaust manifold heat shield from the left exhaust manifold.

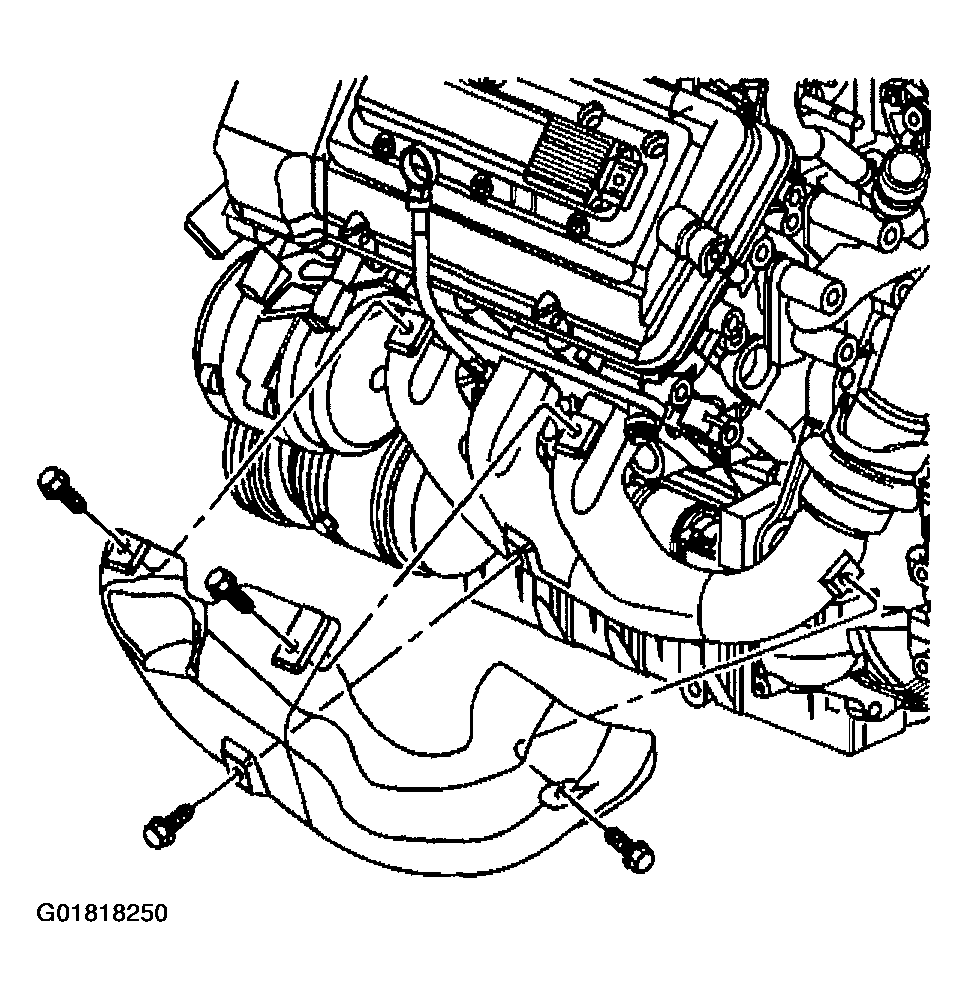

    Fig 1: Removing Exhaust Manifold Heat Shield
    G01818250Courtesy of GENERAL MOTORS CORP.
