Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the exhaust manifold heat shield to the left exhaust manifold.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the bolts attaching the exhaust manifold heat shield to the left exhaust manifold.

    Tighten

    Tighten the exhaust manifold heat shield bolts to 9 N.m (80 in lbs).

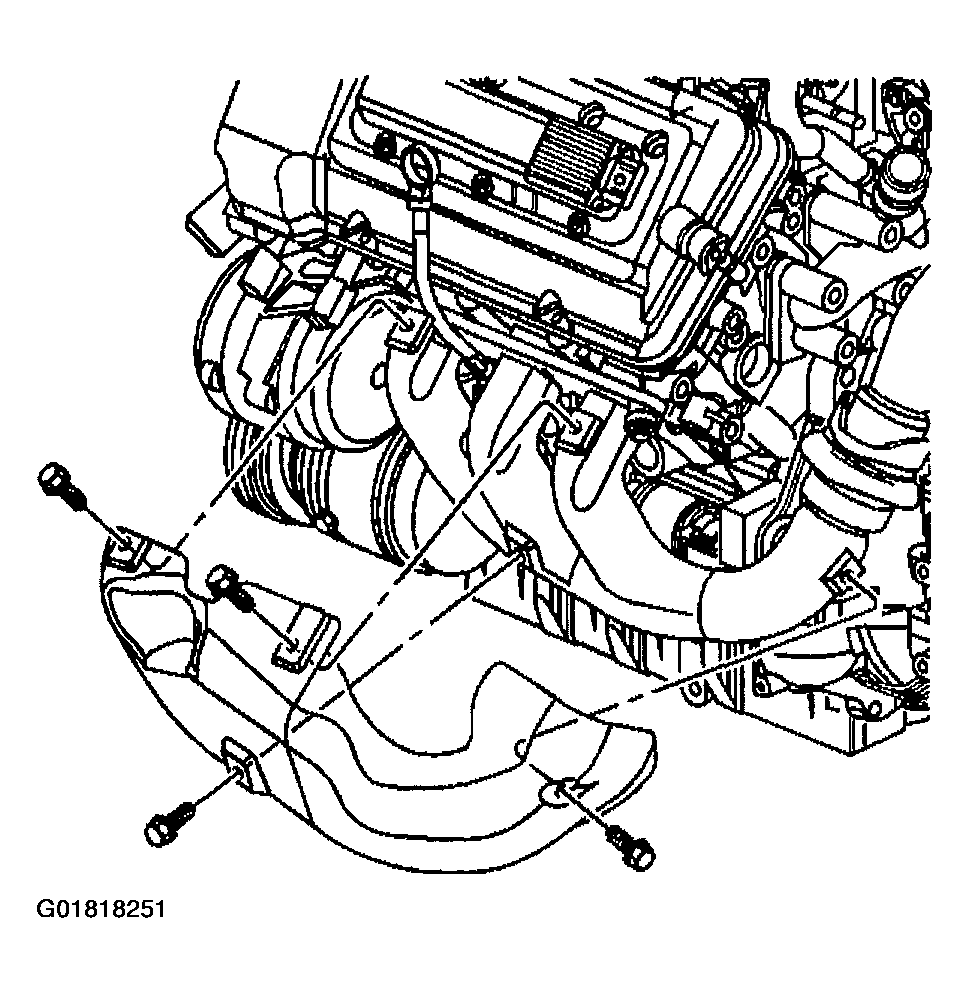

    Fig 1: Installing Exhaust Manifold Heat Shield
    G01818251Courtesy of GENERAL MOTORS CORP.
