Exhaust Leakage

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

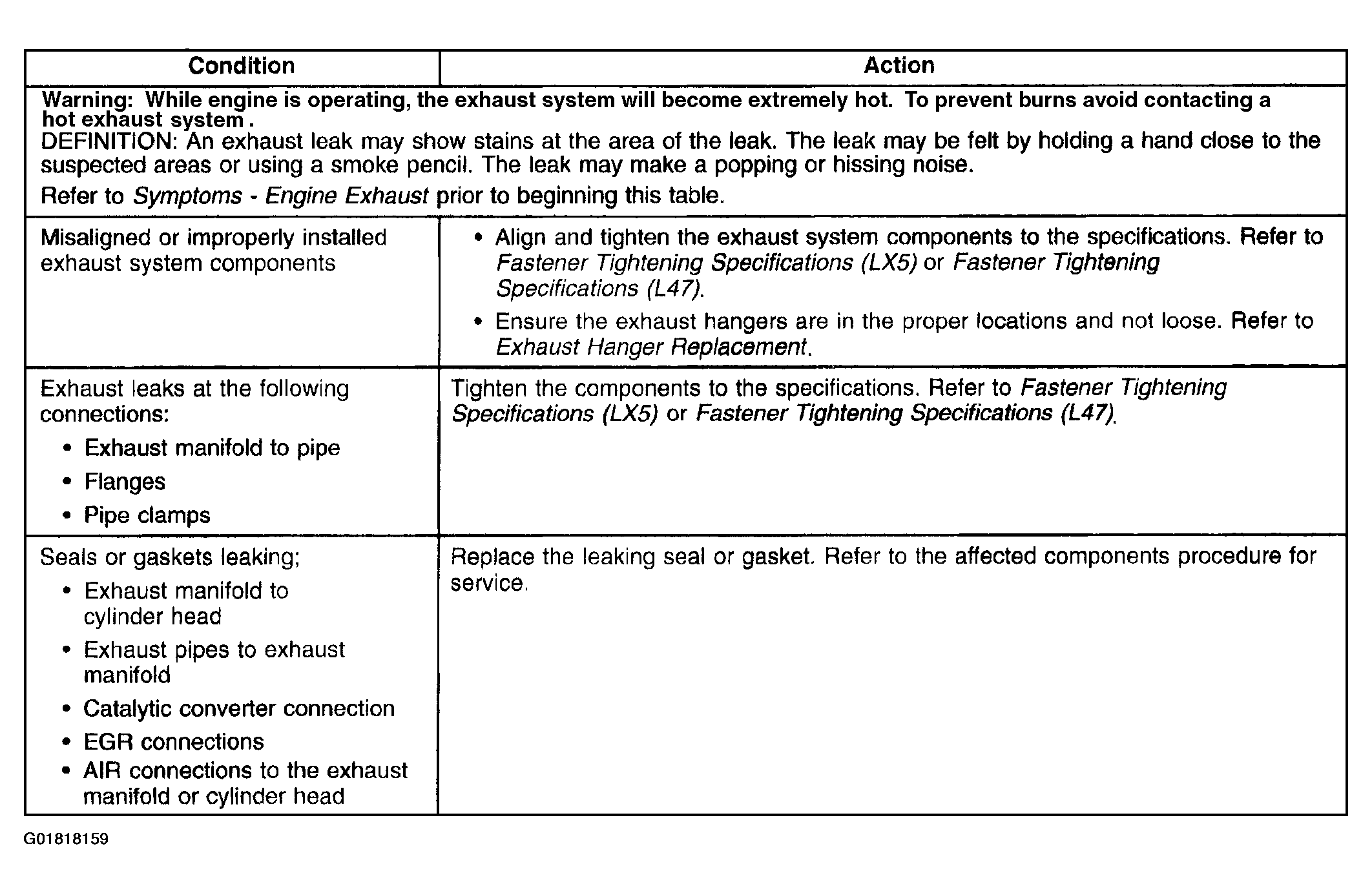

Fig 1: Exhaust Leakage (1 Of 2)
G01818159Courtesy of GENERAL MOTORS CORP.

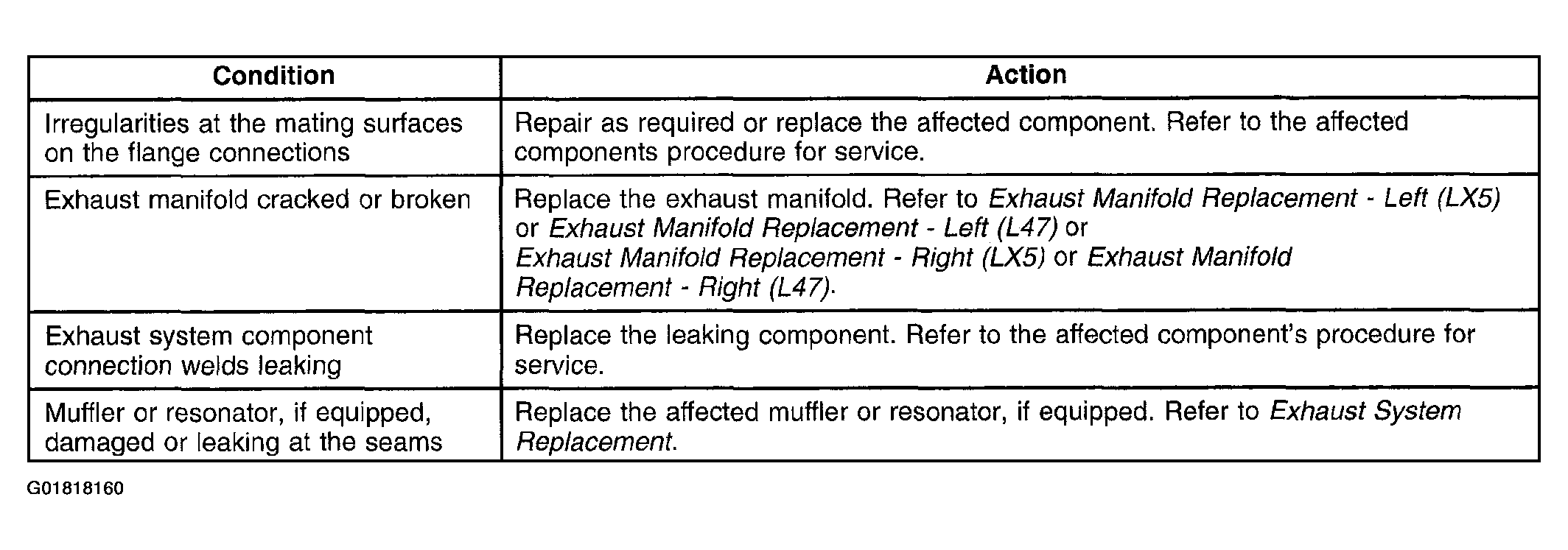

Fig 2: Exhaust Leakage (2 Of 2)
G01818160Courtesy of GENERAL MOTORS CORP.
