Power Steering Pump Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power steering pump bolt. The bolt is located perpendicular to the crankshaft centerline and behind the power steering pulley.
  2. Remove the power steering pump.

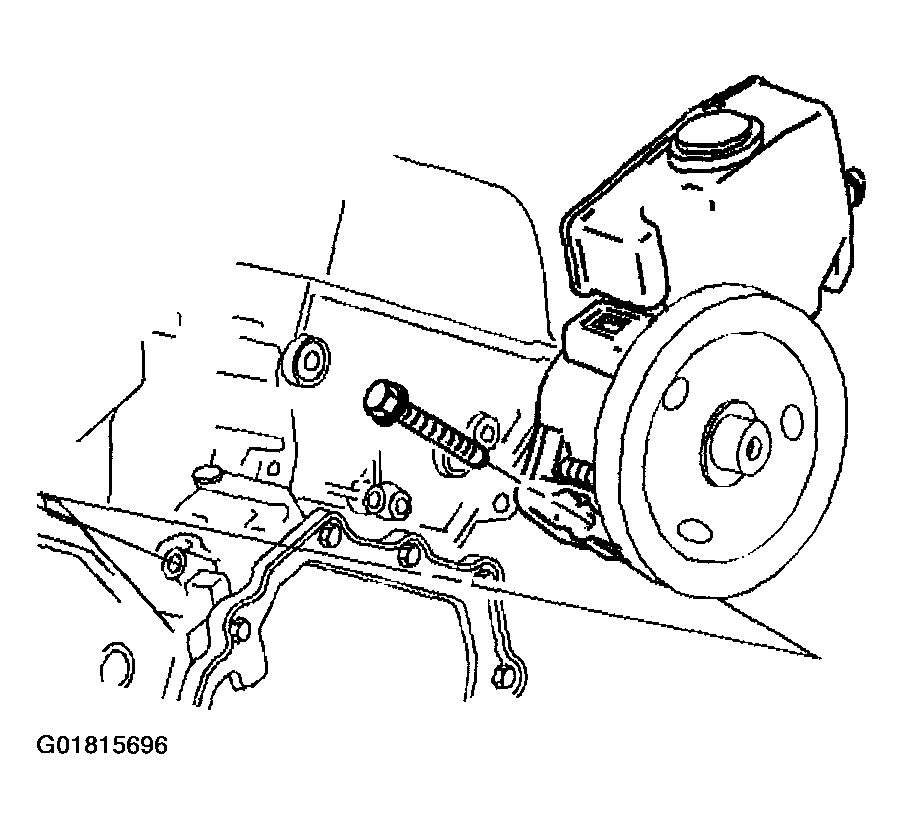

    Fig 1: Removing Power Steering Pump
    G01815696Courtesy of GENERAL MOTORS CORP.
