Power Steering Pump Installation
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

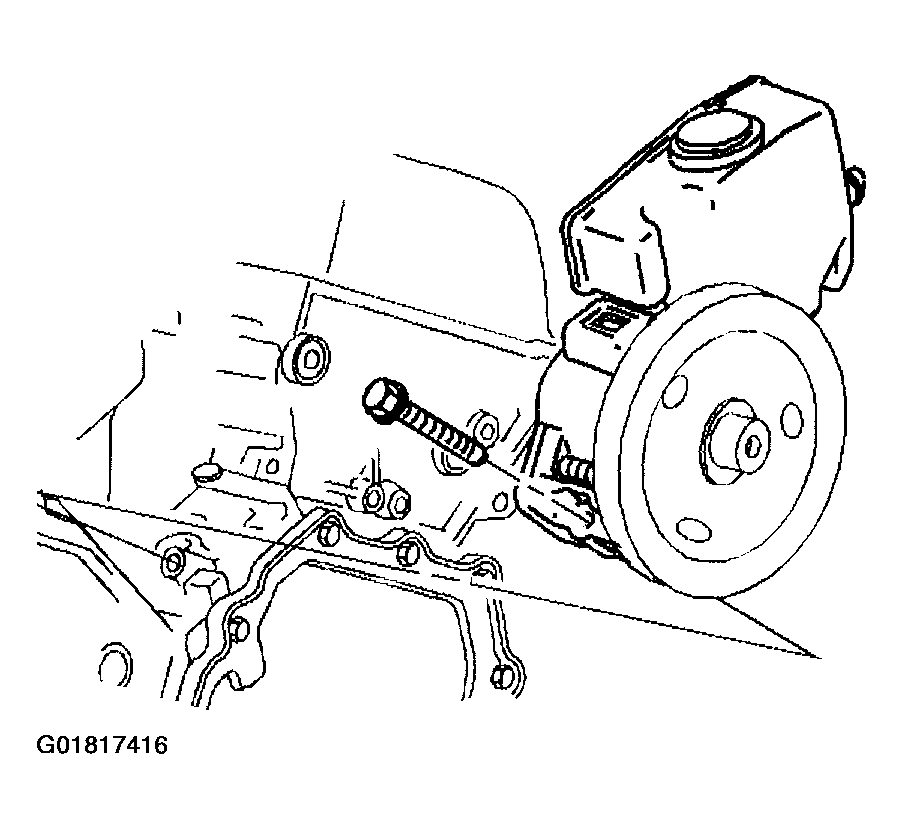

- Place the power steering pump in position in the engine valley. Slide the molded wedge into the retaining feature cast into the cylinder block.CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
Important: You MUST push the power steering pump toward the rear of the engine as much as possible before tightening the bolt.
- Install the power steering pump bolt.
Tighten
Tighten the power steering pump bolt to 50 N.m (37 ft lbs).
