Oil Pump Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump assembly retaining bolts (1, 2, 3) identified by the larger head size.
  2. Slide the oil pump assembly off the nose of the crankshaft with the drive collar in place.
  3. Wrap the oil pump in a towel for safe, clean storage until inspection or assembly is necessary.

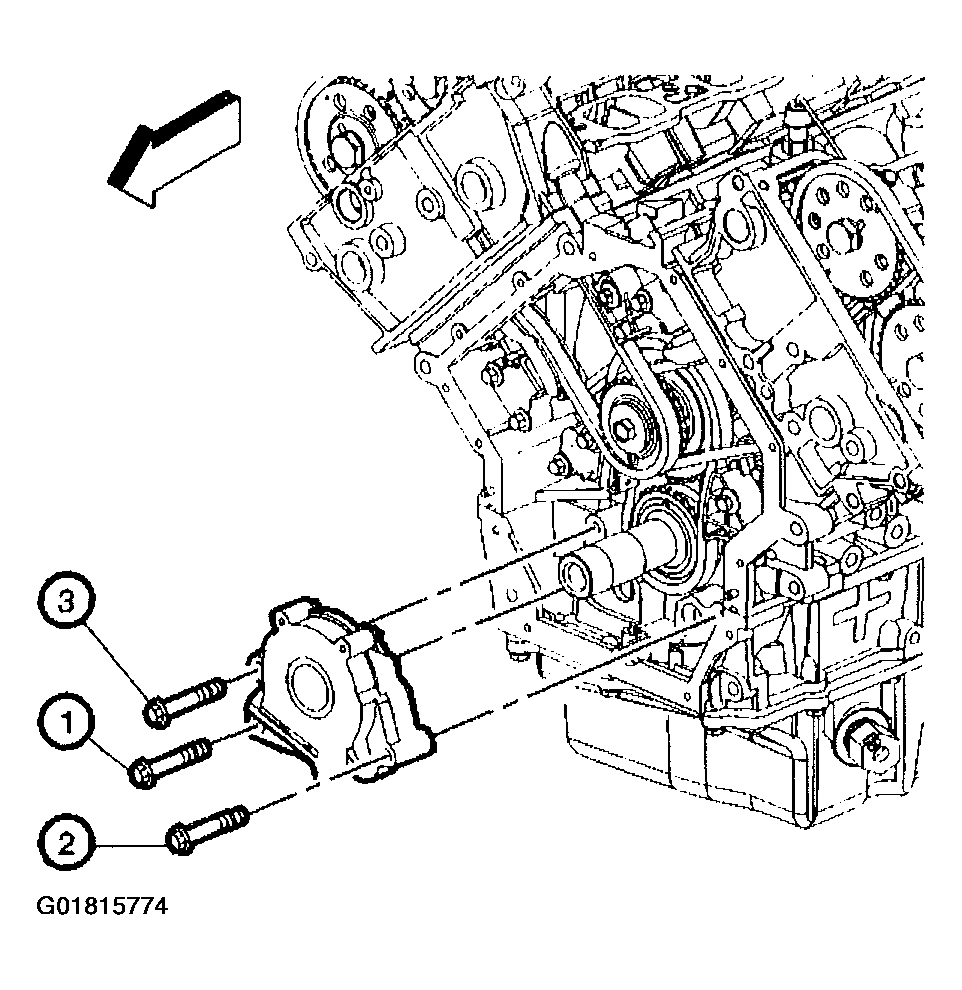

    Fig 1: Removing Oil Pump
    G01815774Courtesy of GENERAL MOTORS CORP.
