Oil Pump Pipe and Screen Assembly Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the silicone seal in the oil manifold plate. With a twisting motion, install the end of the oil pump pick-up tube (2).
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the oil pump pick-up retaining bolt (1) and nut (3).

    Tighten

    • Tighten the oil pump pick-up tube nut to 24 N.m (18 ft lbs).
    • Tighten the oil pump pick-up tube bolt to 10 N.m (89 in lbs).

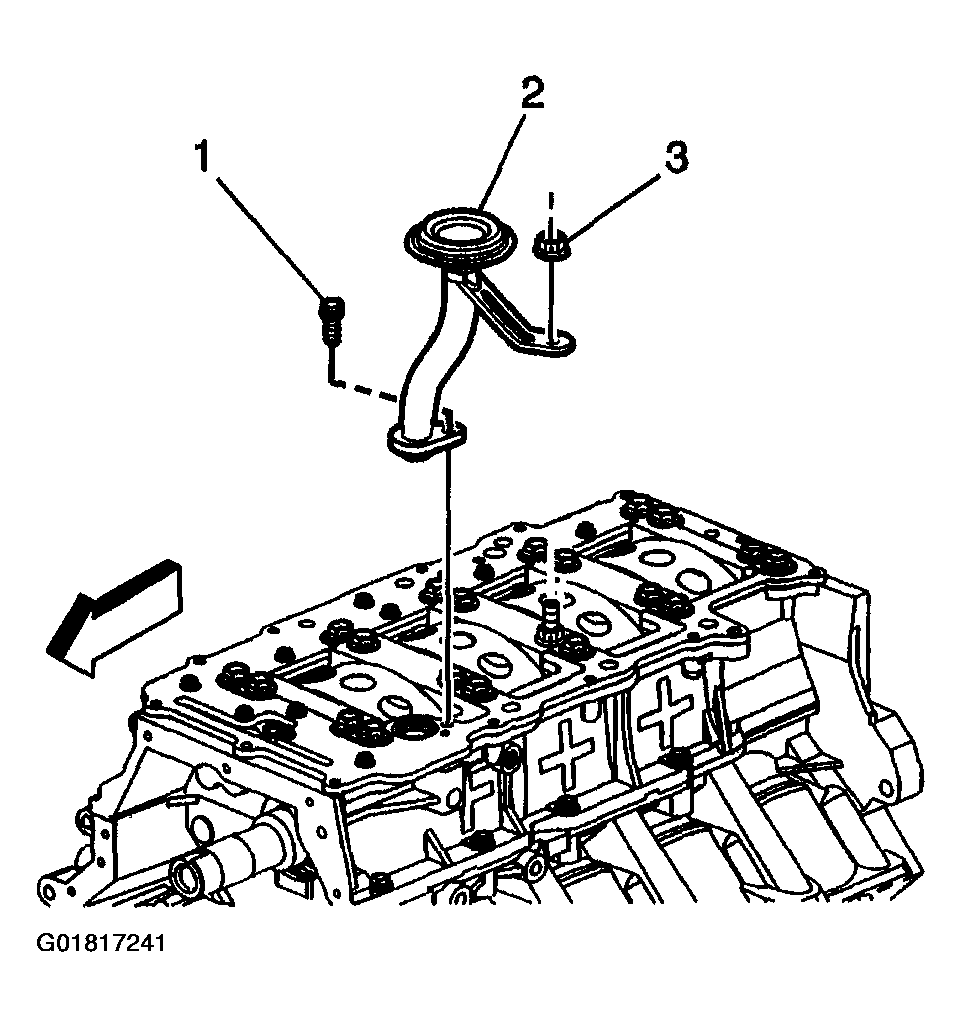

    Fig 1: Installing Oil Pump Pick-Up Tube
    G01817241Courtesy of GENERAL MOTORS CORP.
