Cleaning Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the oil pump components (1-8) with non-corrosive solvent.
    WARNING: Wear safety glasses in order to avoid eye damage.
  2. Dry the oil pump components with compressed air.

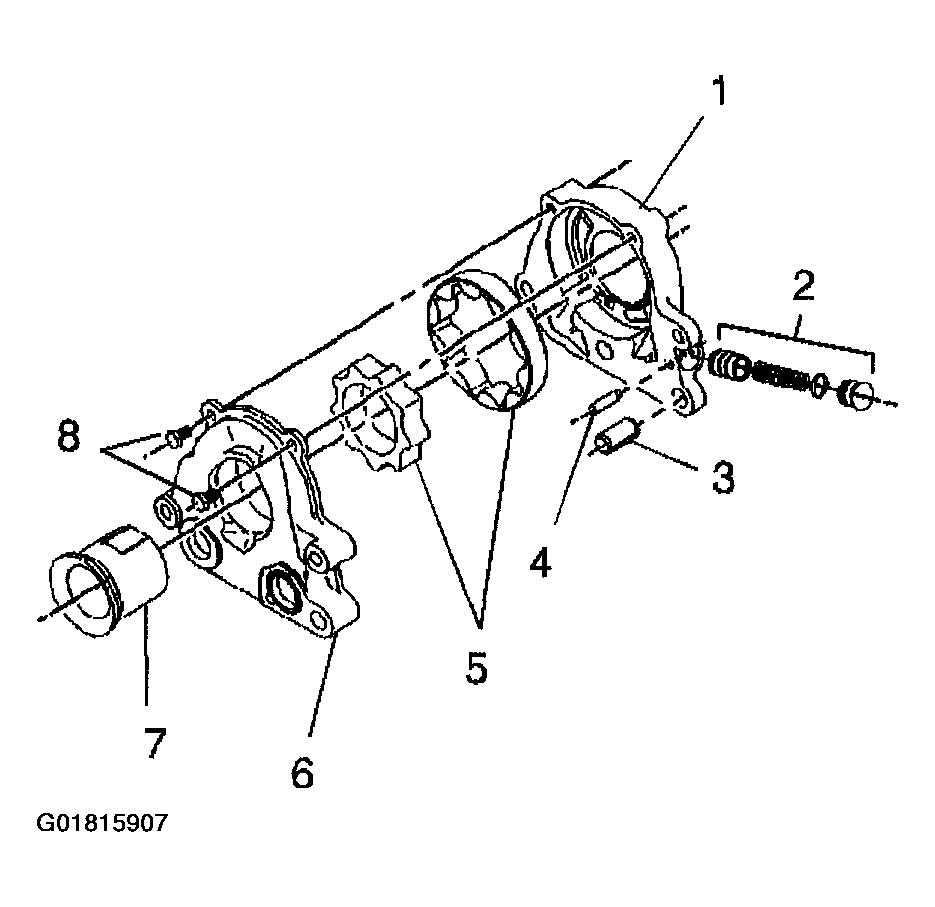

    Fig 1: Exploded View Of Oil Pump Assembly
    G01815907Courtesy of GENERAL MOTORS CORP.
