Oil Pan Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the oil level switch (1).

    Tighten

    Tighten the oil level switch (1) to 20 N.m (15 ft lbs).

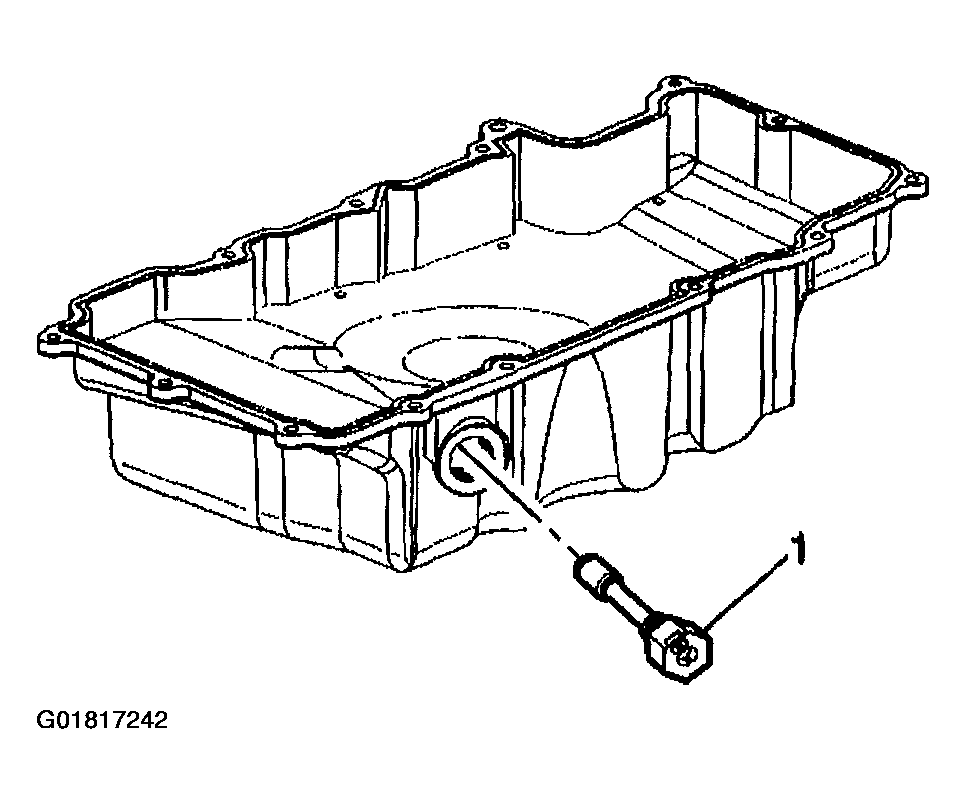

    Fig 1: Installing Oil Level switch
    G01817242Courtesy of GENERAL MOTORS CORP.
  2. If required, install a new oil pan seal using the following procedure:
    1. 2.1. Clean any residual oil from the seal groove.
    2. 2.2. Start the seal into the pan groove and work the seal into the groove in both directions around the pan.
    3. 2.3. If the seal is exposed to oil, it will no longer stay in the groove. If this condition exists, replace the seal.
  3. Position the oil pan onto the lower crankcase.

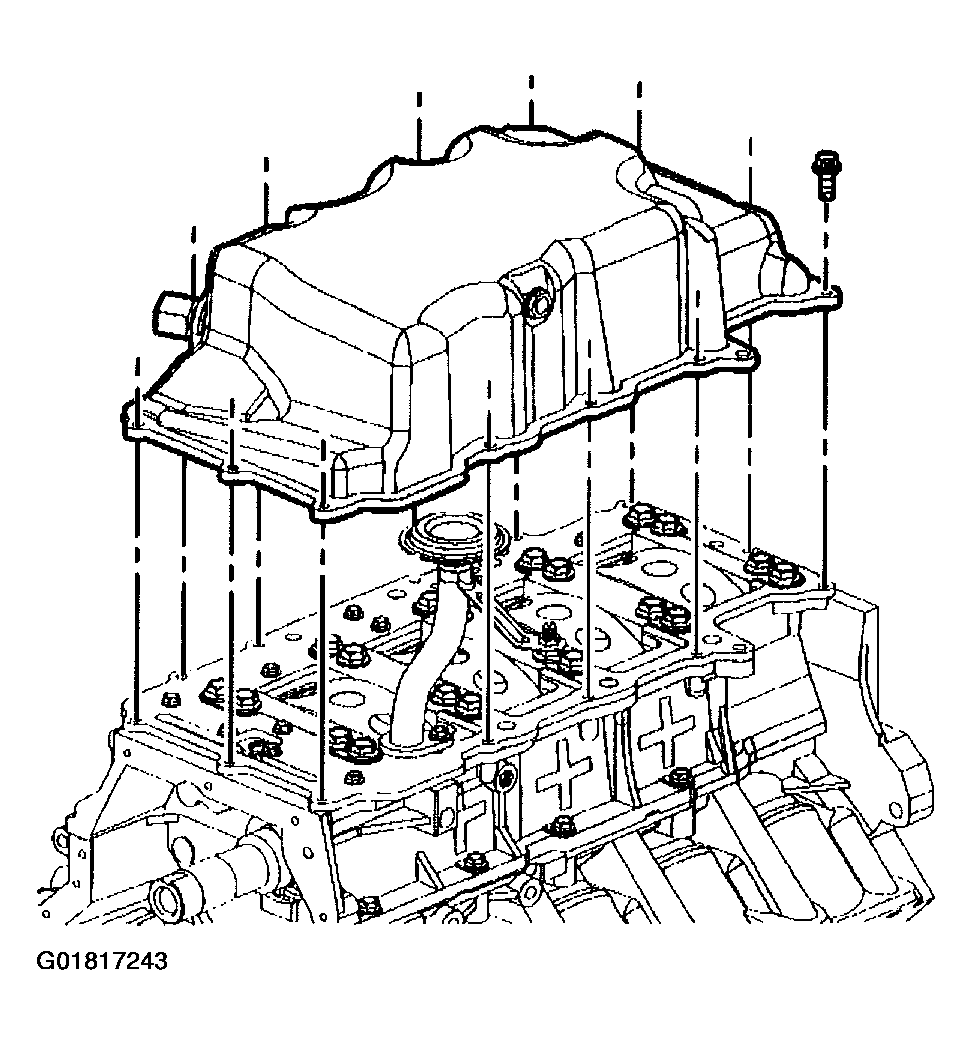

    Fig 2: Installing New Oil Pan Seal
    G01817243Courtesy of GENERAL MOTORS CORP.
  4. Install the oil pan retaining bolts.

    Tighten

    Tighten the oil pan retaining bolts to 10 N.m (89 in lbs) in the sequence shown.

  5. Install the oil drain plug.

    Tighten

    Tighten the oil drain plug to 20 N.m (15 ft lbs).

  6. Rotate the engine so that the engine valley is facing upward.

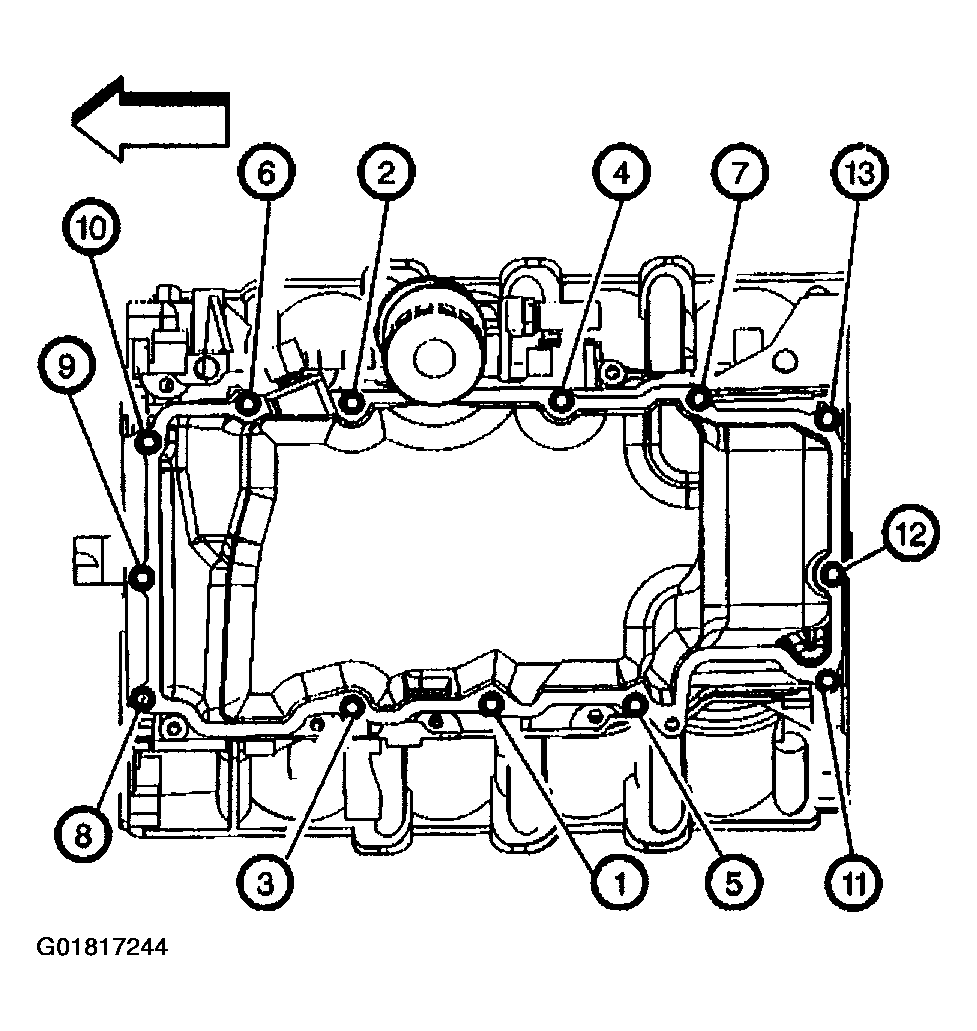

    Fig 3: Identifying Oil Pan Retaining Bolts Tightening Sequence
    G01817244Courtesy of GENERAL MOTORS CORP.
