Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the NEW O-ring on the oil level indicator tube.
  2. Install the oil level indicator tube.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the oil level indicator tube nut.

    Tighten

    Tighten the oil level indicator tube nut to 10 N.m (89 in lbs).

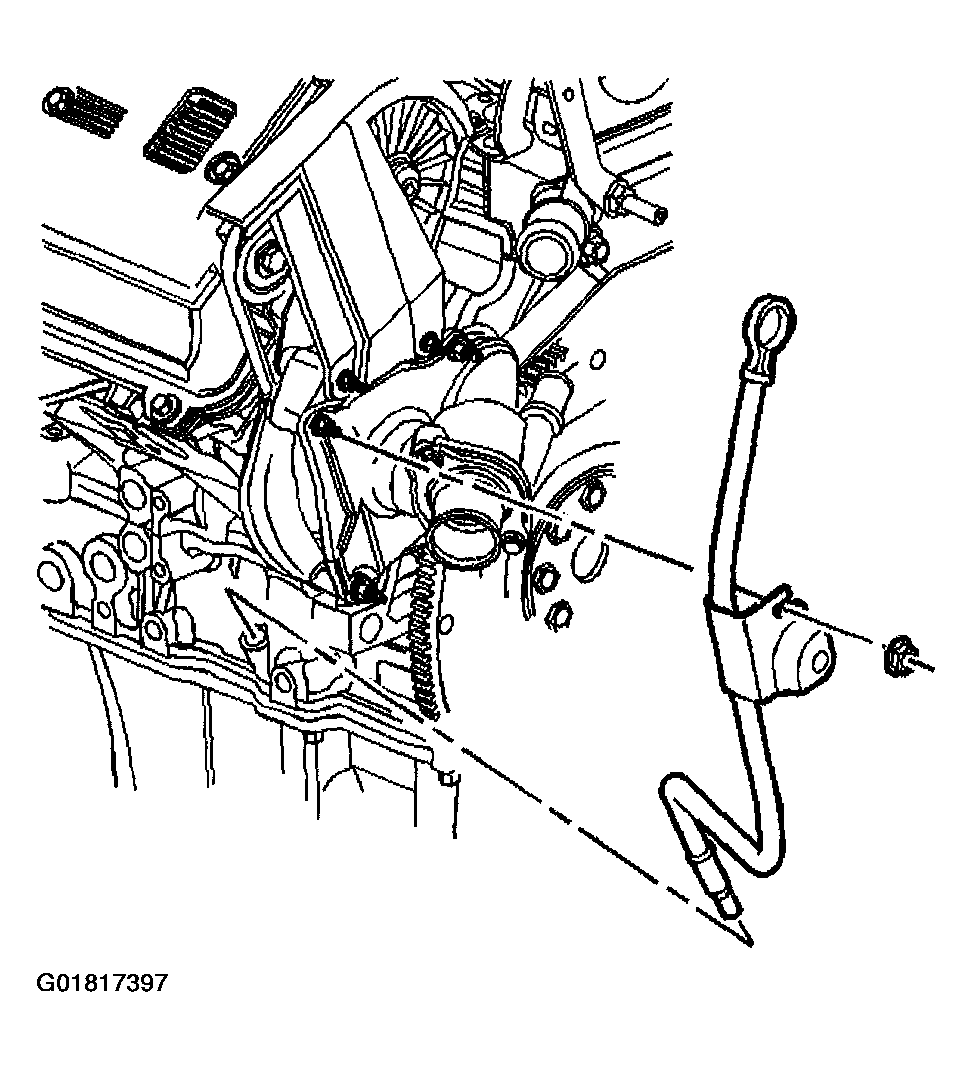

    Fig 1: Installing Oil Level Indicator & Tube
    G01817397Courtesy of GENERAL MOTORS CORP.
