Engine Front Cover Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a small amount of sealant GM P/N US 12345739, Canada 10953541, or equivalent at the split line of the upper and lower crankcases (1).

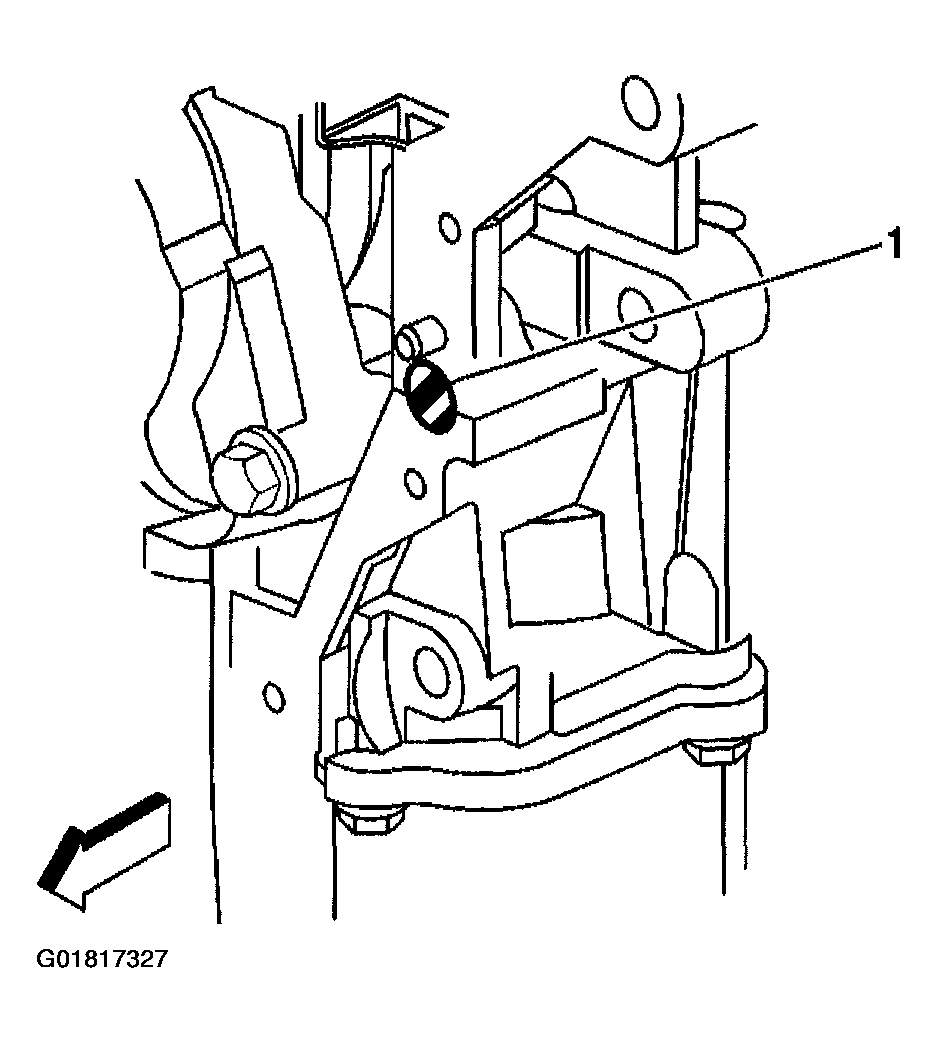

    Fig 1: Locating Upper & Lower Crankcases Split Line
    G01817327Courtesy of GENERAL MOTORS CORP.
  2. Place the front cover gasket over the crankcase dowel pins.
  3. Place the front cover in position on the crankcase.
  4. Install the front cover retaining bolts.

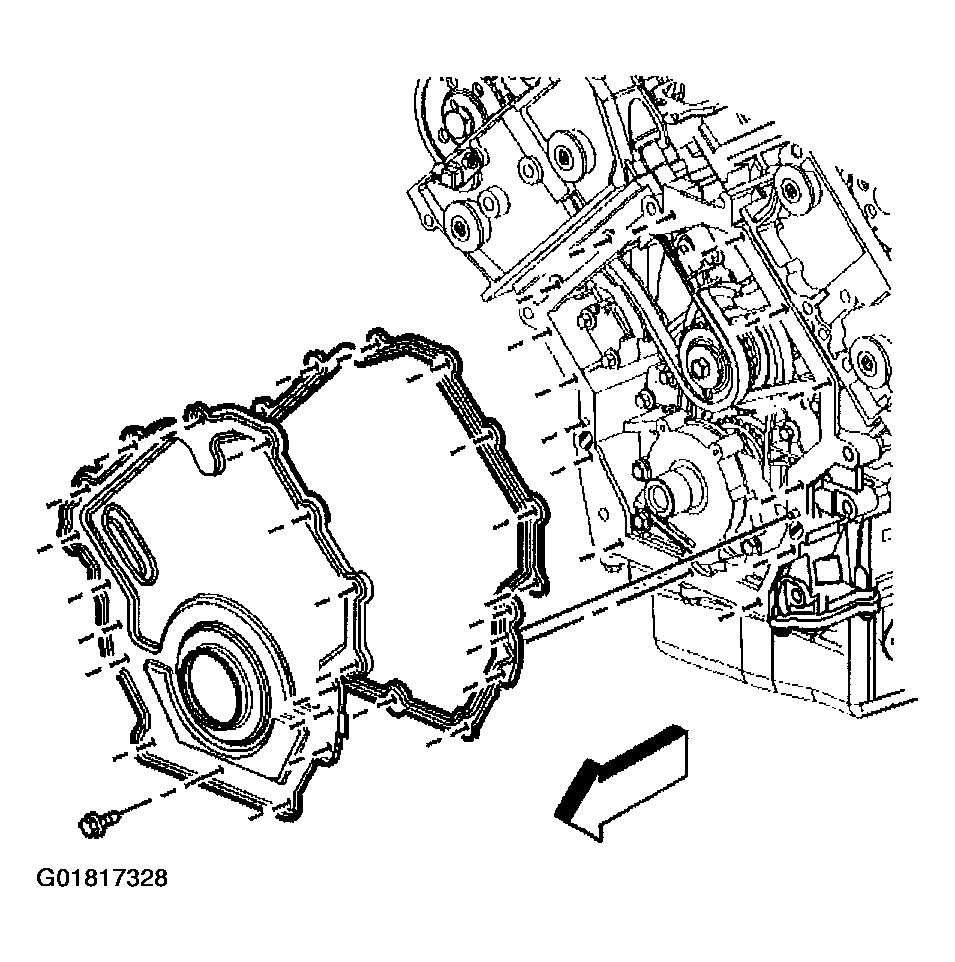

    Fig 2: Installing Front Cover & Gasket
    G01817328Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Tighten the front cover retaining bolts in the sequence shown.

    Tighten

    Tighten the front cover retaining bolts in proper sequence to 10 N.m (89 in lbs).

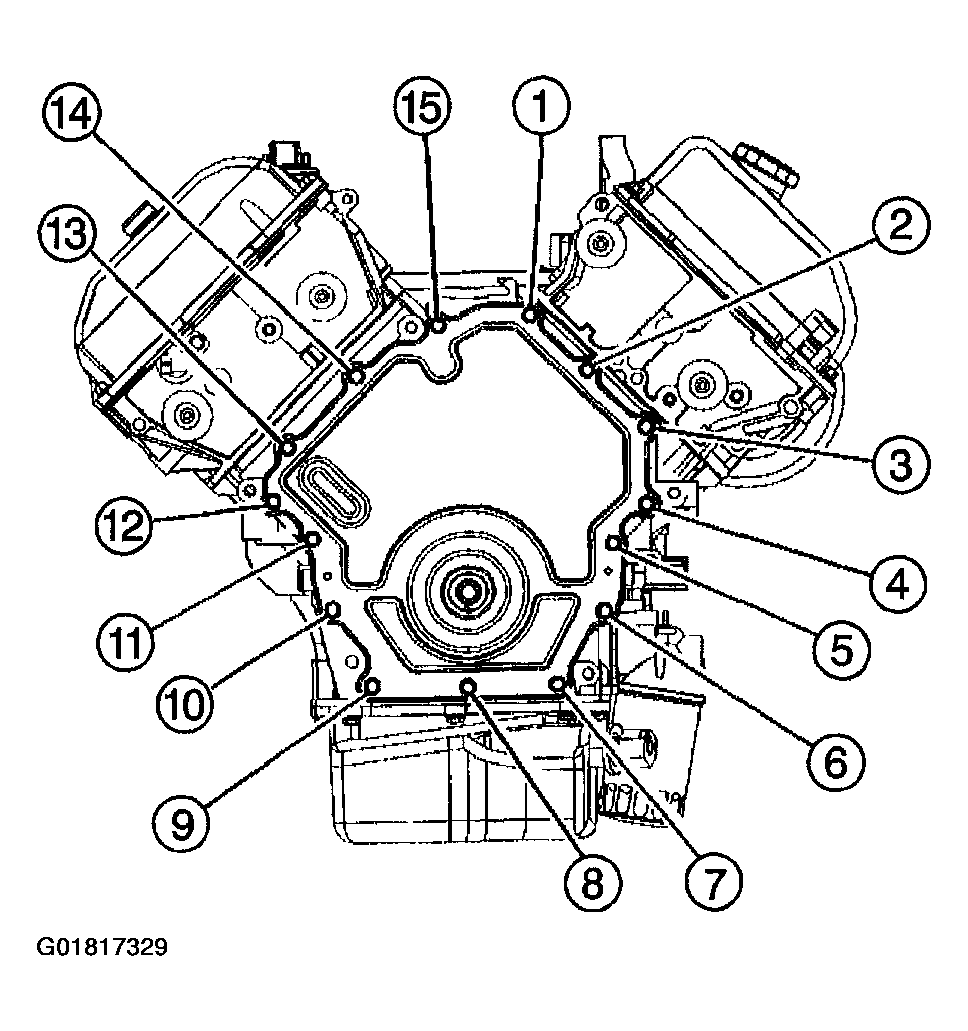

    Fig 3: Identifying Front Cover Bolt Tightening Sequence
    G01817329Courtesy of GENERAL MOTORS CORP.
