Drive Belt Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route the accessory drive belt around the crankshaft (5), the air conditioning compressor (4), the idler (3), the generator (2), and the drive belt tensioner (6) pulleys.
  2. Insert a 1/2 inch drive ratchet into the drive belt tensioner (6).
  3. Rotate the tensioner clockwise.
  4. Route the remainder of the belt around the power steering pulley (1).
  5. Slowly rotate the drive belt tensioner counter clockwise until the drive belt is tight.
  6. Remove the 1/2 inch drive ratchet.
  7. Check the drive belt for proper seating in all pulleys.

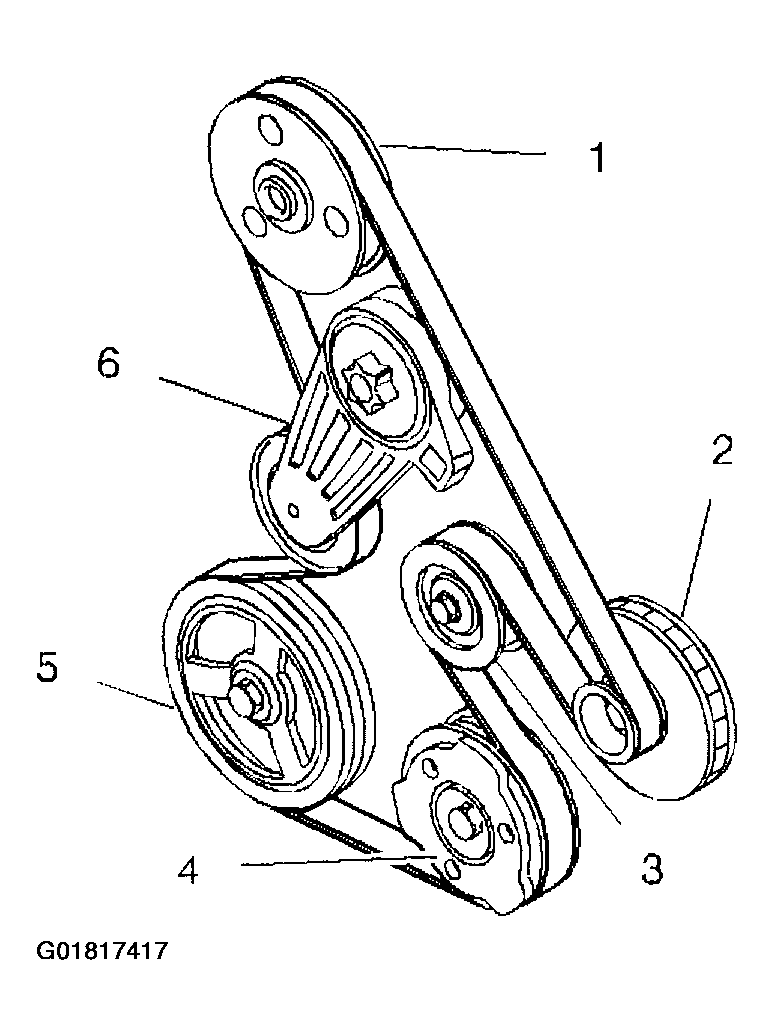

    Fig 1: Identifying Drive Belt Routing
    G01817417Courtesy of GENERAL MOTORS CORP.
