Drive Belt Idler Pulley Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the drive belt idler pulley and bolt in position.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Tighten the drive belt idler pulley bolt.

    Tighten

    Tighten the drive belt idler pulley bolt to 50 N.m (37 ft lbs).

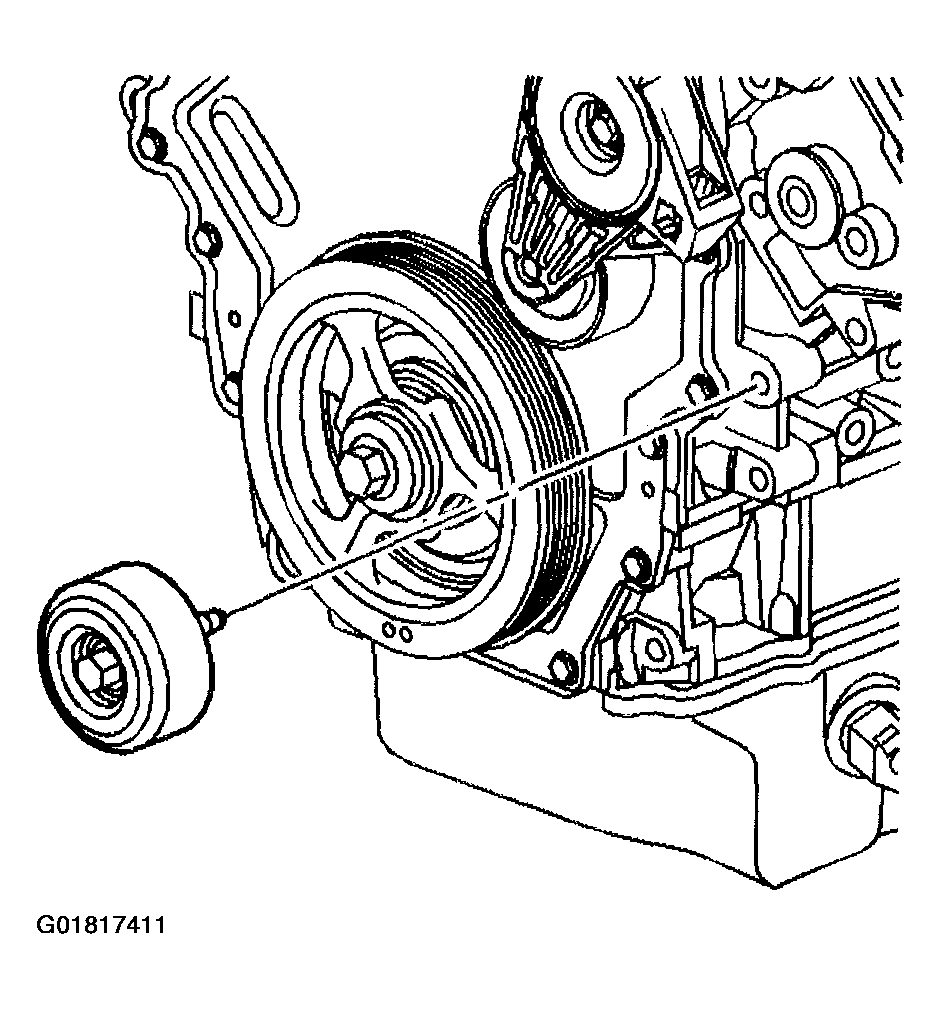

    Fig 1: Installing Drive Belt Idler Pulley
    G01817411Courtesy of GENERAL MOTORS CORP.
