Tools Required

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the valve stem with clean engine oil.
  2. Insert the valve into the valve guide until it bottoms on the valve seat.
  3. Lubricate the new valve seal with engine oil.
  4. Using the J 38820,  install the new valve seal using the following procedure:
    1. 4.1. Place the valve lifter bore protector into the lifter bore.
    2. 4.2. Mount the new valve seal in the J 38820.
    3. 4.3. Push and twist the new valve seal into position on the valve guide until the seal positively locks on the guide.

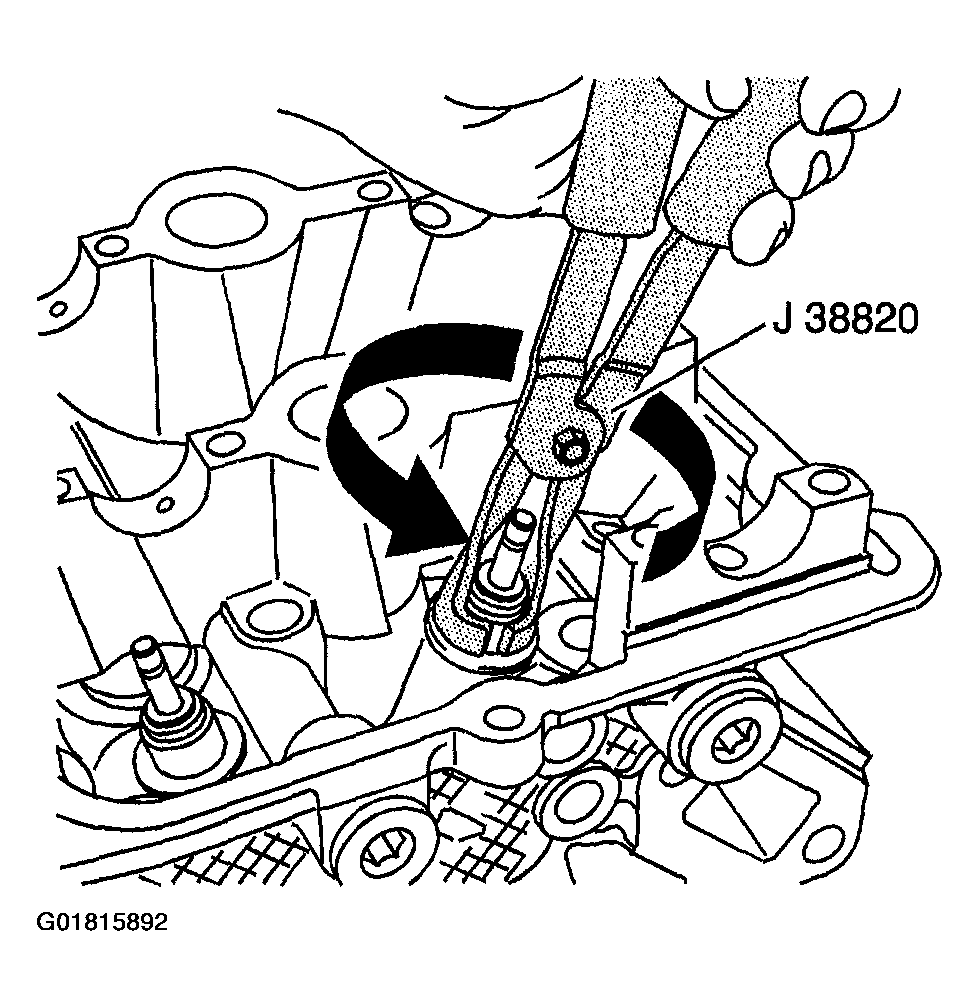

    Fig 1: Installing New Valve Seal
    G01815892Courtesy of GENERAL MOTORS CORP.
  5. Position the valve spring on the spring seat.

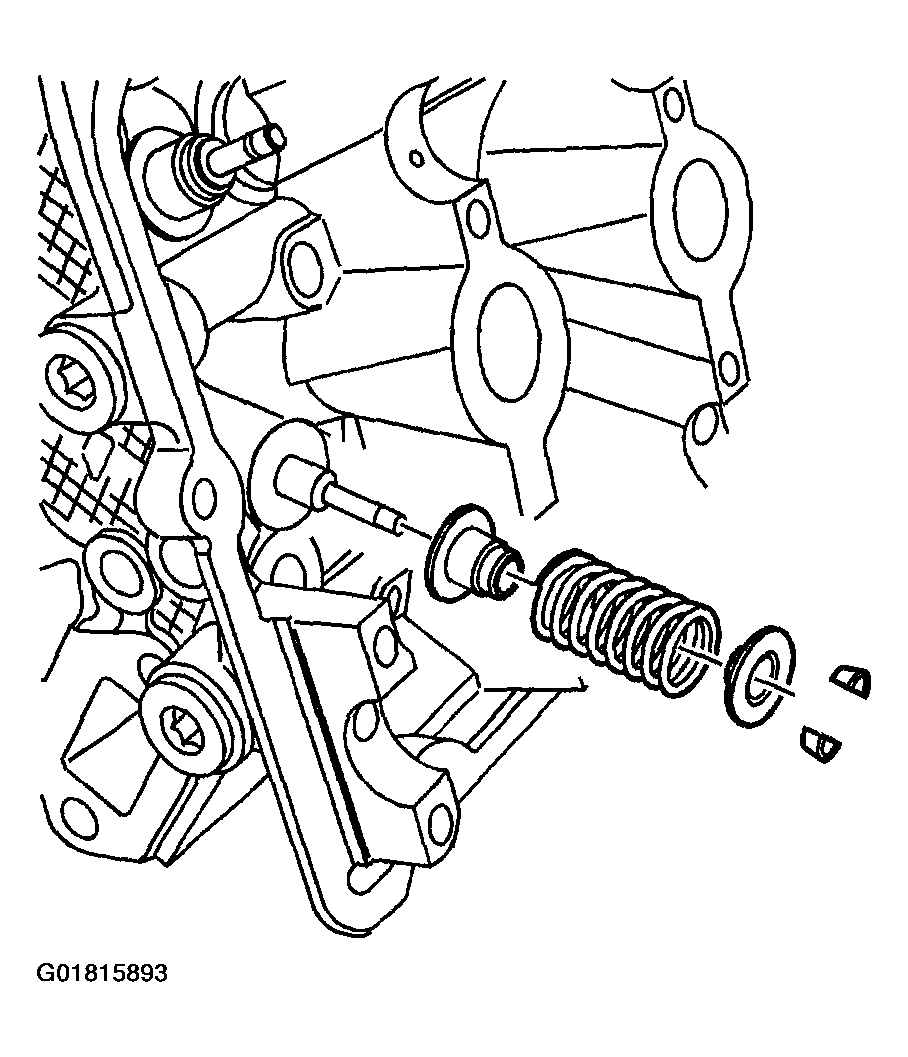

    Fig 2: Positioning Valve Spring
    G01815893Courtesy of GENERAL MOTORS CORP.
    WARNING: Compressed valve springs have high tension against the valve spring compressor. Valve springs that are not properly compressed by or released from the valve spring compressor can be ejected from the valve spring compressor with intense force. Use care when compressing or releasing the valve spring with the valve spring compressor and when removing or installing the valve stem keys. Failing to use care may cause personal injury.
    CAUTION: Do not compress the valve springs less than 24.0 mm (0.943 in). Contact between the valve spring retainer and the valve stem oil seal can cause potential valve stem oil seal damage.
  6. Compress the valve spring using the J 8062  and the J 38821.

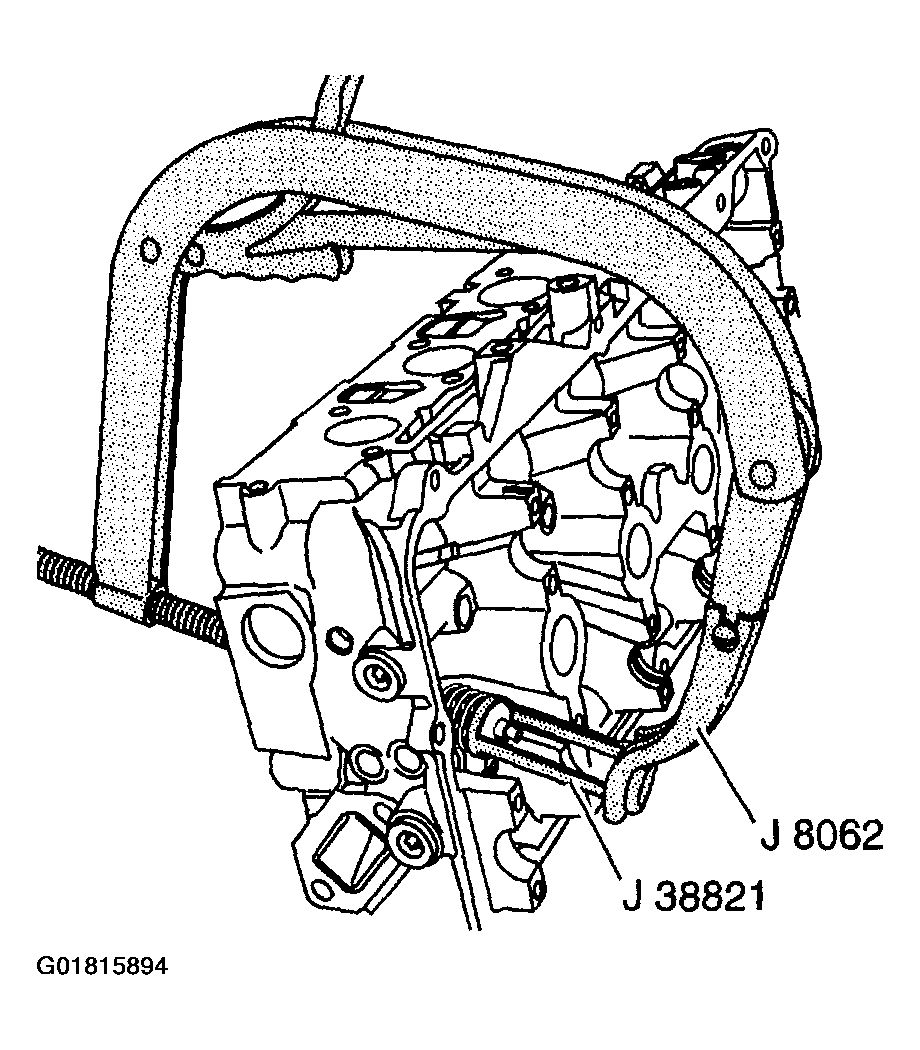

    Fig 3: Compressing Valve Spring
    G01815894Courtesy of GENERAL MOTORS CORP.
  7. With the spring compressed, install the valve keepers into the J 43059.

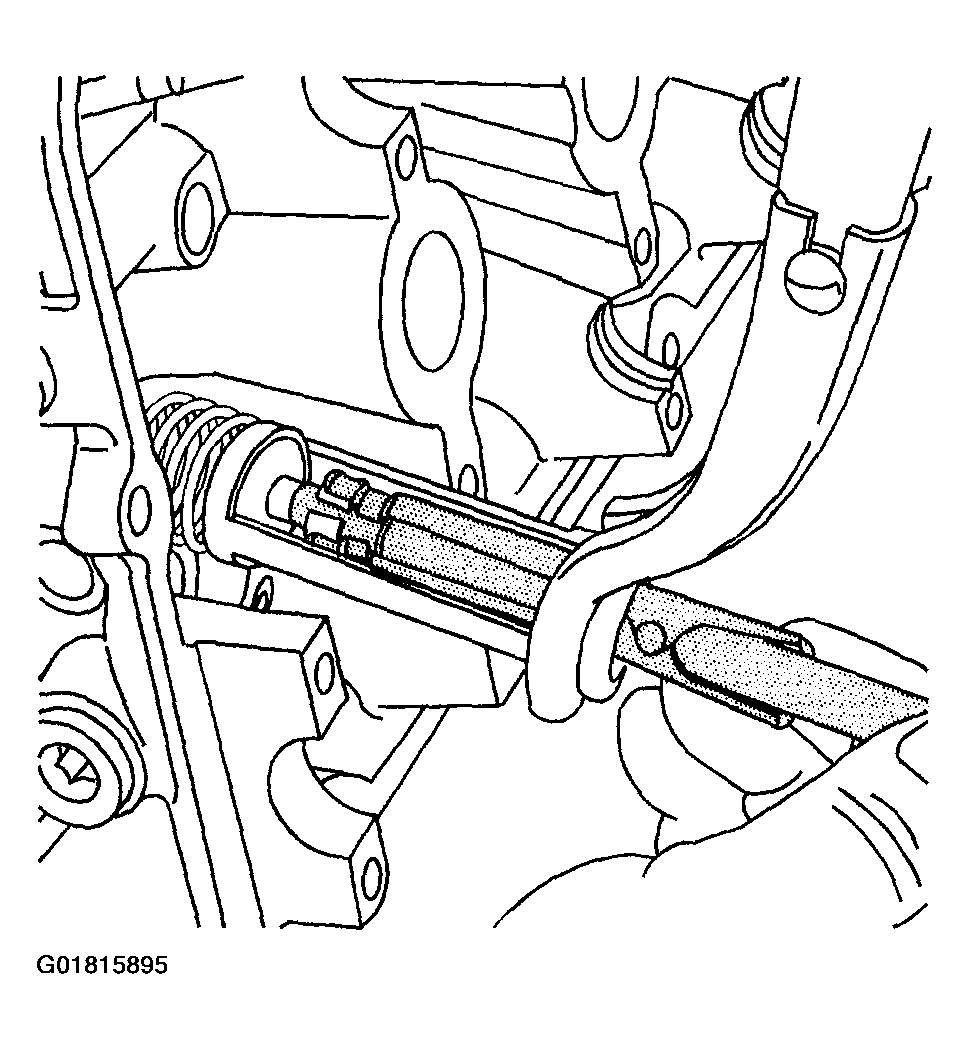

  8. Fig 4: Installing Valve Keepers
    G01815895Courtesy of GENERAL MOTORS CORP.
  9. Place the keepers into position by pushing the tool downward.
  10. Release the tension on the spring compressor and remove the J 38821.
  11. Verify that the valve keepers are installed by placing a rag over the valve tip and tapping with a dead-blow hammer. The valve keepers and the spring should remain in place.
  12. Repeat this procedure for the remaining valves.
