Tools Required

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

J 44212 Camshaft Holding Tool

Remove the J 44212 from the right cylinder head camshafts.

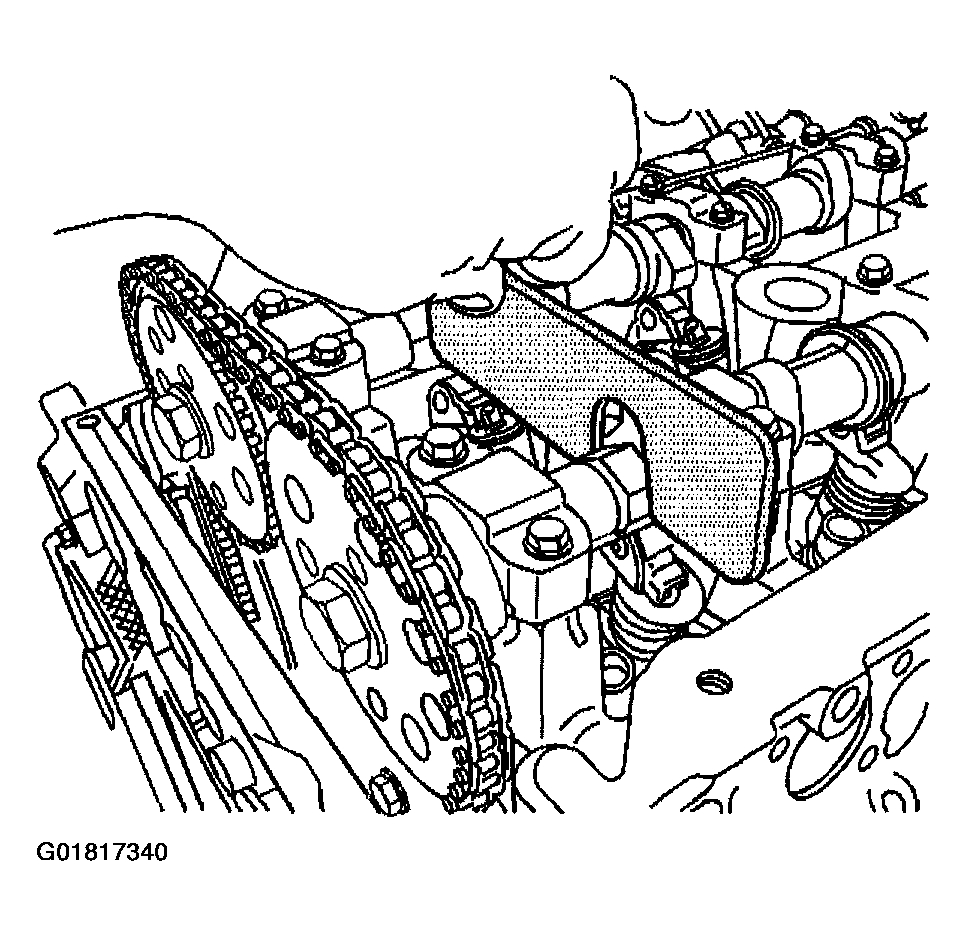

Fig 1: Removing J 44212
Courtesy of GENERAL MOTORS CORP.
Ensure new camshaft cover seals are installed.
Place the right camshaft cover in position on the cylinder head by aligning the bolt holes.
CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
Install the camshaft cover bolts.
Tighten

Tighten the camshaft cover bolts to 10 N.m (89 in lbs).

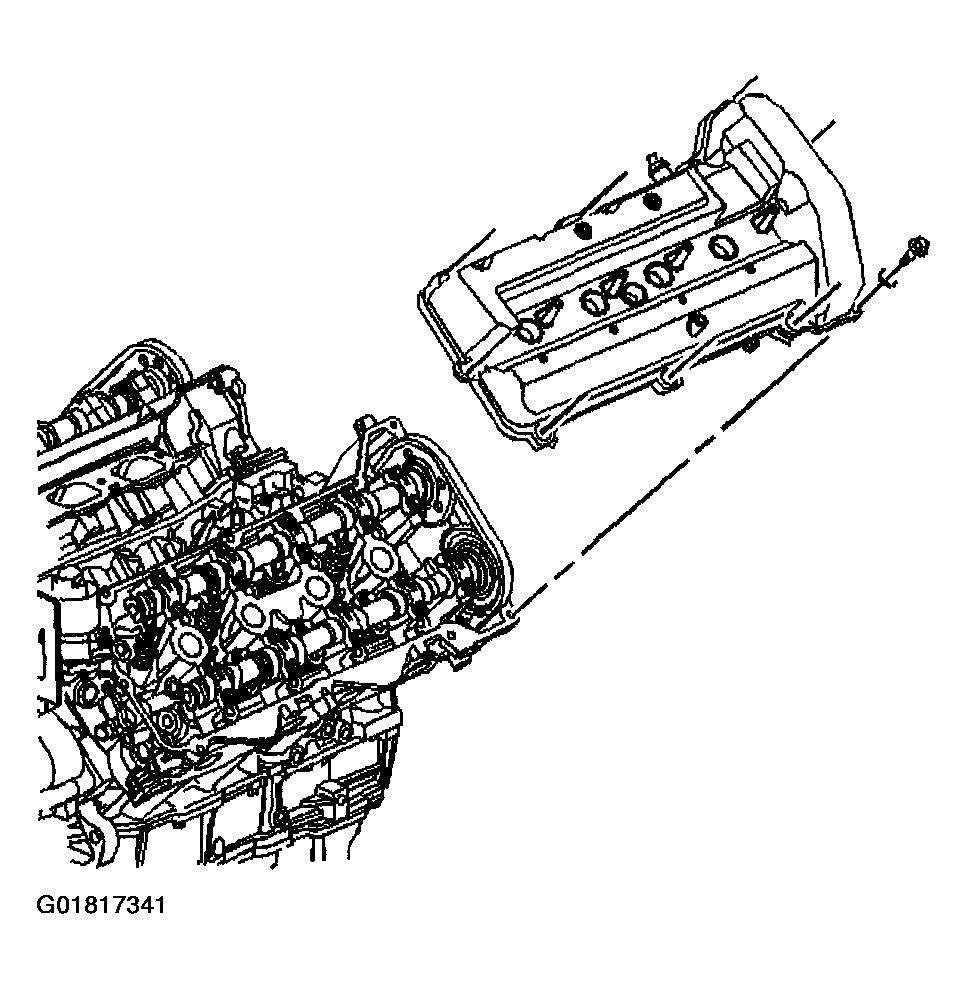

Fig 2: Installing Right Camshaft Cover
Courtesy of GENERAL MOTORS CORP.
