Air Conditioning (A/C) Compressor Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air conditioning compressor front mounting nut and bolt from the compressor.

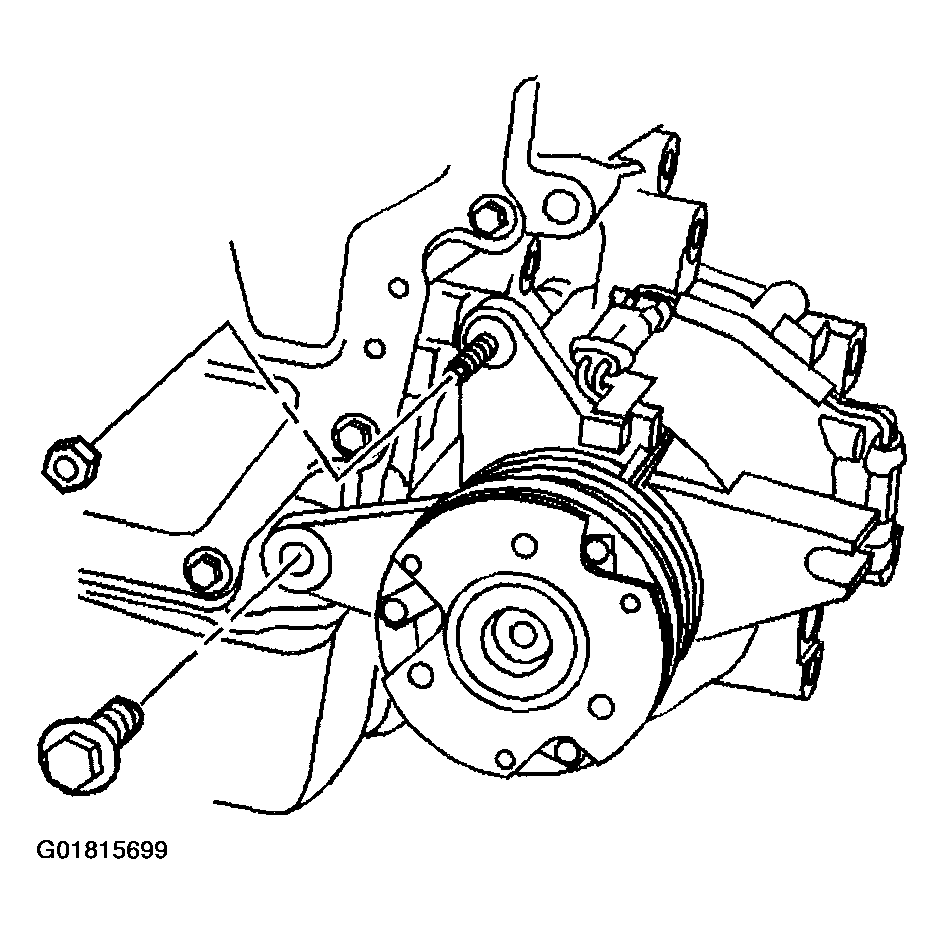

    Fig 1: Removing A/C Compressor Front Mounting But & Bolt
    G01815699Courtesy of GENERAL MOTORS CORP.
  2. Remove the air conditioning compressor side mounting bolts from the compressor.
  3. Remove the air conditioning compressor by sliding off the front mounting stud.
  4. Remove the air conditioning compressor mounting stud.

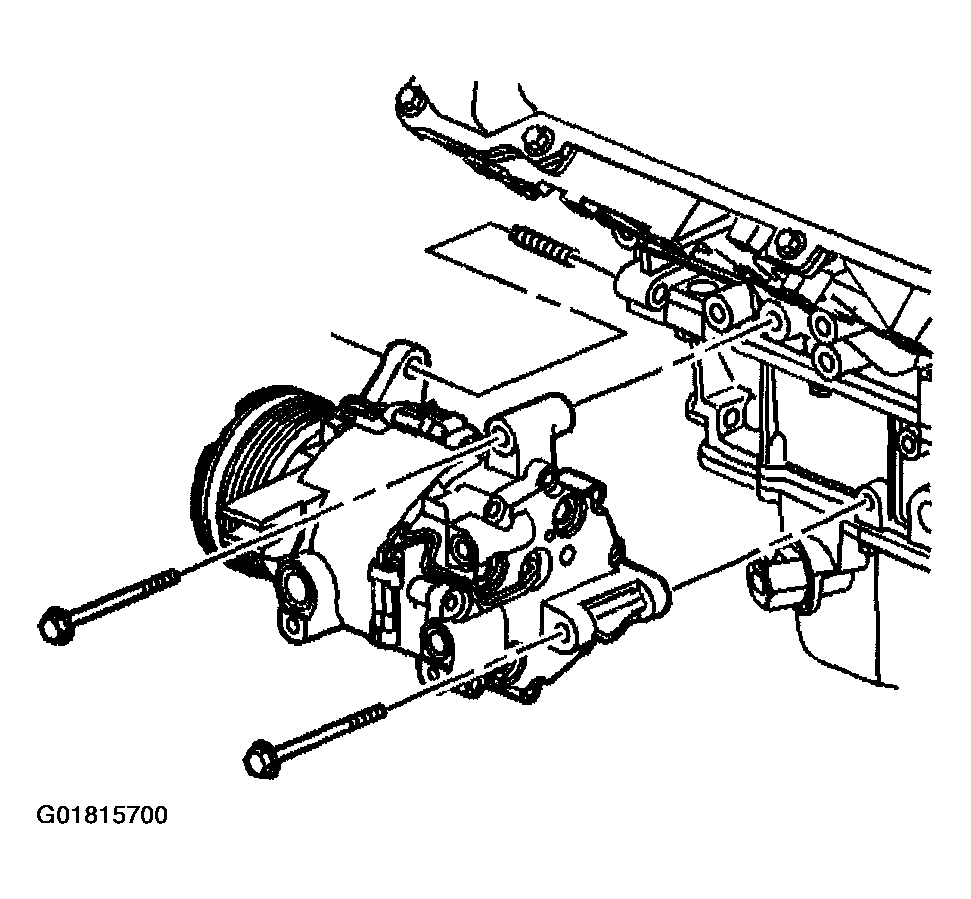

    Fig 2: Removing A/C Compressor
    G01815700Courtesy of GENERAL MOTORS CORP.
