Air Conditioning (A/C) Compressor Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the air conditioning compressor stud.

    Tighten

    Tighten the air conditioning compressor stud to 25 N.m (18 ft lbs).

  2. Slide the air conditioning compressor over the air conditioning compressor stud and hold into position.
  3. Install the air conditioning compressor side bolts finger tight.

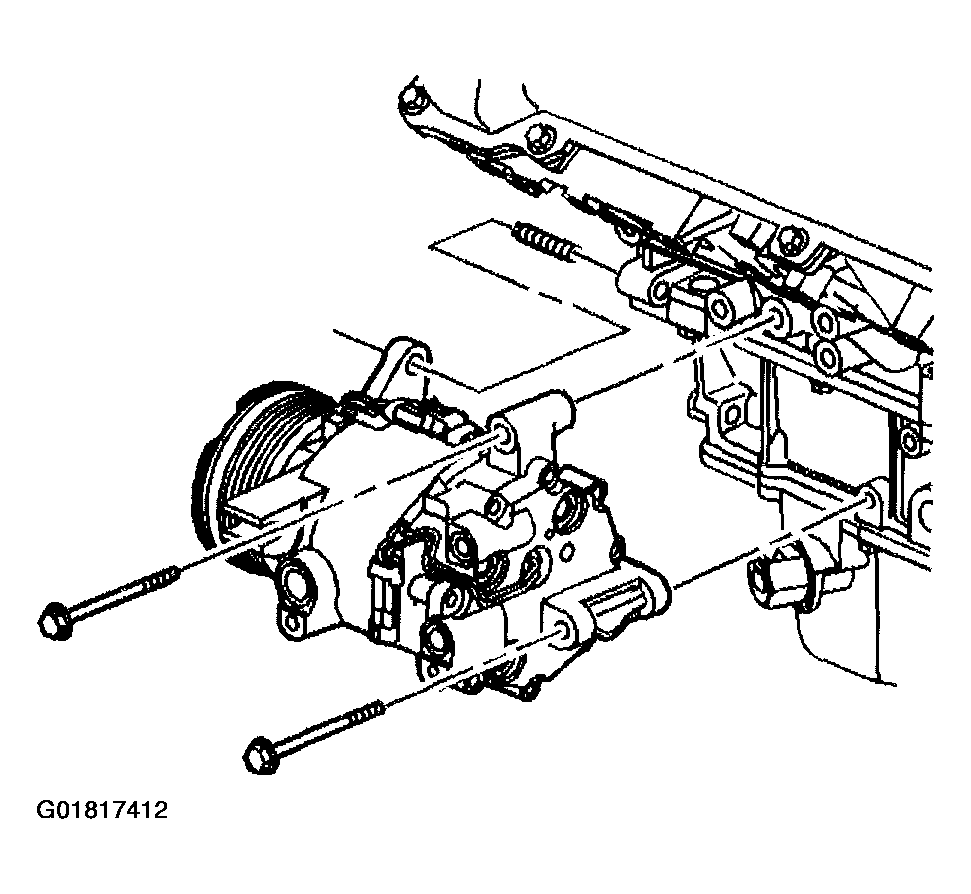

    Fig 1: Installing Air Conditioning Compressor Side Bolts
    G01817412Courtesy of GENERAL MOTORS CORP.
  4. Install the air conditioning compressor front bolt and nut finger tight.
  5. Tighten the air conditioning compressor bolts and nut in the following sequence:

    Tighten

    1. 5.1. Tighten the air conditioning compressor front nut to 50 N.m (37 ft lbs).
    2. 5.2. Tighten the air conditioning compressor front bolt to 50 N.m (37 ft lbs).
    3. 5.3. Tighten the air conditioning compressor side upper bolt to 50 N.m (37 ft lbs).
    4. 5.4. Tighten the air conditioning compressor side lower bolt to 25 N.m (18 ft lbs).

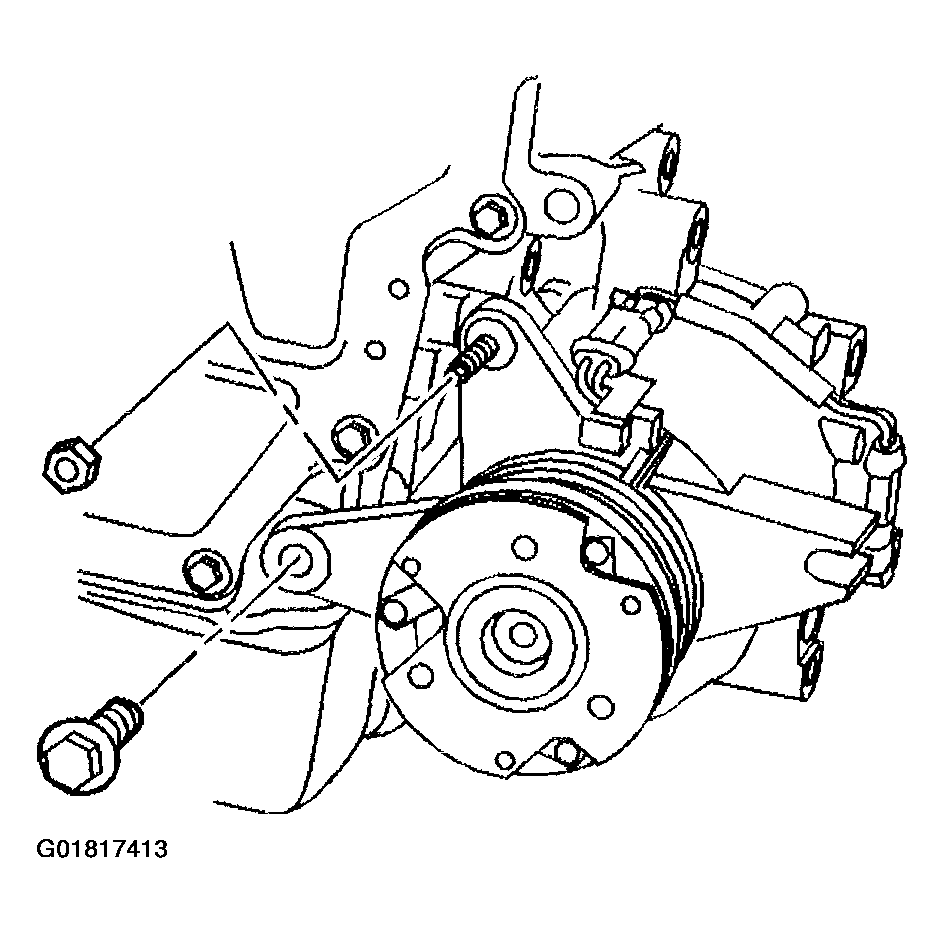

    Fig 2: Tightening Air Conditioning Compressor Bolts
    G01817413Courtesy of GENERAL MOTORS CORP.
