Water Pump Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water pump pulley bolts.
  2. Remove the water pump pulley.

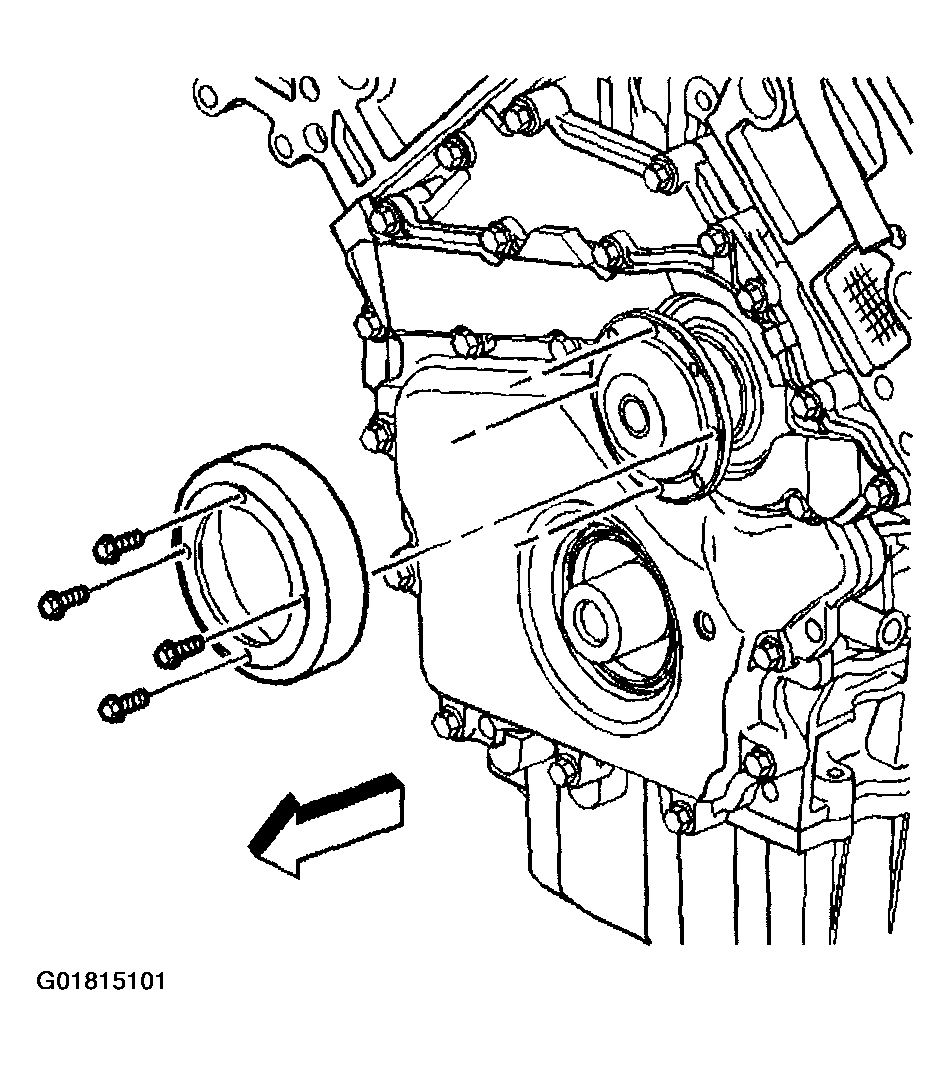

    Fig 1: Removing Water Pump Pulley
    G01815101Courtesy of GENERAL MOTORS CORP.
  3. Remove the water pump bolts (1-13).

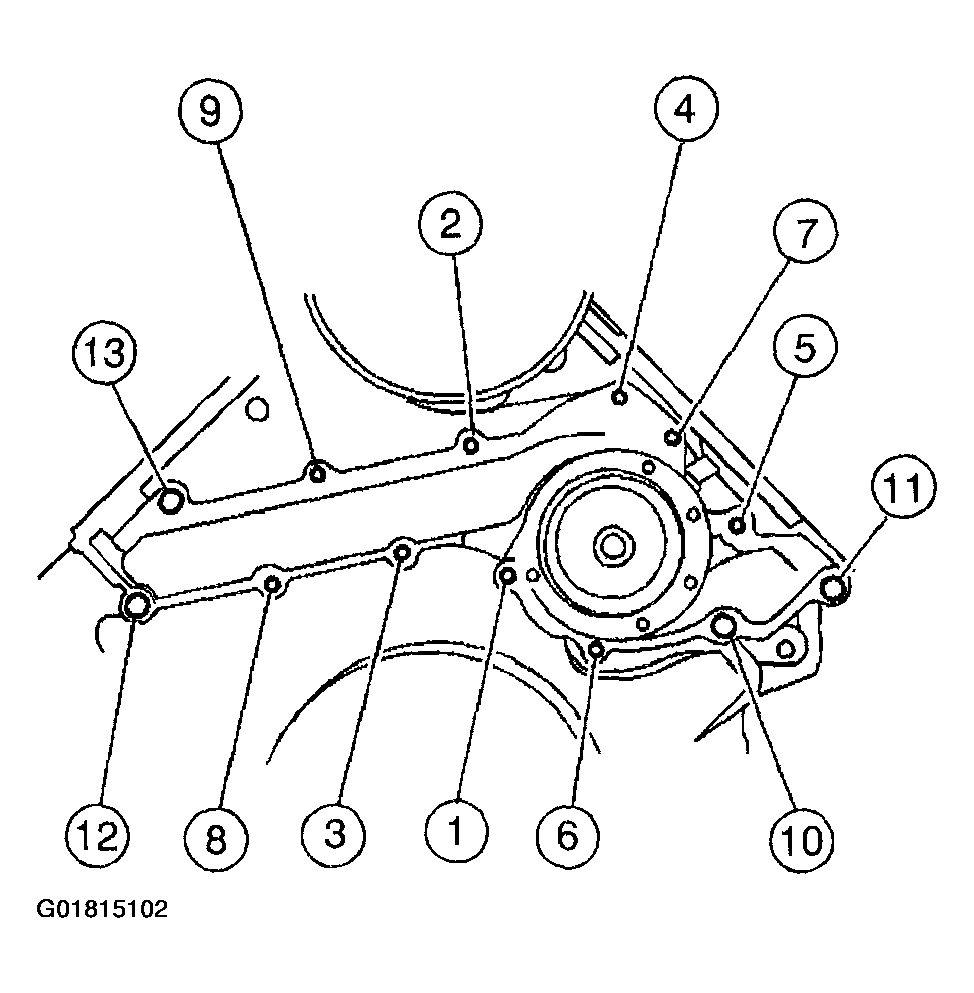

    Fig 2: Identifying Water Pump Bolts
    G01815102Courtesy of GENERAL MOTORS CORP.
  4. Remove the water pump and housing (3) from the front cover (1). DO NOT damage the sealing surface.
  5. Remove the water pump gasket (2). Use a plastic scraper to remove any excess gasket material.
  6. The water pump and housing are one unit and must be serviced as an assembly.

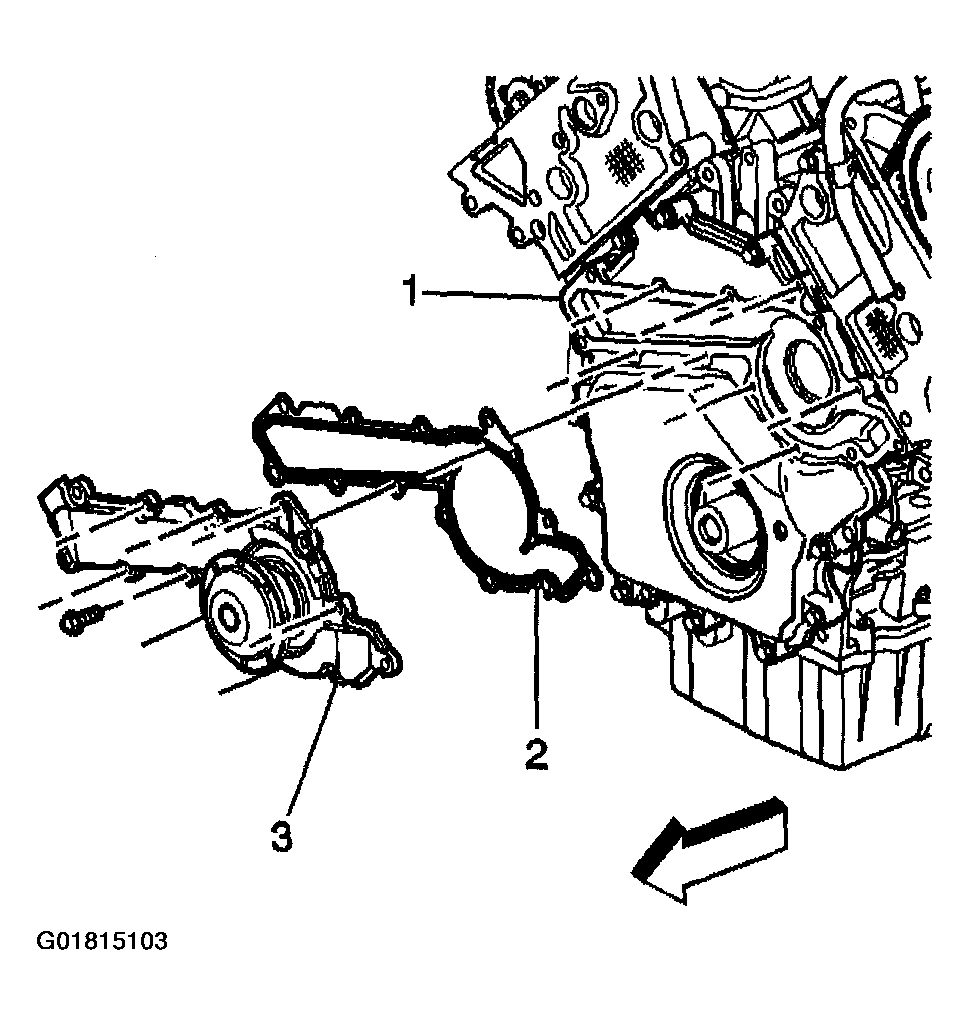

    Fig 3: Removing Water Pump, Housing & Gasket
    G01815103Courtesy of GENERAL MOTORS CORP.
