Water Pump Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that the front cover (1) and water pump (3) are clear of old gasket material.
  2. Place a new water pump gasket (2) on the water pump (3).
  3. Place the water pump in position on the front cover.

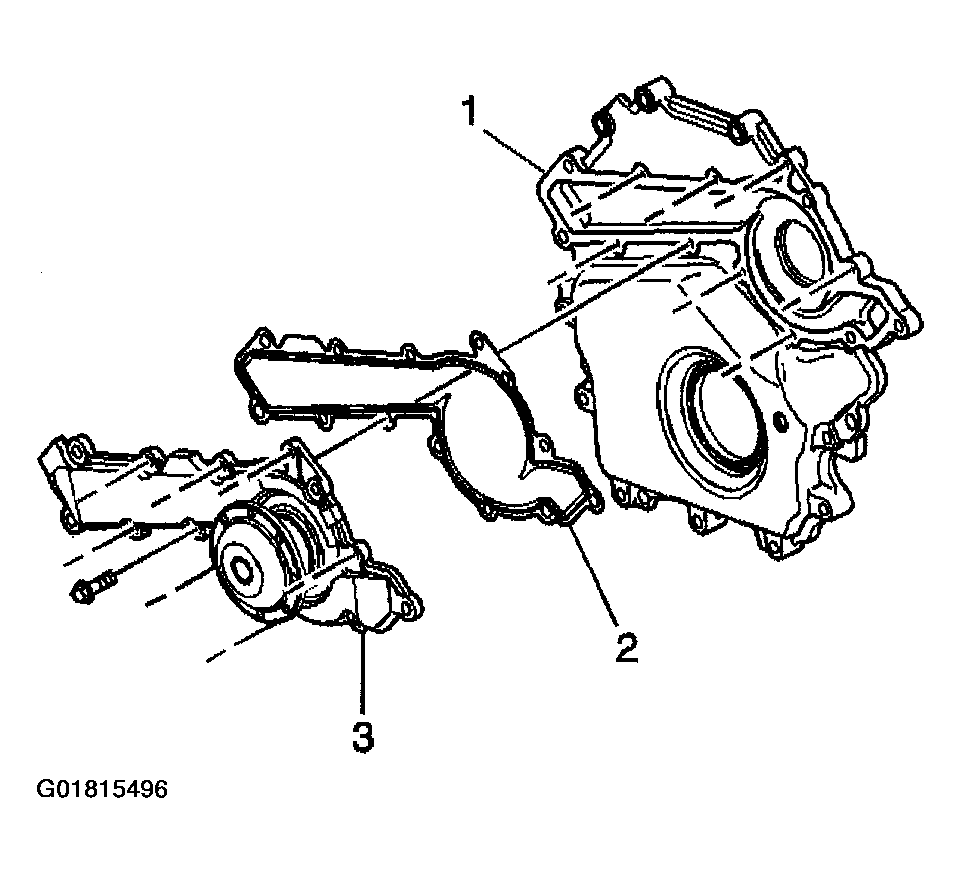

    Fig 1: Identifying Water Pump & Gasket
    G01815496Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to in FASTENER NOTICE .
  4. Install the water pump bolts.

    Tighten

    Tighten the water pump bolts in the sequence shown to 14 N.m (124 in lbs).

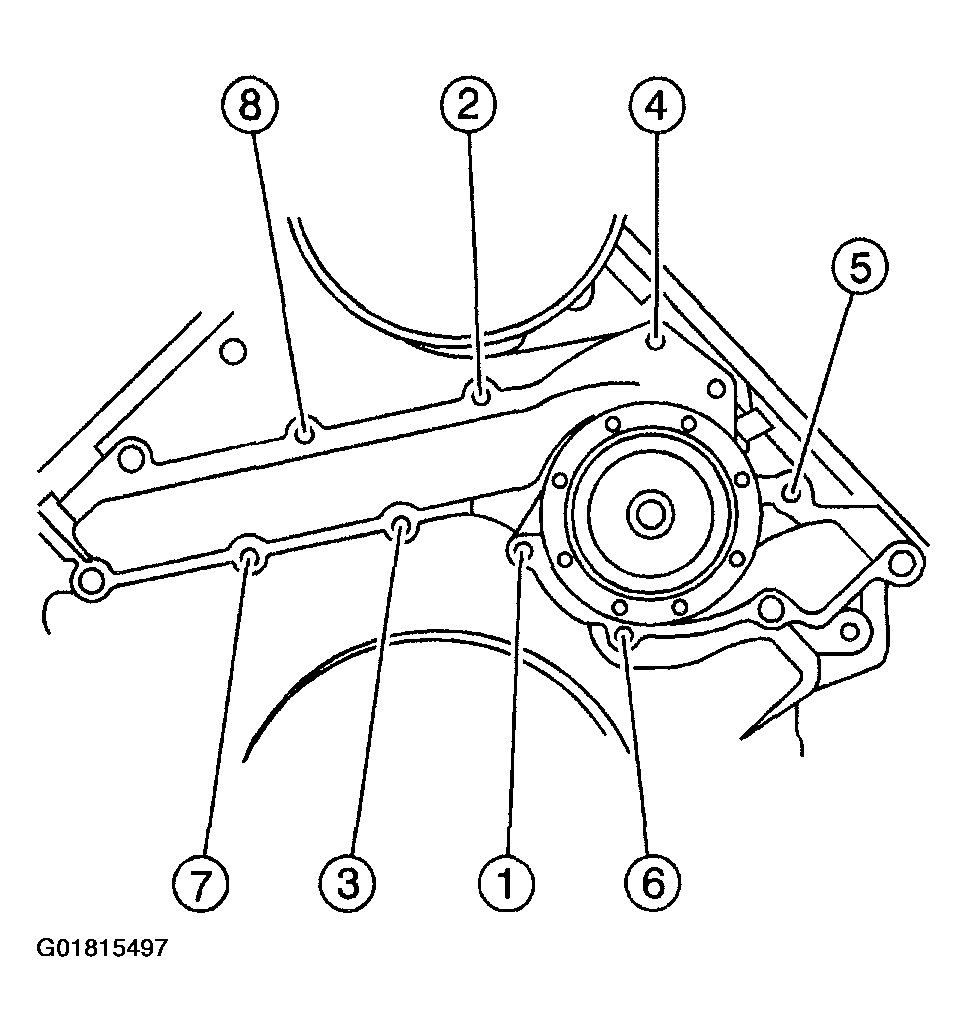

    Fig 2: Identifying Water Pump Bolt Tightening Sequence
    G01815497Courtesy of GENERAL MOTORS CORP.
