Inspection Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

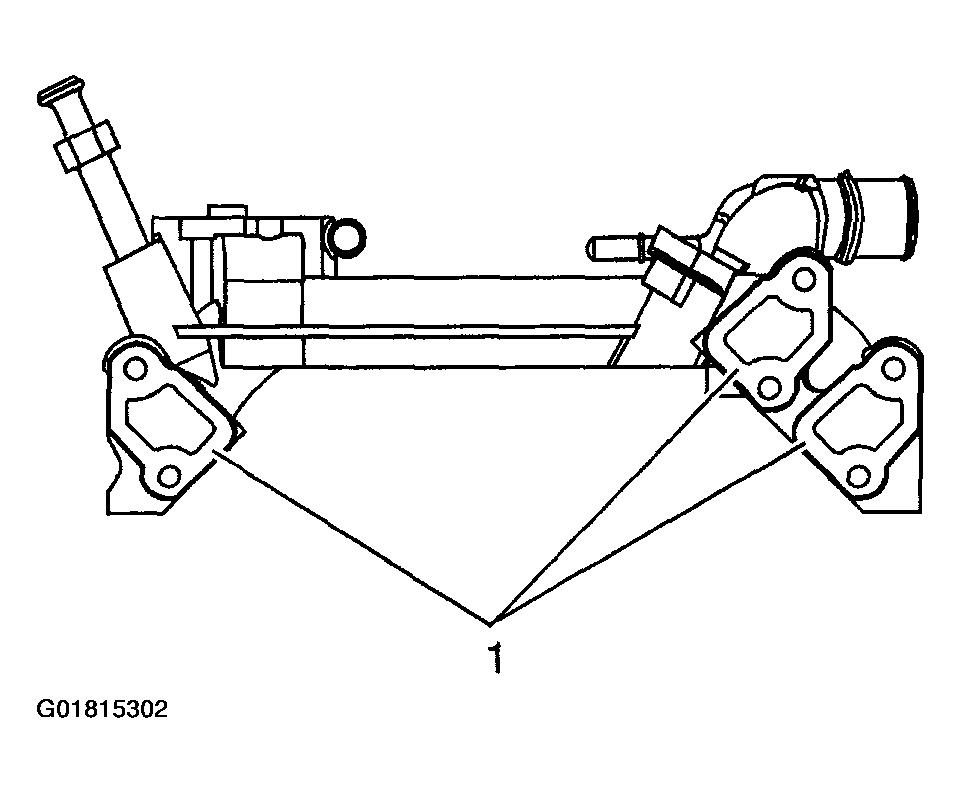

Inspect the water crossover for corrosion or damage to the gasket sealing surfaces (1).

Fig 1: Checking Water Crossover (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

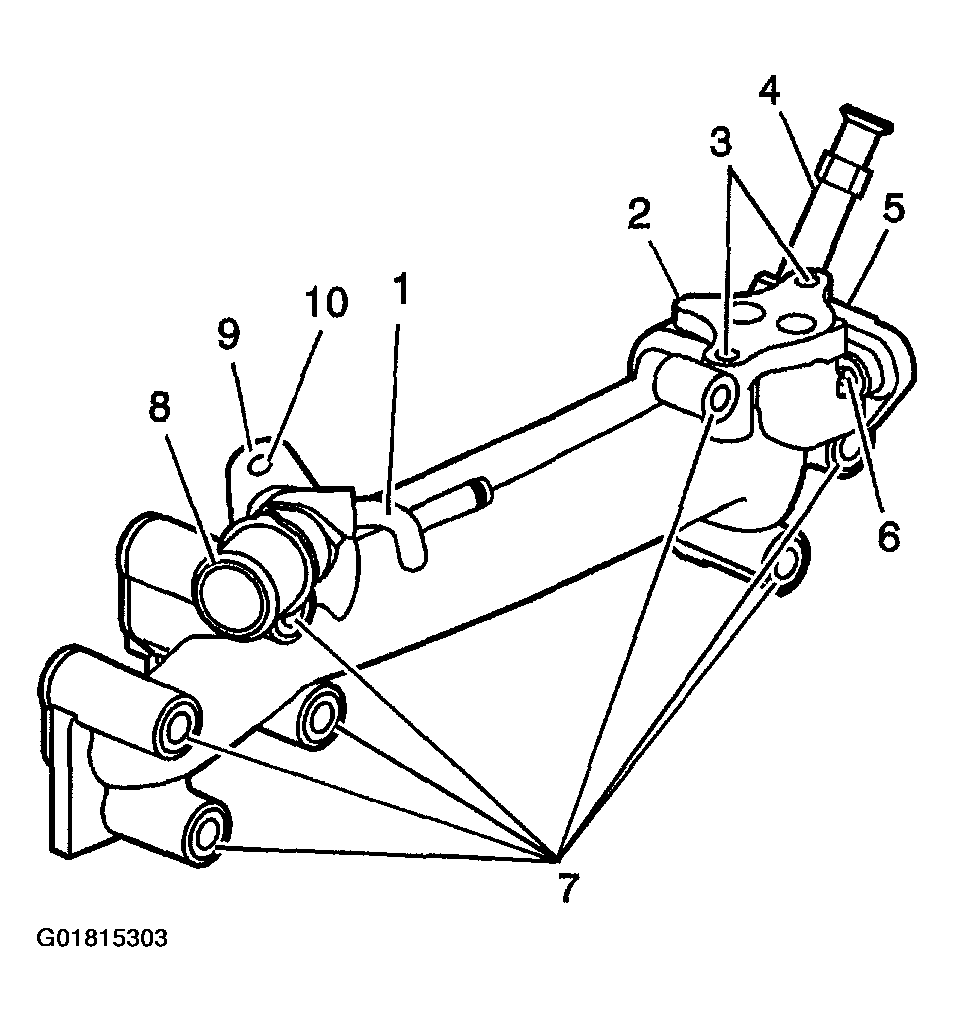

Inspect the water crossover for the following:
- Corrosion or damage to the seal/gasket sealing surfaces for the following:
  - EGR valve (2)
  - EGR inlet pipe (5)
  - EGR outlet pipe (9)
- Corrosion or damage to the threads for the following connections:
  - EGR valve studs (3)
  - EGR inlet pipe bolt (6)
  - EGR outlet pipe bolt (10)
- Corrosion or damage to the throttle body heater pipe (1)
- Corrosion or damage to the heater hose outlet fitting (4)
- Corrosion or damage to the fastener bosses (7)
- Corrosion or damage to the radiator hose outlet (8)
- Corrosion or restrictions within the engine coolant passages
- Corrosion or restrictions within the EGR passages

Fig 2: Checking Water Crossover (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Repair or replace the water crossover as necessary.
