Oil Pump Assemble

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. The dimpled surface must be face-up in the pump body.
    Fig 1: Identifying Outer Rotor Outer Surface
    G01815254Courtesy of GENERAL MOTORS CORP.
  2. Install the inner (5) and the outer rotors (6) in the pump cover in the same orientation as removed. The outer rotor has dimple to indicate the outer surface.
  3. Install the pressure relief valve piston (2) and pressure relief valve spring (3) in the pump housing bore.
    CAUTION: Refer to in FASTENER NOTICE .
  4. Install the pressure relief valve cap (4).

    Tighten

    Tighten the pressure relief valve cap (4) to 11 N.m (97 in lbs).

  5. Pack the pump housing with white petroleum jelly to ensure pump priming.
  6. Assemble the housing (1) and cover (7).
  7. Install the bolts (8).

    Tighten

    Tighten the bolts to 14 N.m (124 in lbs).

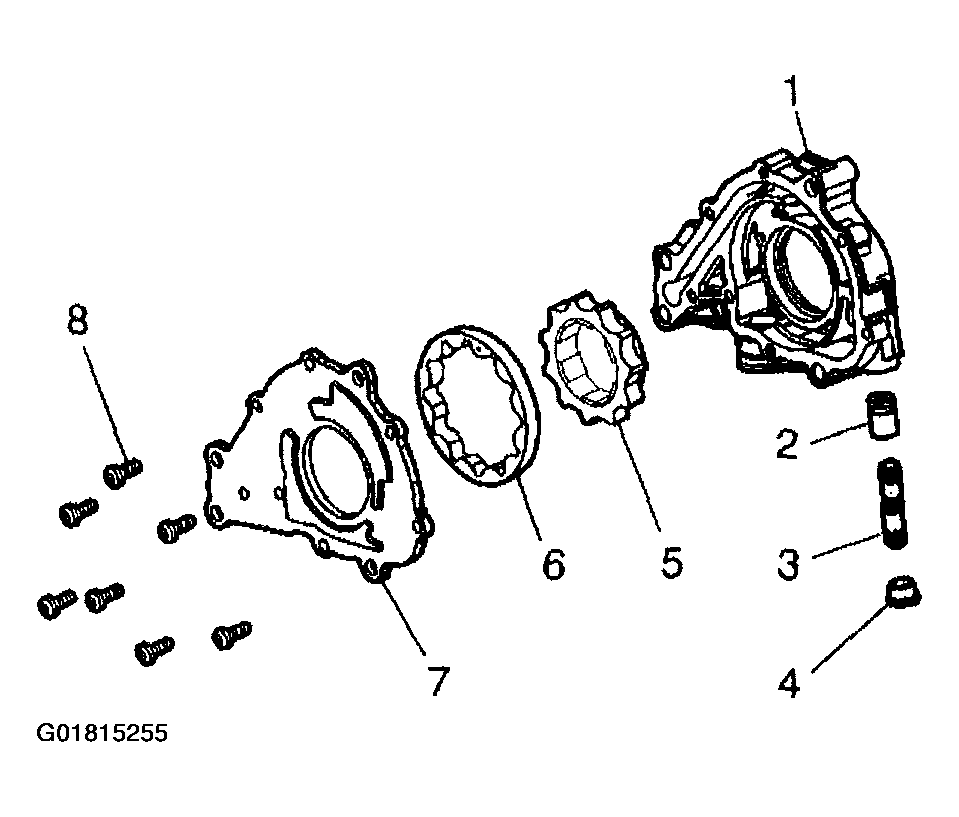

    8. Fig 2: Identifying Oil Pump Components
    G01815255Courtesy of GENERAL MOTORS CORP.
