Oil Pan Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transaxle brace bolts (1, 2).
  2. Remove the transaxle brace.

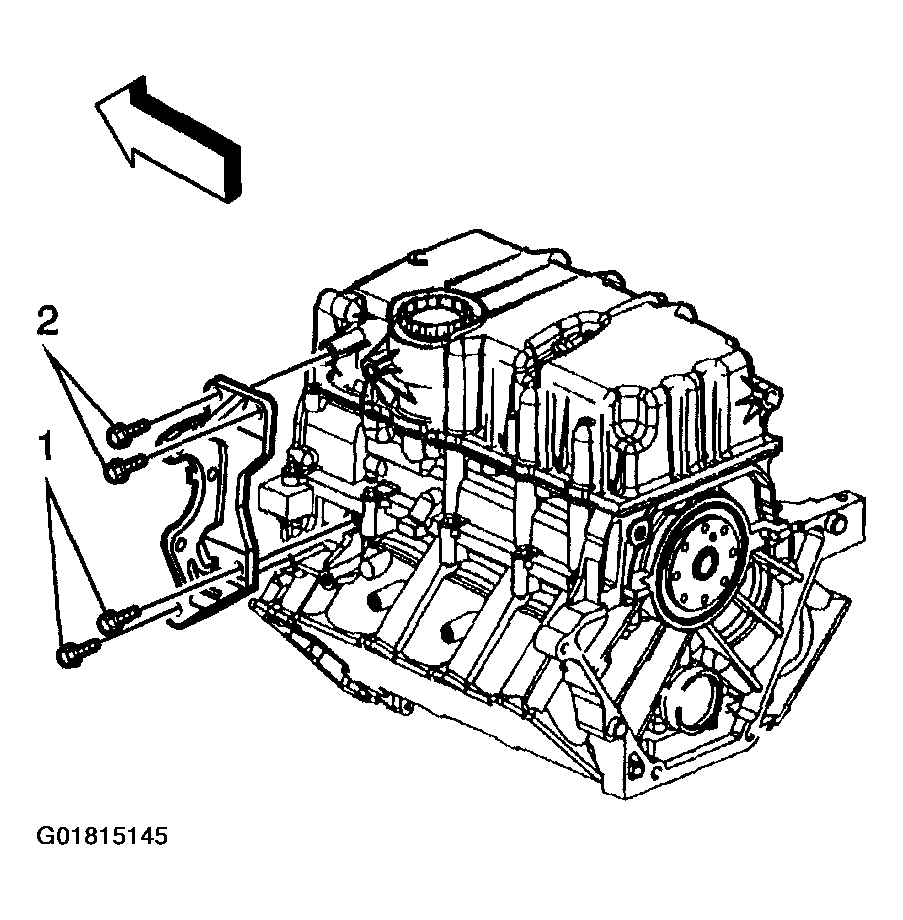

    Fig 1: Removing Transaxle Brace
    G01815145Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil pan bolts.
  4. Lift the oil pan from the lower crankcase.

    Important:  DO NOT damage the sealing surface.

  5. Remove the oil pan gasket. Scrape any remaining gasket material from the pan rail surfaces.

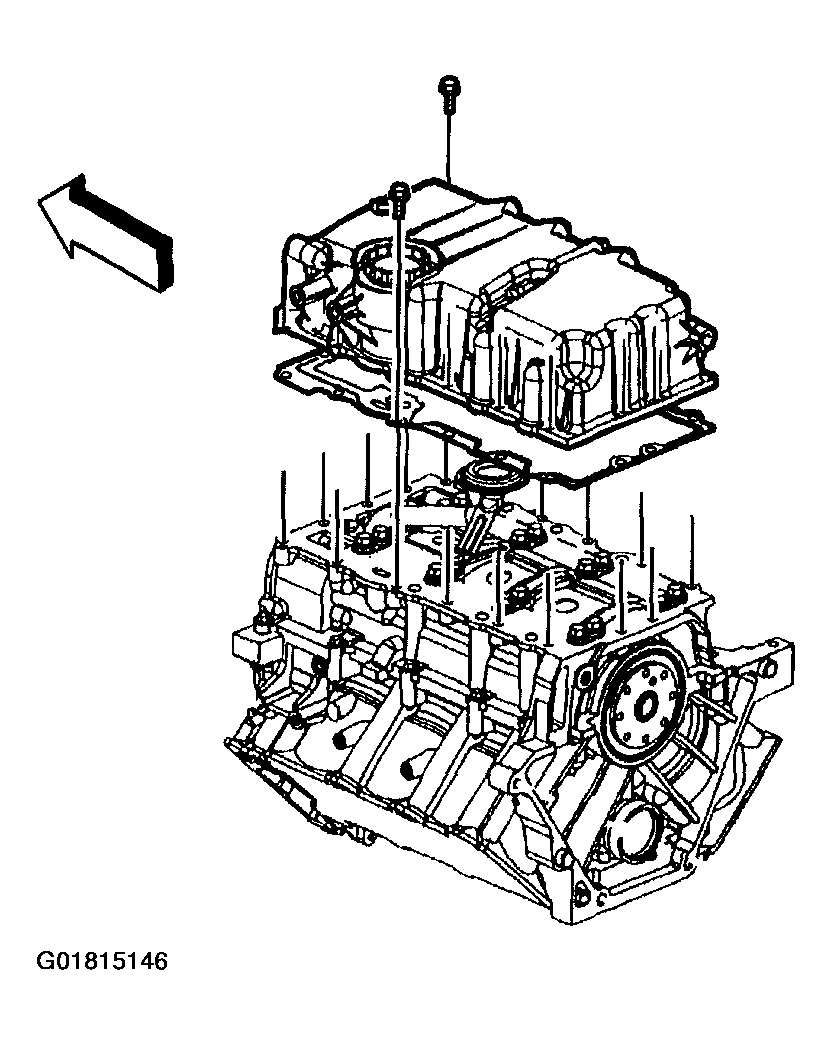

    Fig 2: Removing Oil Pan & Gasket
    G01815146Courtesy of GENERAL MOTORS CORP.
  6. Remove the oil level sensor bolt.
  7. Remove the oil level sensor.
  8. Remove and discard the oil level sensor O-ring.

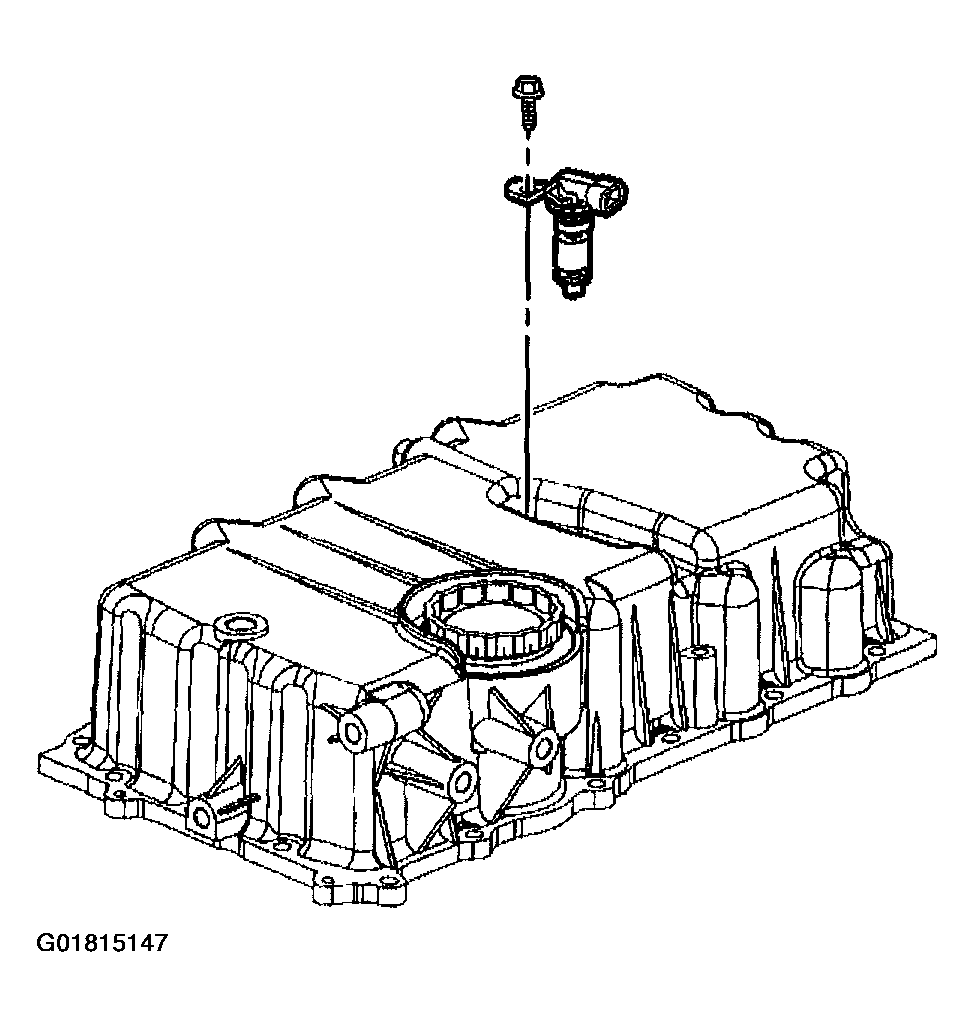

    Fig 3: Removing Oil Level Sensor
    G01815147Courtesy of GENERAL MOTORS CORP.
