Engine Flywheel Cleaning and Inspection: Inspection
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

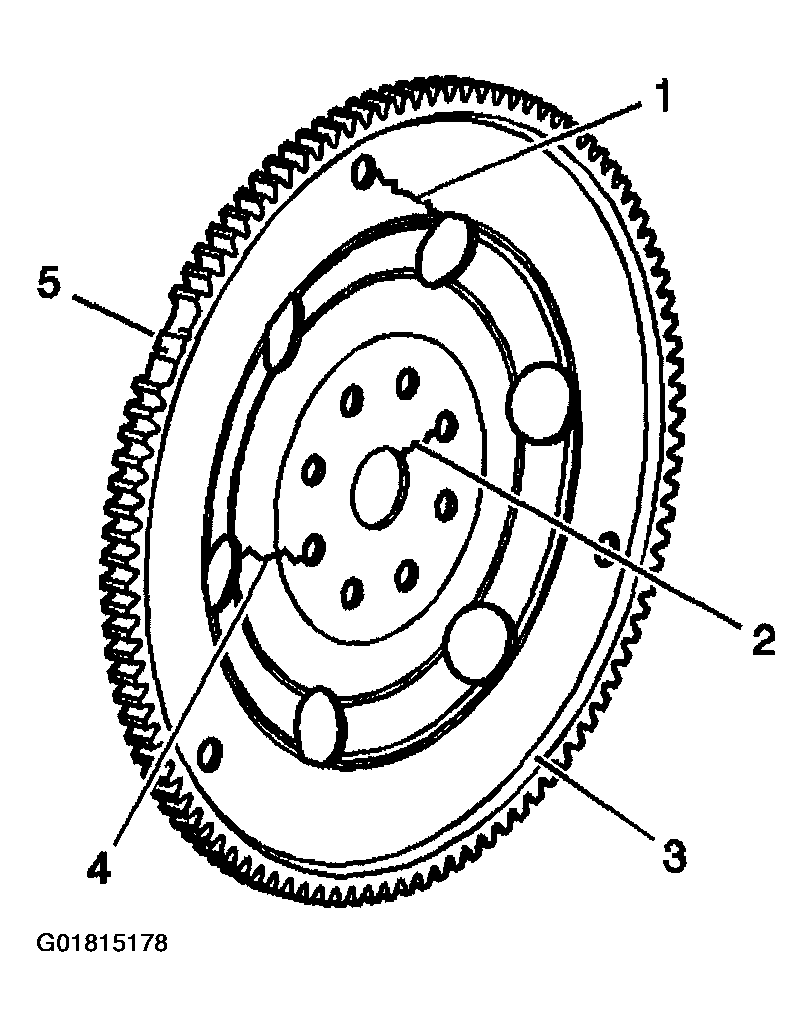

- Inspect the engine flywheel for the following conditions:
- Stress cracks around the engine flywheel-to-torque converter mounting bolt hole locations (1) and/or engine flywheel-to-crankshaft (2, 4)
Important: Do not attempt to repair the ring gear. Install a new engine flywheel.
- Cracks next to the ring gear (3)
- Damaged or missing ring gear teeth (5)
- Stress cracks around the engine flywheel-to-torque converter mounting bolt hole locations (1) and/or engine flywheel-to-crankshaft (2, 4)
- Replace the engine flywheel as necessary.
