Tools Required

• J 36660-A  Torque Angle Meter
• J 43032  Crankshaft Socket

Important:  Ensure that the crankshaft is in the TDC position using the J 43032.

1. Ensure the cylinder head locating pins are securely mounted in the cylinder block deck face.
2. Install a new right cylinder head gasket using the deck face locating pins for retention.

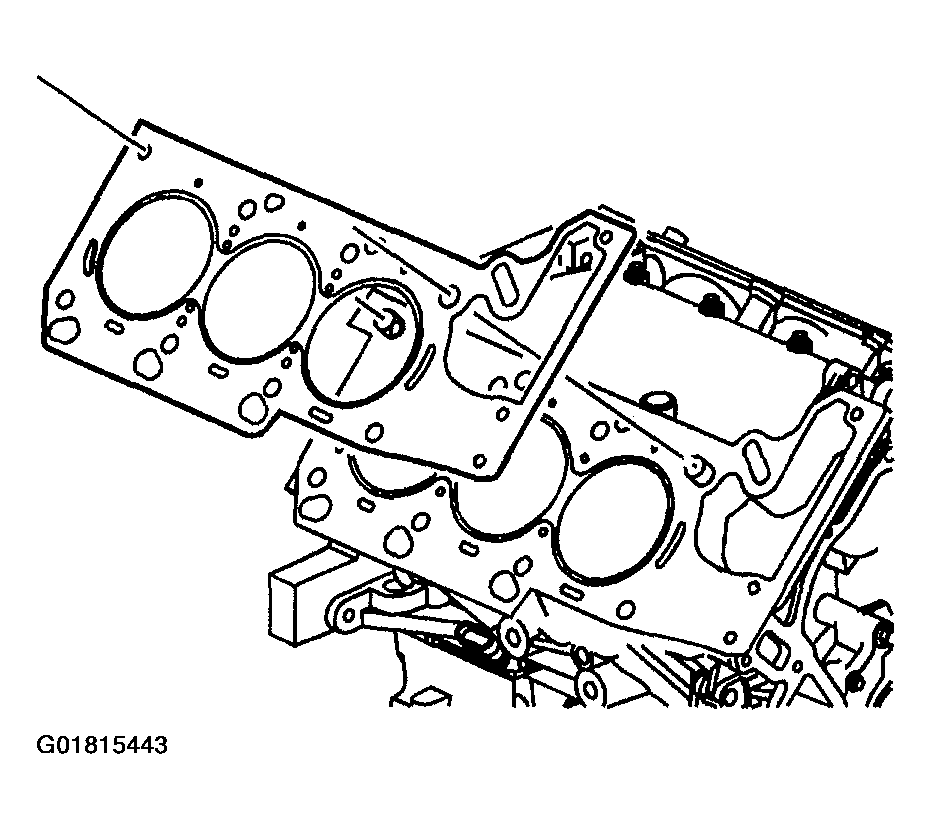

   Fig 1: Installing New Right Cylinder Head Gasket

   Courtesy of GENERAL MOTORS CORP.
3. Align the right cylinder head with the deck face locating pins.
4. Place the right cylinder head in position on the deck face.

   Important:  DO NOT reuse the old M11 cylinder head bolts.

5. Install new M11 cylinder head bolts (2).
6. Install the M6 cylinder head bolts at the front of the right cylinder head. Install the longer M6 cylinder head bolt (1) in the outboard location as shown. Install the two shorter M6 cylinder head bolts (3) in the locations shown.

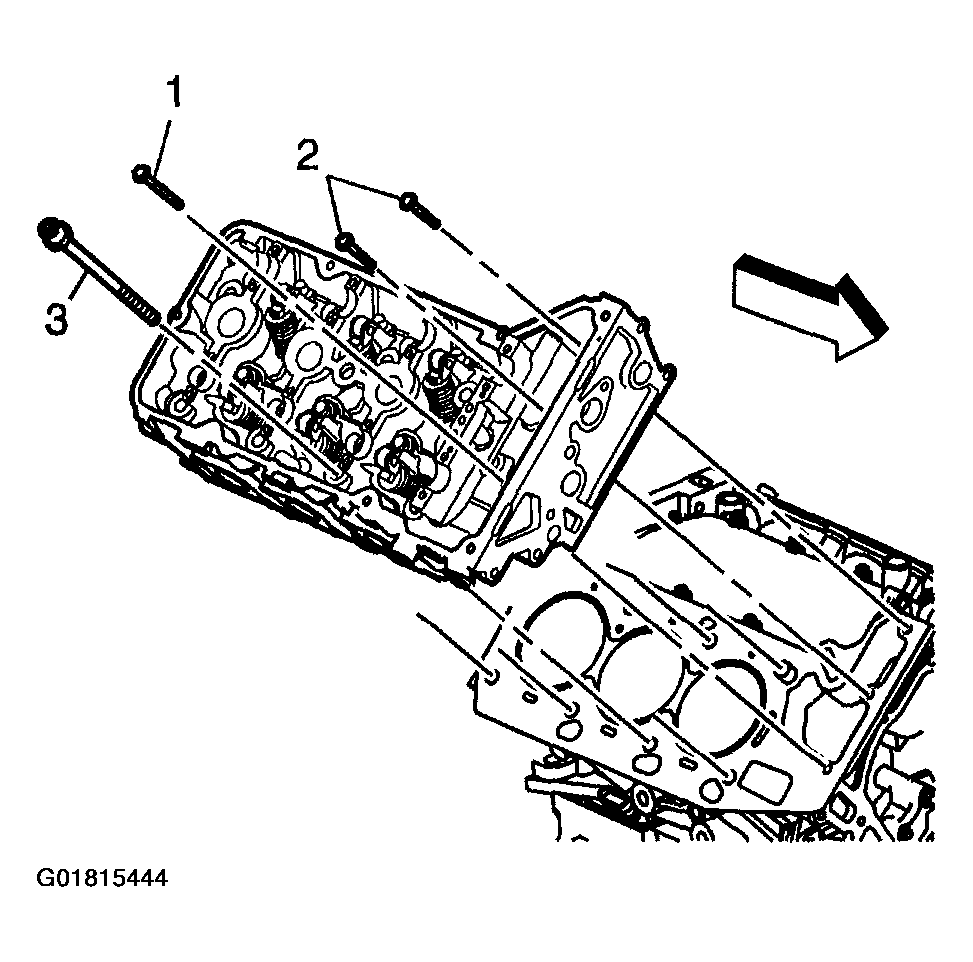

   Fig 2: Installing Right Cylinder Head

   Courtesy of GENERAL MOTORS CORP.
   CAUTION: Refer to in FASTENER NOTICE .
7. Tighten the M11 cylinder head bolts.

   Tighten

   1. 7.1. Tighten the M11 cylinder head bolts a first pass in sequence to 40 N.m (30 ft lbs).
   2. 7.2. Tighten the M11 cylinder head bolts a second pass in sequence an additional 100 degrees using the J 36660-A.
   3. 7.3. Tighten the M11 cylinder head bolts a final pass in sequence an additional 100 degrees, 200 degrees total, using the J 36660-A.

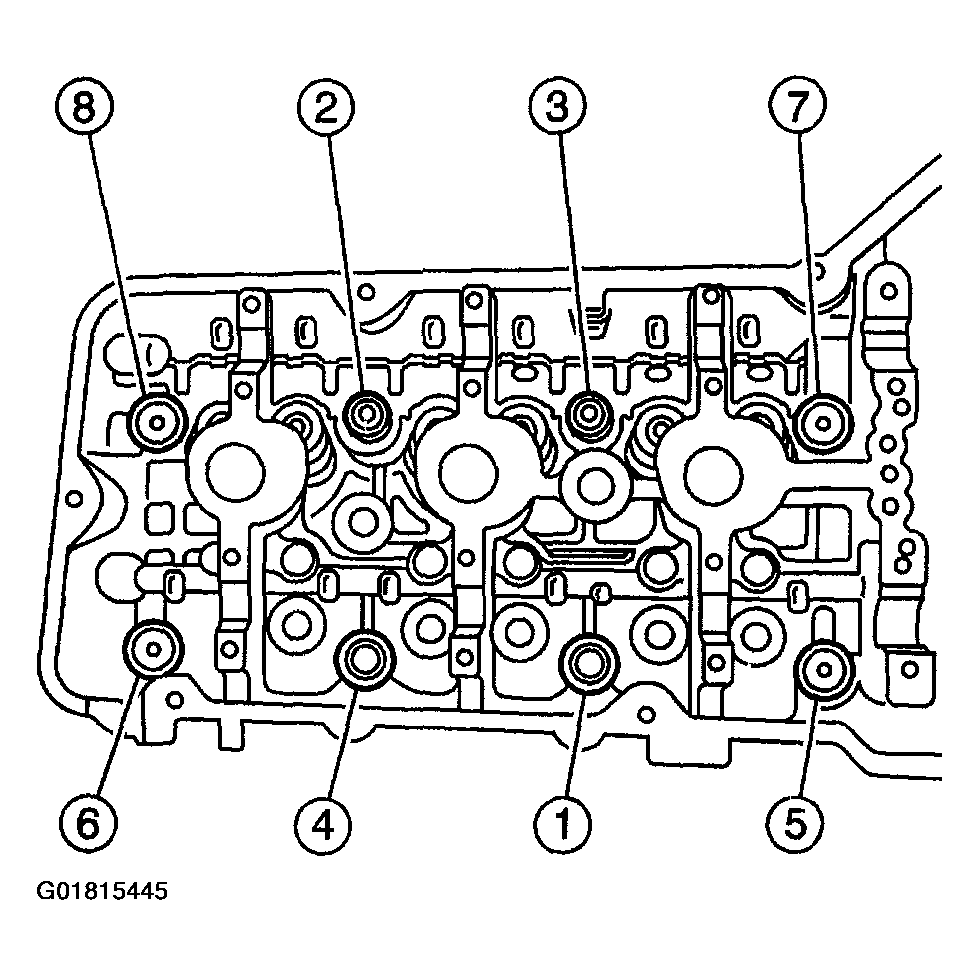

   Fig 3: Identifying Right Cylinder Head Bolt Tightening Sequence

   Courtesy of GENERAL MOTORS CORP.
8. Tighten the long M6 cylinder head bolt (2).

   Tighten

   Tighten the long M6 cylinder head bolt to 12 N.m (106 in lbs).

9. Tighten the two shorter M6 cylinder head bolts (1).

   Tighten

   Tighten the two shorter M6 cylinder head bolts to 12 N.m (106 in lbs).

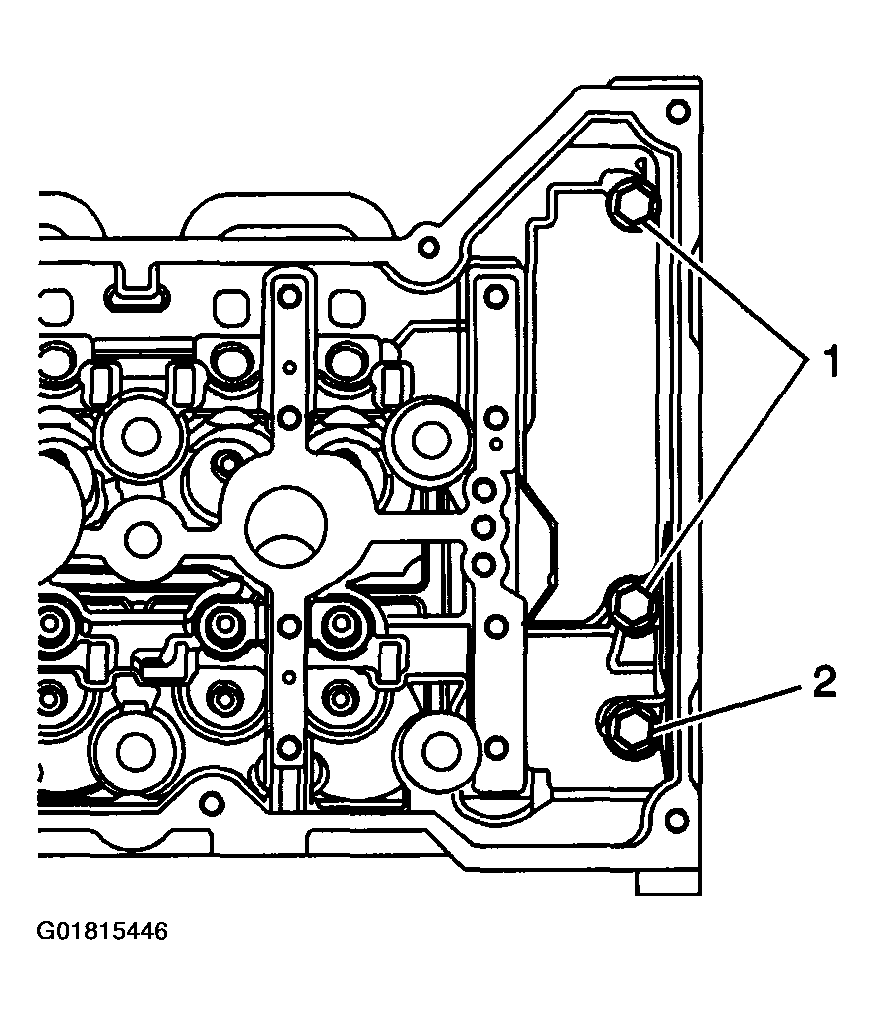

   Fig 4: Locating M6 Right Cylinder Head Bolts

   Courtesy of GENERAL MOTORS CORP.
