Camshaft Cover Disassemble

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Do not reuse the camshaft cover gasket and seals.

  1. Remove and discard the camshaft cover gasket.
  2. Remove and discard the spark plug port seals.
  3. Remove and discard the ignition module ground/RFI spring port seal.

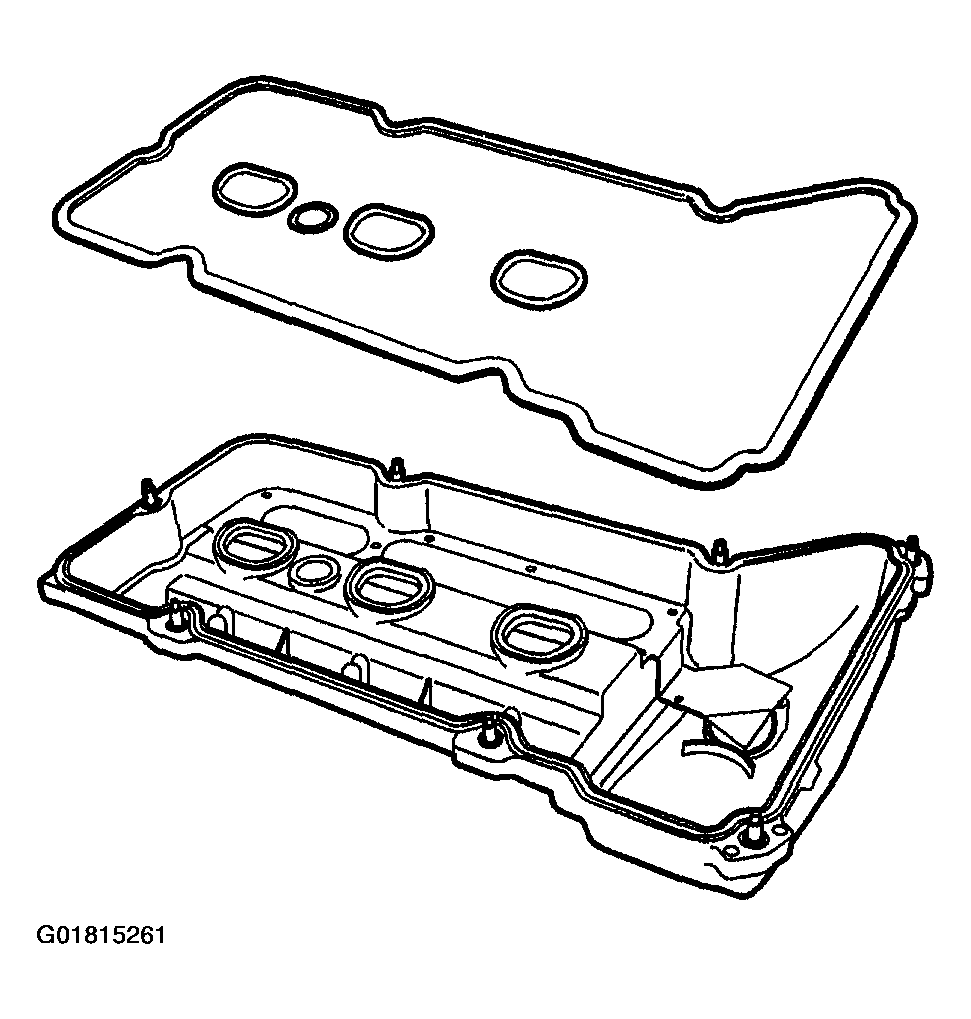

    Fig 1: Removing Camshaft Cover Gasket
    G01815261Courtesy of GENERAL MOTORS CORP.
  4. Remove the camshaft cover bolts.
  5. Remove the camshaft cover bolt grommets.
    Fig 2: Removing Camshaft Cover
    G01815262Courtesy of GENERAL MOTORS CORP.
  6. Remove from the left camshaft cover the following:
    • The fuel injector sight shield studs (1)
    • The PCV valve (3)
    • The PCV valve grommet (2)

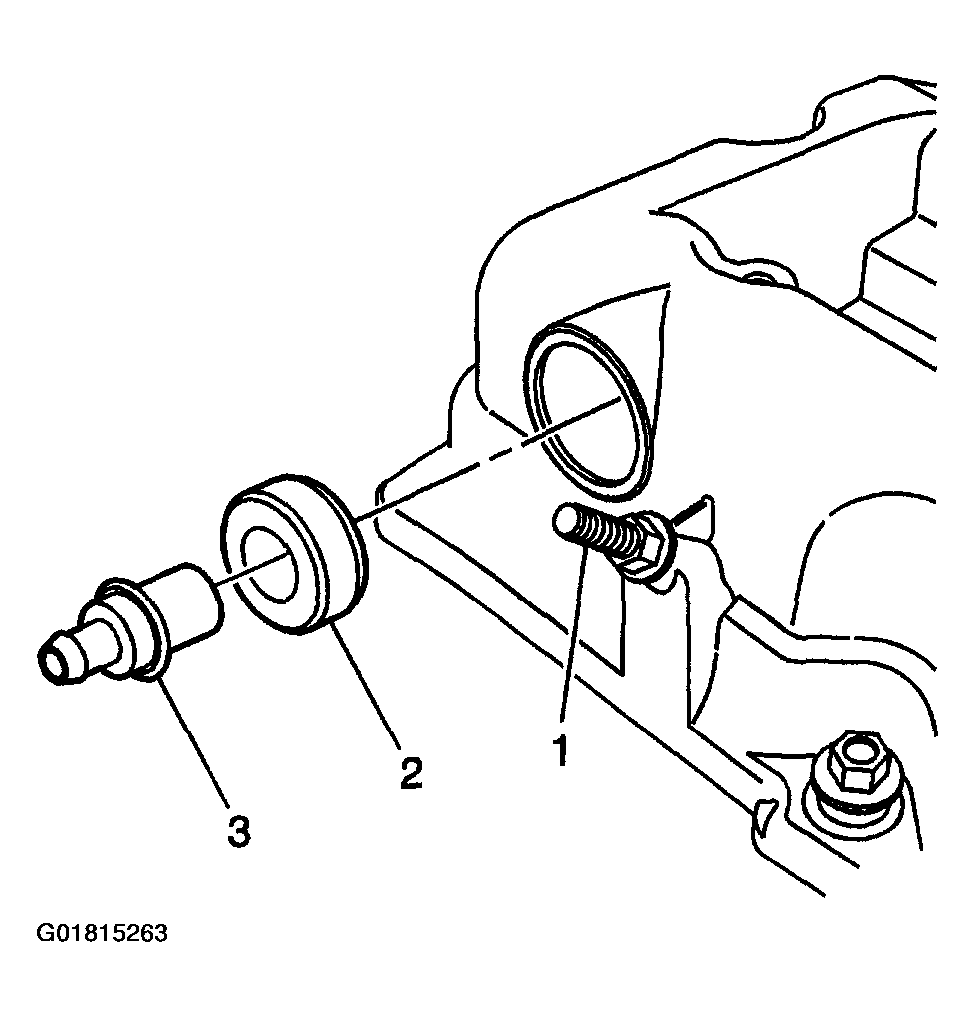

    Fig 3: Removing Fuel Injector Sight Shield Studs, PCV Valve & Grommet
    G01815263Courtesy of GENERAL MOTORS CORP.
