Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the tire and wheel.
  3. Remove the wheel hub and bearing. Refer to Wheel Hub & Bearing Replacement .
  4. Remove the upper ball joint. Refer to Upper Ball Joint Replacement .
  5. Remove the lower ball joint. Refer to Lower Ball Joint Replacement .

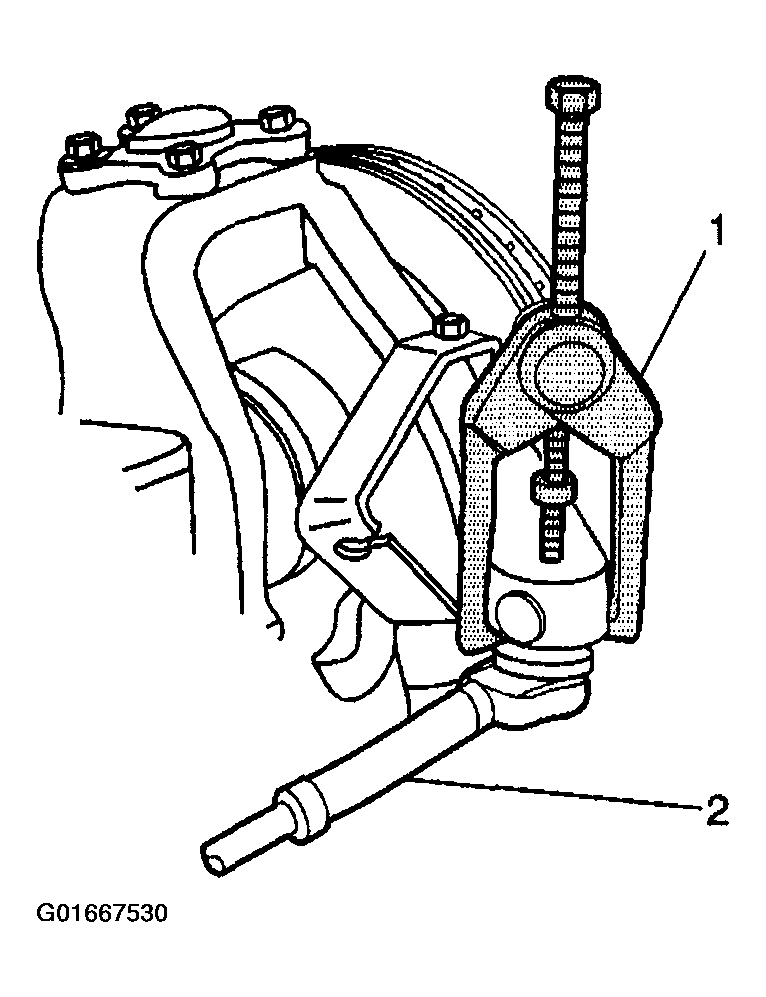

  6. Remove the outer tie rod retaining nut and bracket (2).
  7. Disconnect the outer tie rod from the steering knuckle using the J 24319-B  (1).
    Fig 1: Outer Tie Rod
    G01667530Courtesy of GENERAL MOTORS CORP.

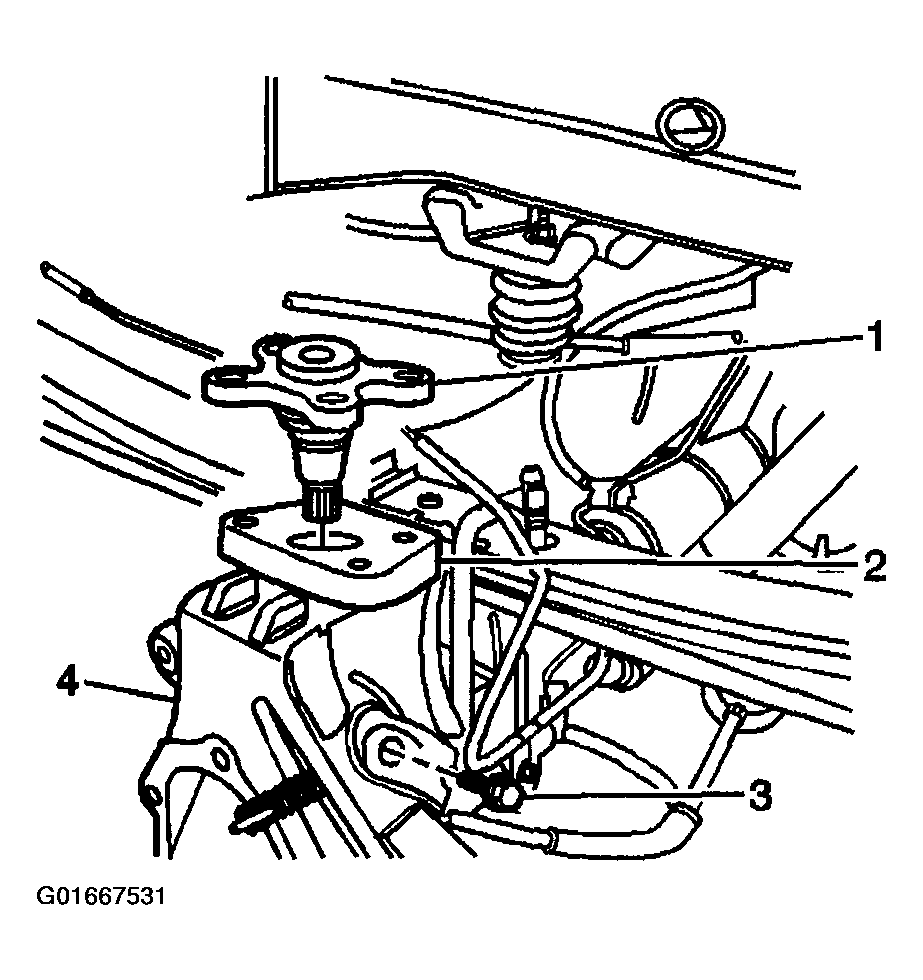

  8. Remove the park brake cable retaining bolt (3) from the steering knuckle.
    Fig 2: Park Brake Cable Retaining Bolt At Steering Knuckle
    G01667531Courtesy of GENERAL MOTORS CORP.

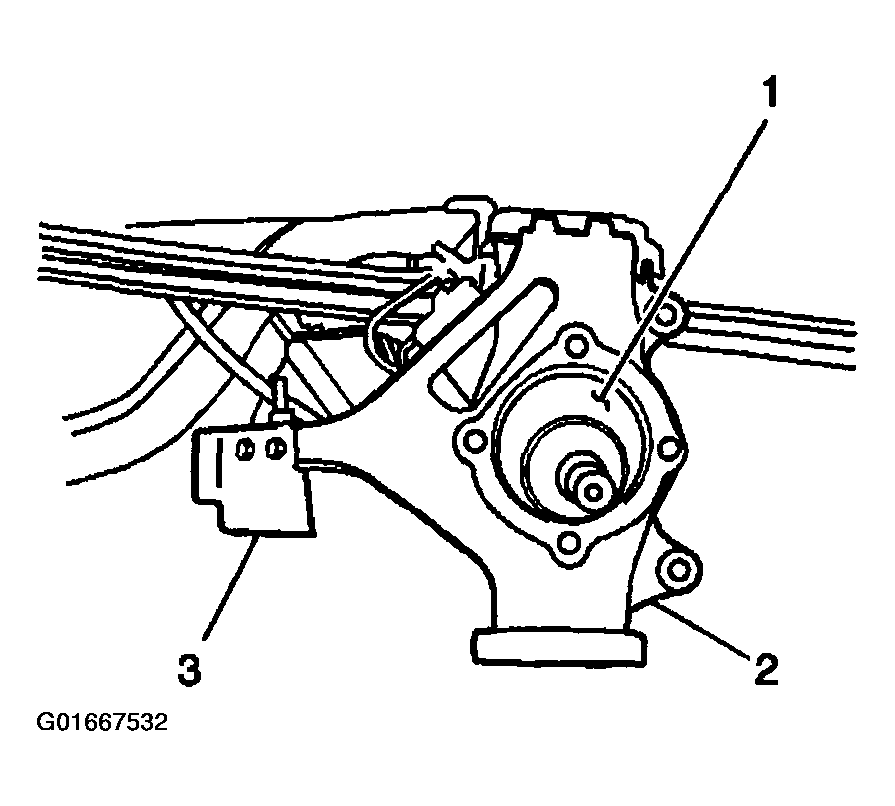

  9. Remove the steering knuckle (2) from the vehicle.
    Fig 3: Steering Knuckle
    G01667532Courtesy of GENERAL MOTORS CORP.
