Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the spare tire from the vehicle.

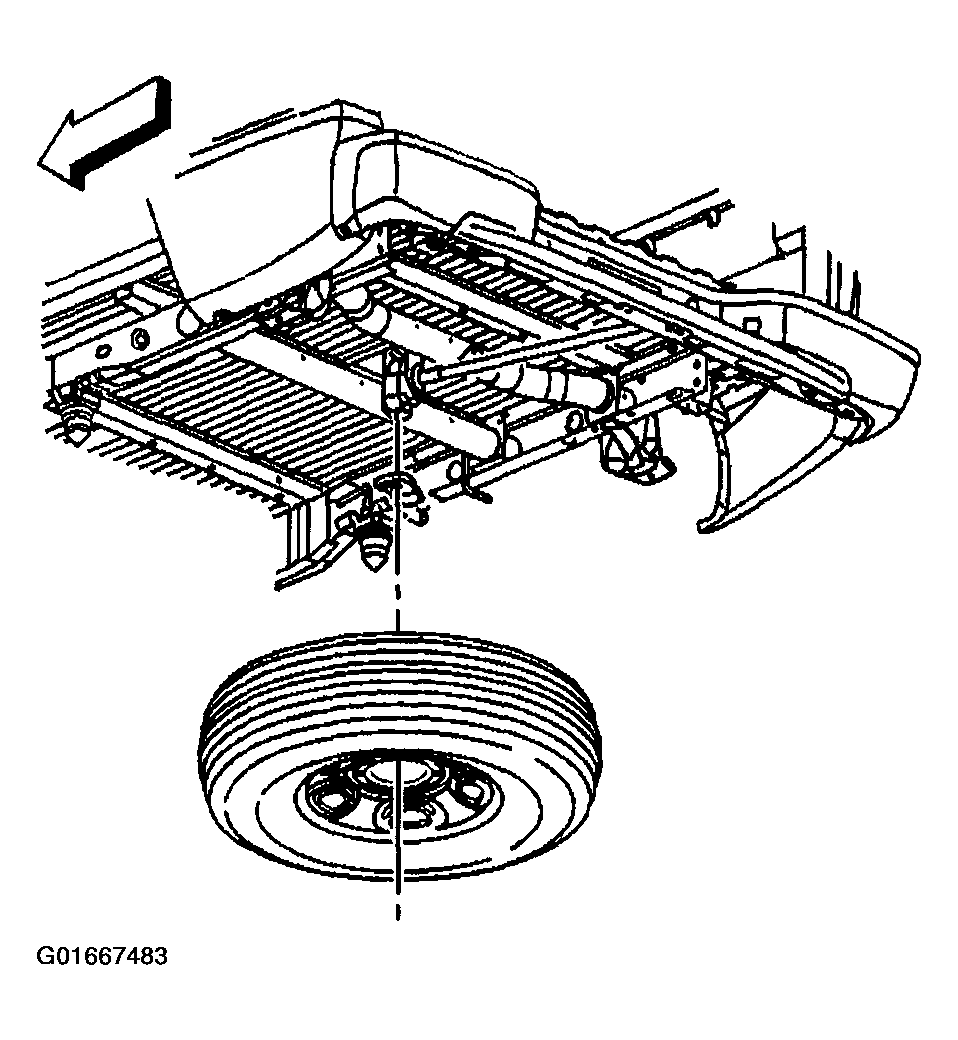

    Fig 1: Locating Spare Tire
    G01667483Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts (1) retaining the steering gear motor (2) to the steering gear.
  4. Remove the steering gear motor from the steering gear.
  5. Cover the steering gear motor opening to keep contamination out of the oil in the planetary gear assembly.

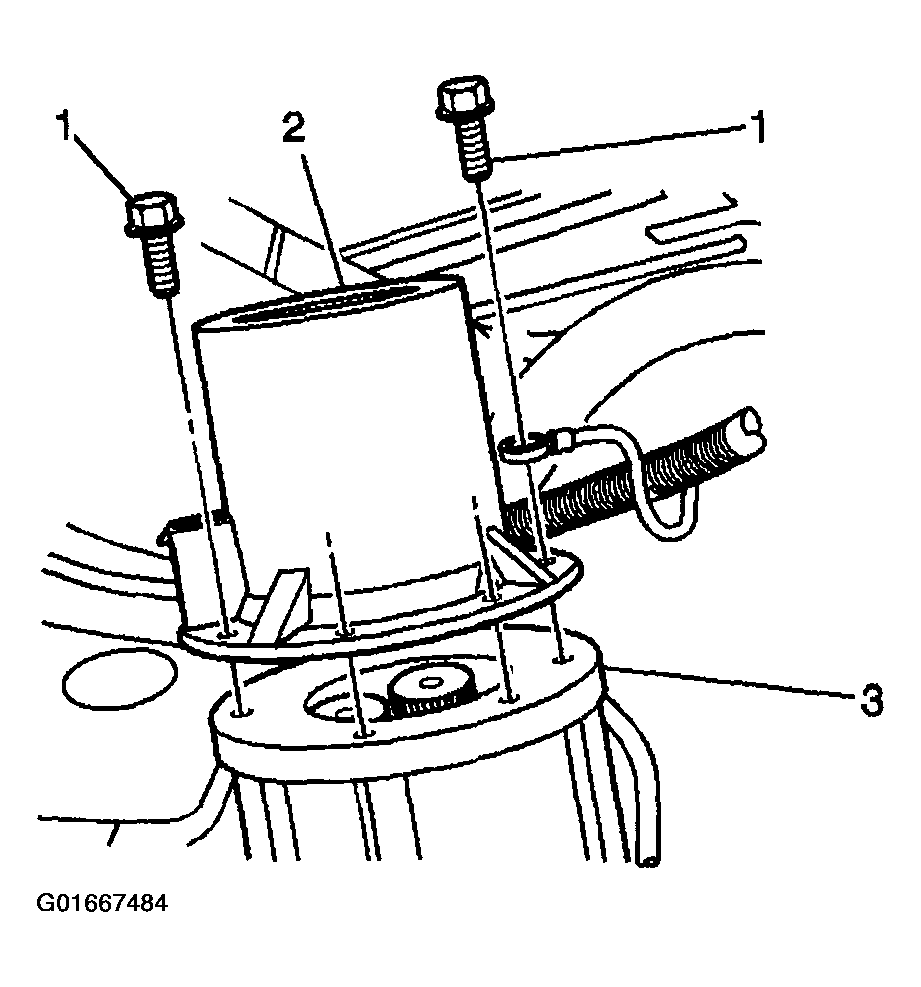

    Fig 2: Steering Gear Motor
    G01667484Courtesy of GENERAL MOTORS CORP.
  6. Remove the wiring harness from the retaining clips.
  7. Disconnect the wiring harness from the control module (2).

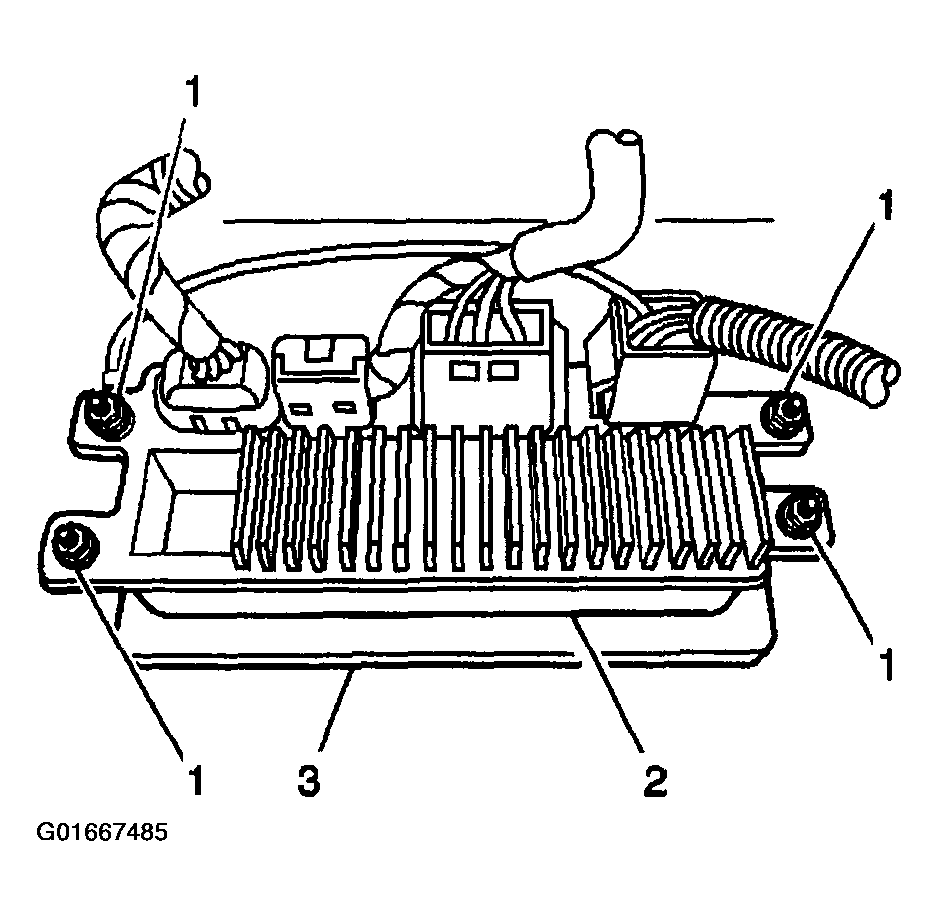

    Fig 3: Control Module
    G01667485Courtesy of GENERAL MOTORS CORP.
  8. Disconnect the electrical connector (1) from the rear position sensor.

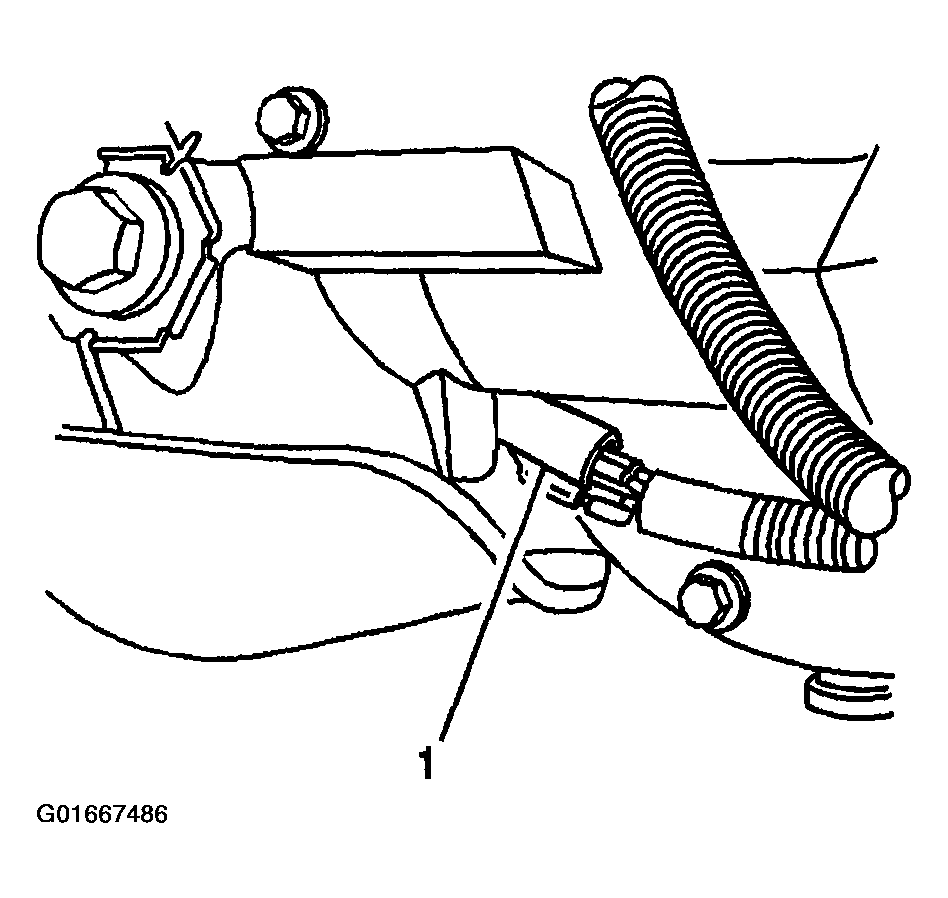

    9. Fig 4: Rear Position Sensor Electrical Connector
    G01667486Courtesy of GENERAL MOTORS CORP.
  9. Remove the steering gear motor and wiring harness from the vehicle.
