Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dash trim bezel.
  2. Grasp the rear wheel steering mode switch housing (2) and pull outward to remove the switch assembly.

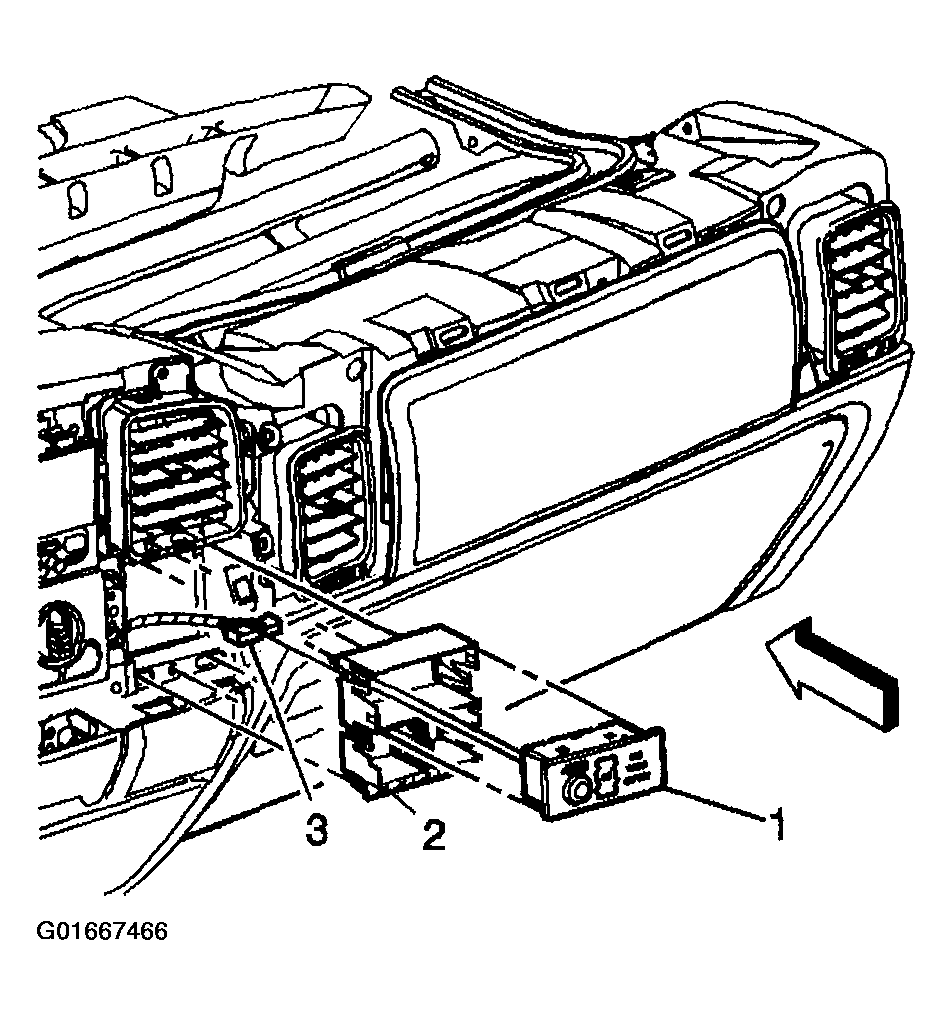

    3. Fig 1: Rear Wheel Steering Mode Switch Housing
    G01667466Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector (3) from the rear wheel steering mode switch.
  4. Remove the rear wheel steering mode switch assembly (1) from the vehicle.
